Diagram image not available

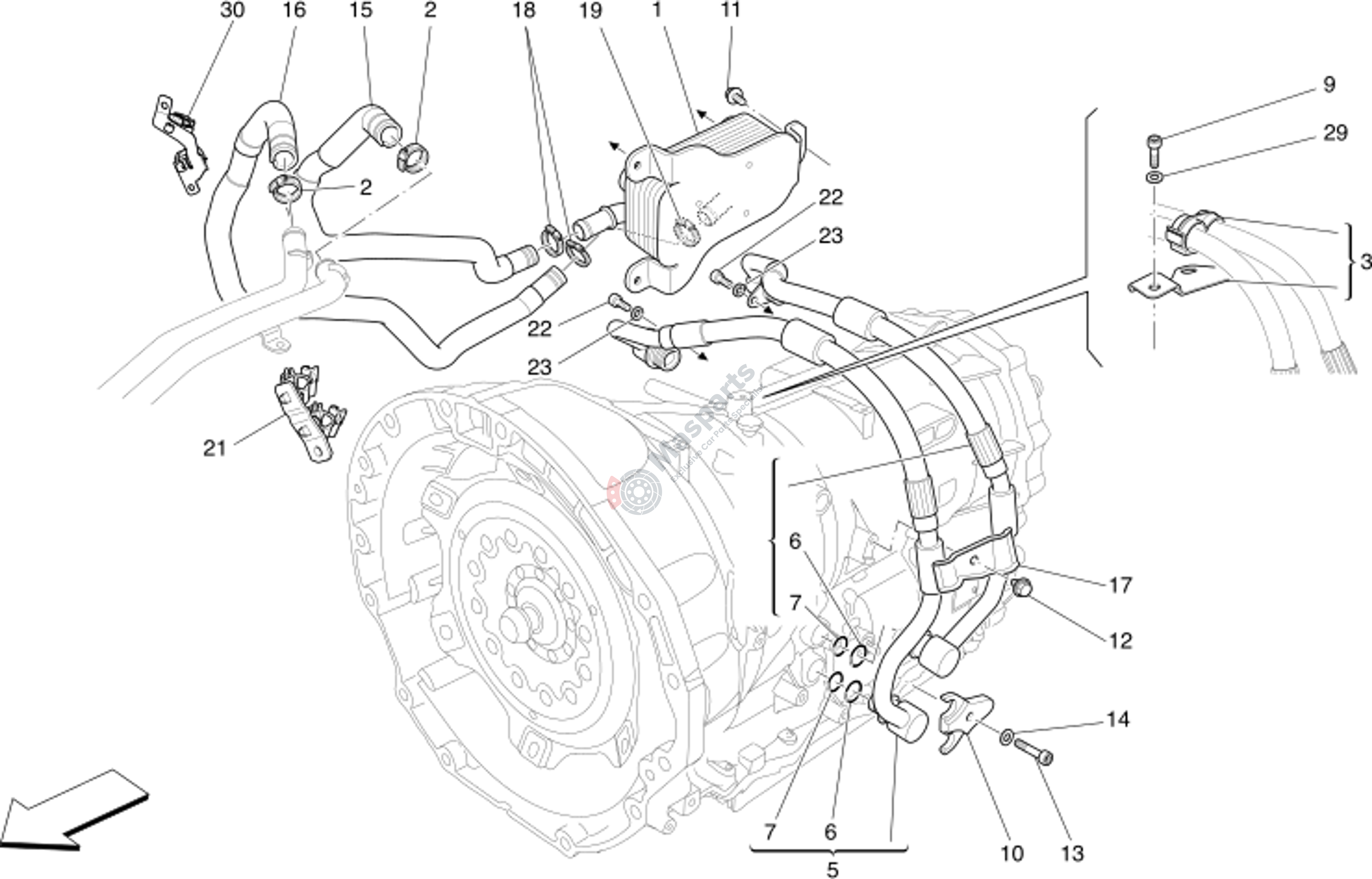

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670034967 | Gear Box Oil Exchanger |
$188.40 |
|
|
| 2 | M-675000319 | Clip |
$9.47 |
|
|
| 3 | M-670034963 | Gearbox Oil Flex Hose Fixing |
$37.65 |
|
|
| 5 | M-670218189 | Inlet Gearbox Oil Cooling Fl |
$204.01 |
|
|
| 7 | M-670003311 | O-R Gasket |
$1.14 |
|
|
| 9 | M-675000191 | Screw |
$2.02 |
|
|
| 10 | M-670002255 | Oil Pipes Mounting Bracket |
$10.88 |
|
|
| 11 | M-675000365 | Screw |
$2.66 |
|
|
| 12 | M-675000102 | Screw |
$2.65 |
|
|
| 13 | M-675000085 | Screw |
$2.08 |
|
|
| 14 | M-675000099 | Washer |
$1.81 |
|
|
| 15 | M-670005465 | Return Flex.Hose From W/O He |
$40.82 |
|
|
| 16 | M-670005466 | Water Inlet Flex.Hose To Wat |
$46.39 |
|
|
| 17 | M-670003083 | Bracket |
$8.14 |
|
|
| 18 | M-675000372 | Strap Collar |
$1.80 |
|
|
| 19 | M-675000658 | Snap Collar |
$5.60 |
|
|
| 21 | M-294347 | Bracket |
$34.61 |
|
|
| 22 | M-675000191 | Screw |
$2.02 |
|
|
| 23 | M-675000565 | Washer |
$1.12 |
|
|
| 29 | M-675000565 | Washer |
$1.12 |
|
|
| 30 | M-670176506 | Bracket |
$28.49 |
|
