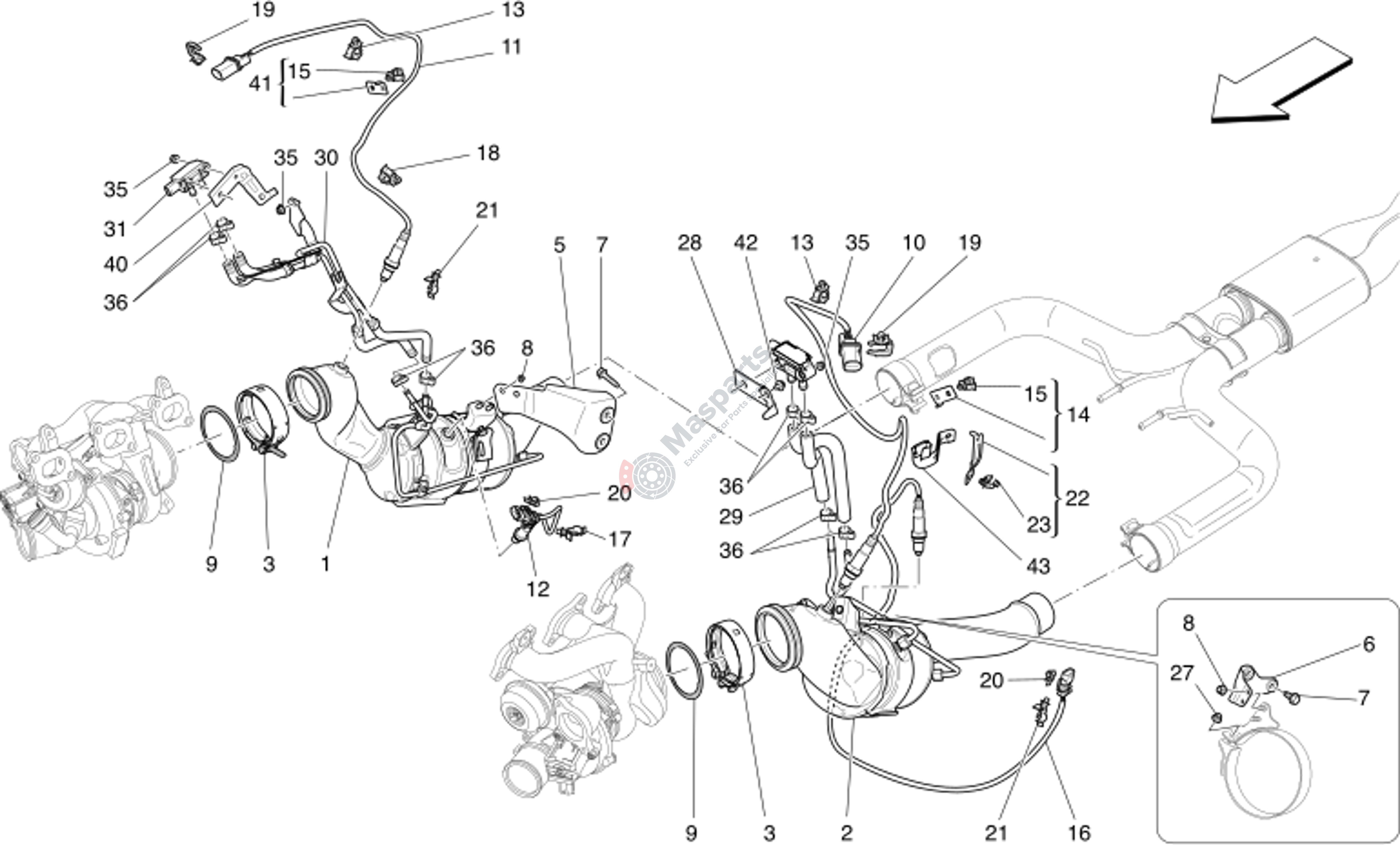

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154296 | Hot-End Gpf Dx |
$2,892.81 |
|
|
| 2 | M-670154297 | Hot-End Gpf Sx |
$13,733.03 |
|
|
| 3 | M-675000060 | Collar |
$29.46 |
|
|
| 5 | M-670153640 | Rh Hot-End Bracket |
$76.35 |
|
|
| 6 | M-670153639 | Lh Hot-End Bracket |
$67.52 |
|
|
| 7 | M-675000397 | Screw |
$9.21 |
|
|
| 8 | M-675000779 | Nut |
$2.85 |
|
|
| 9 | M-675000052 | Gasket |
$8.60 |
|
|
| 10 | M-670214727 | Front Lambda Sensor |
$122.49 |
|
|
| 11 | M-670104046 | Lambda Sensor |
$123.47 |
|
|
| 12 | M-670107391 | Rear Lambda Sensor |
$135.33 |
|
|
| 13 | M-670005126 | Clip |
$1.11 |
|
|
| 14 | M-670002259 | Bracket |
$6.76 |
|
|
| 15 | M-675000134 | Clip |
$5.99 |
|
|
| 16 | M-46335923 | Lower Lambda Sensor |
$90.87 |
|
|
| 17 | M-675000143 | Clip |
$0.98 |
|
|
| 18 | M-670003739 | Clip |
$2.48 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.72 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.72 |
|
|
| 21 | M-675000143 | Clip |
$0.98 |
|
|
| 22 | M-670039620 | Bracket |
$5.75 |
|
|
| 27 | M-675000779 | Nut |
$2.85 |
|
|
| 28 | M-670153723 | Bracket |
$14.70 |
|
|
| 29 | M-670153391 | Pipe Exhaust Gas Pressure Se |
$112.28 |
|
|
| 30 | M-670153390 | Pipe Exhaust Gas Pressure Se |
$112.28 |
|
|
| 31 | M-670175163 | Pressure Sensor |
$127.43 |
|
|
| 35 | M-675000181 | Nut |
$1.49 |
|
|
| 36 | M-675000369 | Strap Collar |
$1.70 |
|
|
| 40 | M-670109785 | Pressure Sensor Bracket |
$18.39 |
|
|
| 41 | M-670002259 | Bracket |
$6.76 |
|
|
| 42 | M-675000102 | Screw |
$2.65 |
|
|
| 43 | M-670156152 | Bracket |
$14.62 |
|
