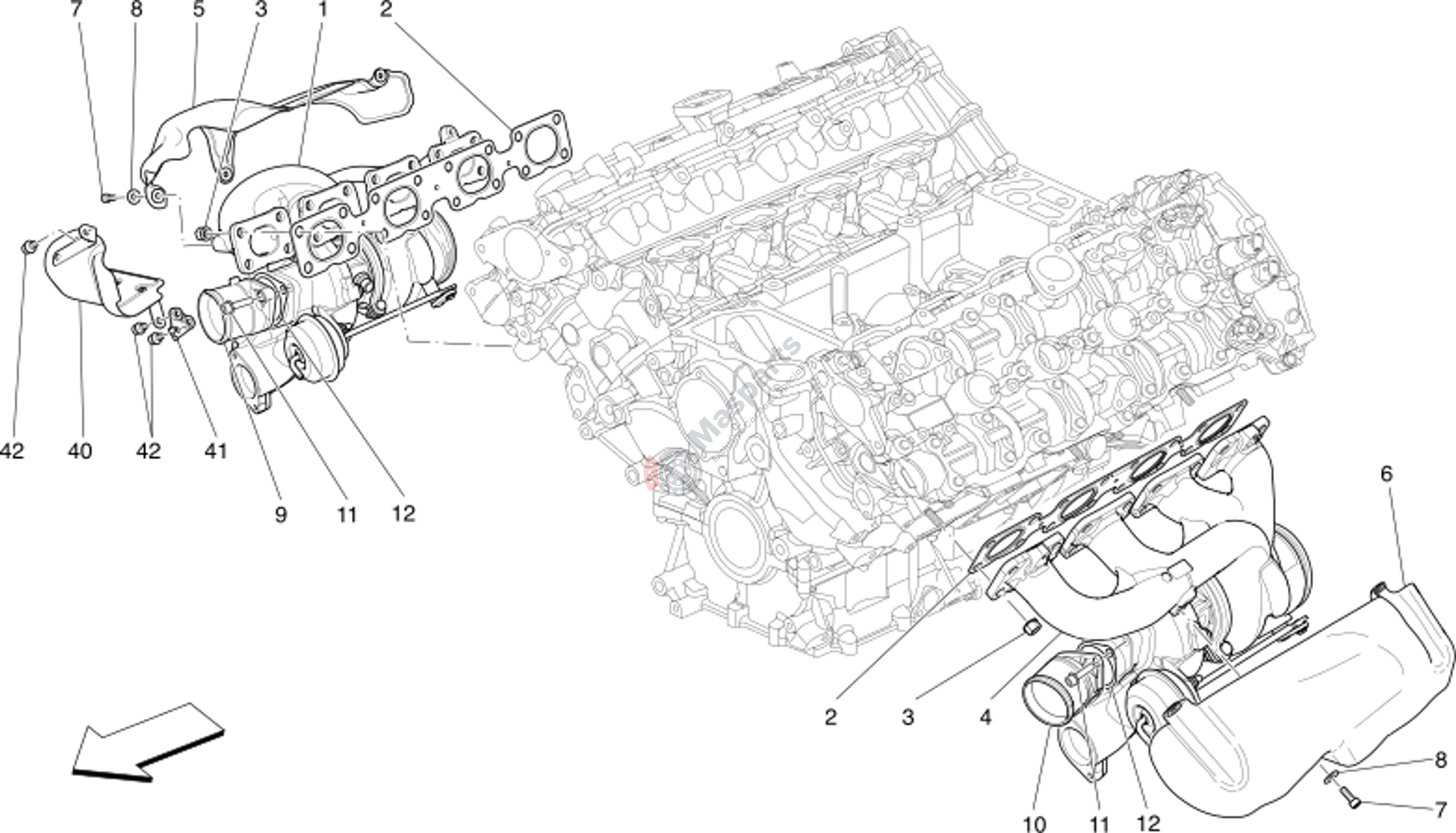

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-743834 | Rh Turbocharger |
$6,162.13 |
|
|
| 2 | M-292736 | Gasket |
$76.81 |
|
|
| 3 | M-210971 | S-Lock.Thread.Flanged Hex.Nu |
$5.34 |
|
|
| 4 | M-743835 | Lh Turbocharger |
$5,760.73 |
|
|
| 5 | M-670104134 | Rh Exhaust Manifold Heat Shi |
$82.44 |
|
|
| 6 | M-670002874 | Lh Exhaust Manifold Heat Shi |
$81.69 |
|
|
| 7 | M-14305224 | Socket Head Screw M 6X 16 |
$2.25 |
|
|
| 8 | M-675000106 | Washer |
$1.62 |
|
|
| 9 | M-802783 | Compressor Input Flange |
$187.39 |
|
|
| 10 | M-760998 | Compressor Input Flange |
$149.70 |
|
|
| 11 | M-231619 | Socket Head Screw With Washe |
$2.42 |
|
|
| 12 | M-330933 | Compressor Gasket |
$30.36 |
|
|
| 40 | M-790330 | Anti-Heat Shield |
$87.93 |
|
|
| 41 | M-288179 | Bracket |
$6.50 |
|
|
| 42 | M-233600 | Screw |
$2.32 |
|
