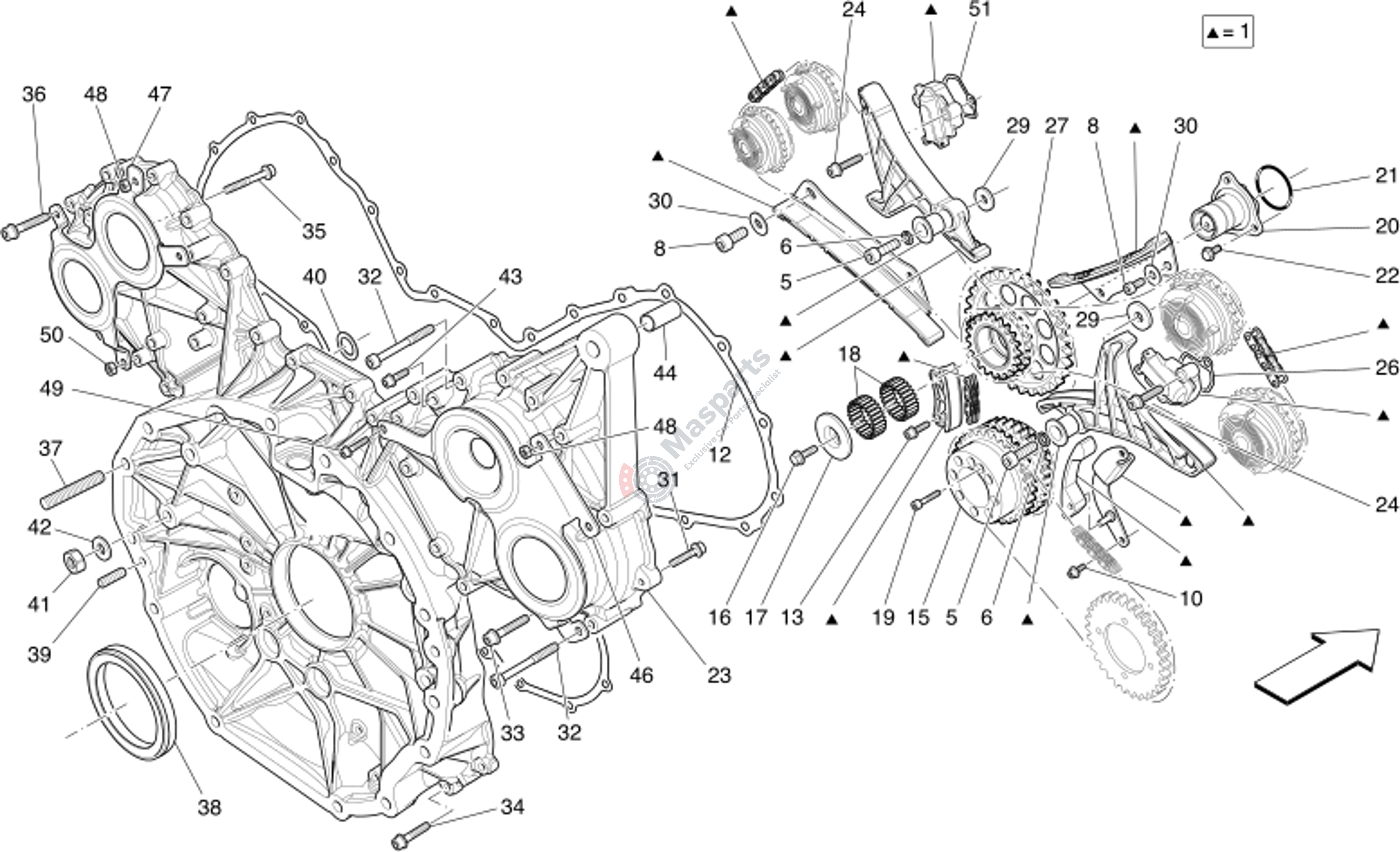

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-807534 | Timing Control Assembly |
$872.93 |
|
|
| 6 | M-284900 | Washer |
$2.23 |
|
|
| 8 | M-14302821 | Screw |
$2.11 |
|
|
| 12 | M-312860 | Gasket V8 Engine Timing Cove |
$168.37 |
|
|
| 13 | M-282396 | Screw |
$2.97 |
|
|
| 15 | M-286222 | Crankshaft Terminal Gear |
$394.36 |
|
|
| 17 | M-304699 | Transmission Toothed Wheel S |
$30.62 |
|
|
| 18 | M-267808 | Roller Cage |
$20.83 |
|
|
| 19 | M-245914 | Screw |
$2.48 |
|
|
| 20 | M-322199 | Support |
$156.55 |
|
|
| 21 | M-154191 | O-Ring D. 44.17- 8X 100 |
$3.74 |
|
|
| 23 | M-343364 | V8 Engine Timing Cover |
$1,007.69 |
|
|
| 24 | M-282398 | Screw |
$2.97 |
|
|
| 26 | M-322518 | Gasket |
$11.48 |
|
|
| 27 | M-287000 | Transmission Toothed Wheel |
$396.34 |
|
|
| 29 | M-288341 | Washer |
$14.86 |
|
|
| 30 | M-163759 | Washer |
$12.84 |
|
|
| 31 | M-879489 | Bolt M6X30 (M) - M6X10 (M) |
$16.16 |
|
|
| 32 | M-255494 | Screw |
$3.06 |
|
|
| 33 | M-231623 | Socket Head Screw With Washe |
$1.13 |
|
|
| 34 | M-231620 | Socket Head Screw With Washe |
$1.65 |
|
|
| 35 | M-231624 | Socket Head Screw With Washe |
$2.85 |
|
|
| 36 | M-231622 | Socket Head Screw With Washe |
$1.14 |
|
|
| 37 | M-13546734 | Stud M10X1.25X20 Stem |
$4.50 |
|
|
| 38 | M-240214 | Crankshaft Stroke Gasket |
$57.28 |
|
|
| 39 | M-10337710 | Pin |
$9.61 |
|
|
| 40 | M-281725 | Gasket |
$2.39 |
|
|
| 41 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.82 |
|
|
| 42 | M-178348 | Machined Washer D.10.2-20X2. |
$3.71 |
|
|
| 43 | M-231616 | Screw |
$2.11 |
|
|
| 44 | M-298694 | Threaded Insert |
$6.71 |
|
|
| 46 | M-670176038 | Soundproofing Cover |
$107.05 |
|
|
| 47 | M-670176039 | Soundproofing Cover |
$94.69 |
|
|
| 48 | M-675000969 | Nut |
$1.00 |
|
|
| 49 | M-675001159 | Screw |
$4.30 |
|
|
| 50 | M-675001166 | Nut |
$2.35 |
|
|
| 51 | M-306440 | Tensioner Gasket |
$6.16 |
|
