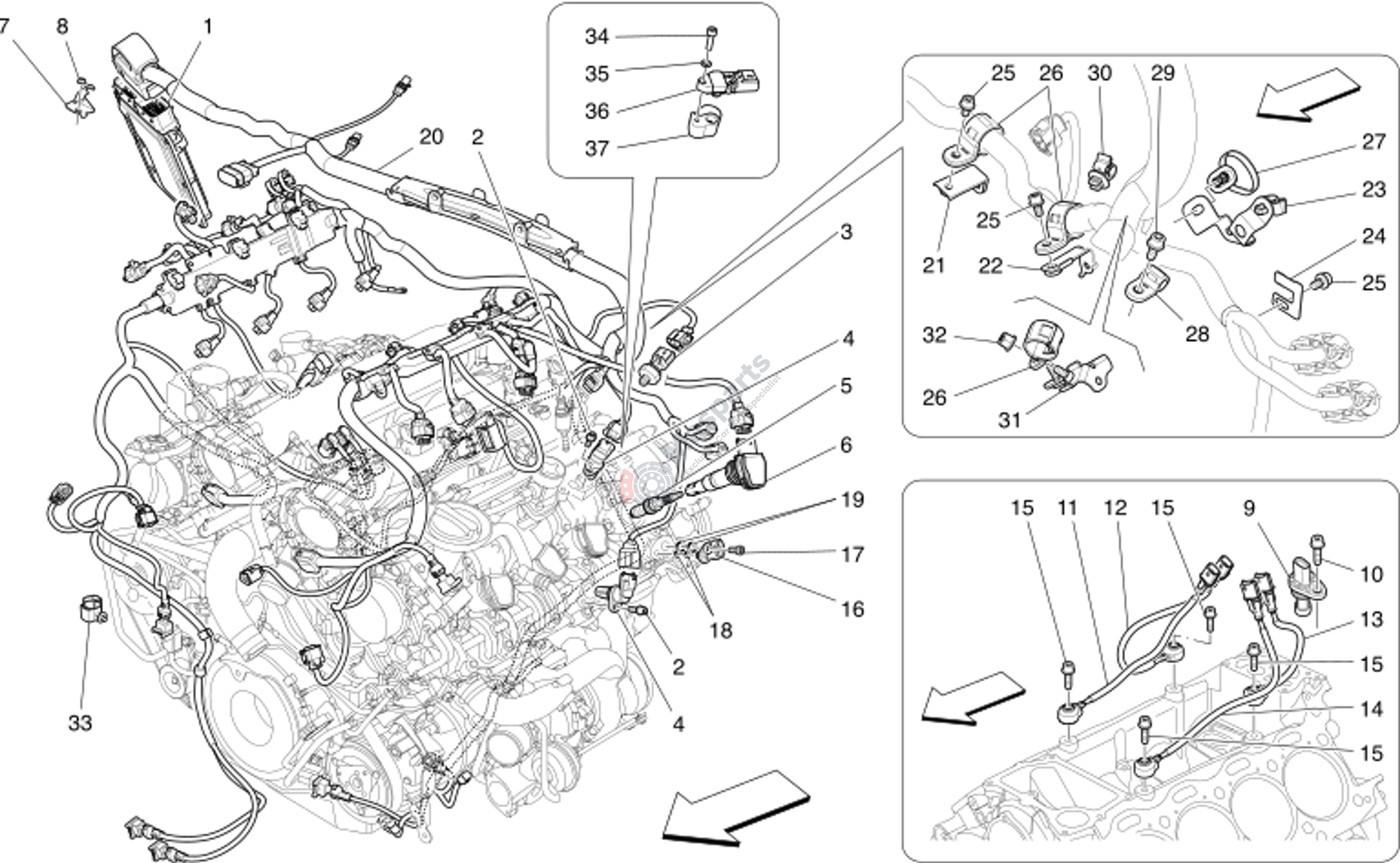

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670217885 | Ignition Control Unit |
$1,290.22 |
|
|
| 2 | M-231617 | Socket Head Screw With Washe |
$2.48 |
|
|
| 3 | M-328660 | Oil Pressure Sensor |
$69.57 |
|
|
| 4 | M-224573 | Timing Sensor |
$51.93 |
|
|
| 5 | M-310235 | Spark Plug |
$23.08 |
|
|
| 6 | M-337712 | Ignition Coil |
$163.41 |
|
|
| 7 | M-670009042 | Control Unit Fixing Bracket |
$9.54 |
|
|
| 9 | M-287273 | Angle Speed Sensor |
$102.26 |
|
|
| 10 | M-231618 | Screw |
$1.14 |
|
|
| 11 | M-772990 | Detonation Sensor 1-2 |
$93.13 |
|
|
| 12 | M-792396 | Detonation Sensor 3-4 |
$82.71 |
|
|
| 13 | M-792397 | Detonation Sensor 5-6 |
$79.90 |
|
|
| 14 | M-792398 | Detonation Sensor 7-8 |
$82.71 |
|
|
| 15 | M-231629 | Socket Head Screw With Washe |
$2.48 |
|
|
| 16 | M-287233 | R.H. Plug |
$14.74 |
|
|
| 17 | M-13026924 | Screw. |
$1.87 |
|
|
| 18 | M-14452781 | O-Ring |
$1.74 |
|
|
| 19 | M-14453281 | O-Ring |
$1.74 |
|
|
| 20 | M-785140 | Injection Cable |
$1,708.26 |
|
|
| 21 | M-260001 | Wiring Fastening Bracket |
$13.19 |
|
|
| 22 | M-290065 | Wiring Fastening Bracket |
$26.08 |
|
|
| 23 | M-293624 | Wiring Fastening Bracket Wit |
$38.09 |
|
|
| 24 | M-175856 | Bracket For Front Lambda |
$4.61 |
|
|
| 25 | M-233600 | Screw |
$2.38 |
|
|
| 26 | M-244225 | Clip |
$5.86 |
|
|
| 27 | M-10901087 | Clamp |
$3.74 |
|
|
| 28 | M-244218 | Clip |
$8.19 |
|
|
| 29 | M-231616 | Screw |
$2.11 |
|
|
| 30 | M-288849 | Cables Retaining Clip |
$38.22 |
|
|
| 31 | M-295730 | Wiring Fastening Bracket |
$33.18 |
|
|
| 32 | M-228265 | Nut |
$2.62 |
|
|
| 33 | M-670102033 | Vent Pipe Retaining Clip Cc4 |
$3.87 |
|
|
| 34 | M-14358524 | Screw |
$2.48 |
|
|
| 35 | M-13577724 | Split Washer D.5.15-15X1.2 |
$1.74 |
|
|
| 36 | M-871810 | Blow By Pressure Sensor |
$130.33 |
|
|
| 37 | M-952985 | Blow-By Pressure Sensor Bloc |
$33.66 |
|
