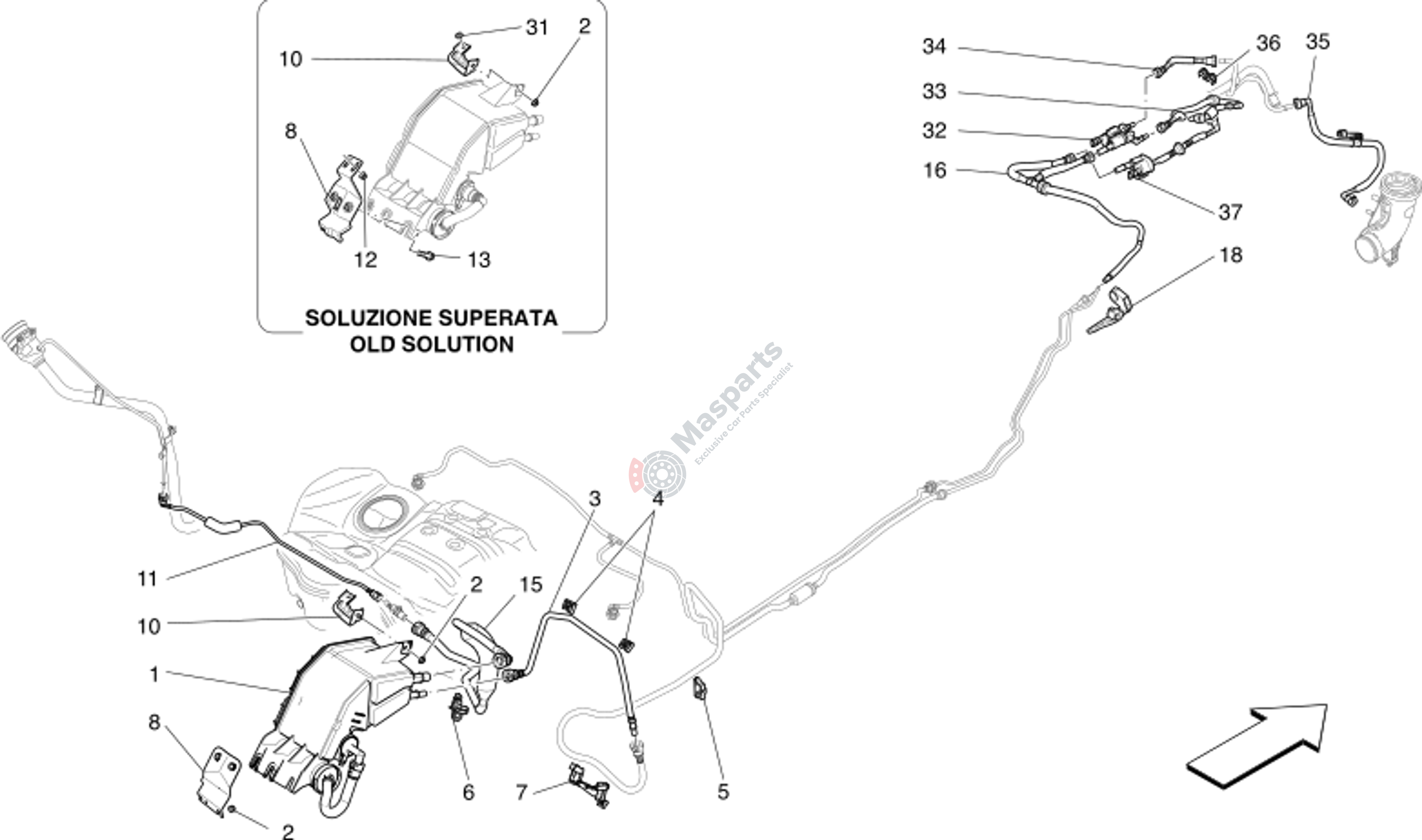

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102642 | Fuel Vapour Filter |
$181.52 |
|
|
| 2 | M-675000095 | Nut |
$0.78 |
|
|
| 3 | M-670175038 | Fuel Pipe |
$35.85 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-670033279 | Clip |
$2.84 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.18 |
|
|
| 7 | M-670106064 | Clip |
$3.22 |
|
|
| 10 | M-670036933 | Canister Bracket |
$25.29 |
|
|
| 11 | M-670005215 | Flex.Hose |
$28.61 |
|
|
| 12 | M-675000095 | Nut |
$0.78 |
|
|
| 13 | M-675000436 | Screw |
$2.45 |
|
|
| 15 | M-670036929 | Fuel Tank Blow-By Dump-Pipe |
$92.20 |
|
|
| 16 | M-670153393 | Pipe |
$100.90 |
|
|
| 18 | M-670104126 | Canister Pipe Bracket |
$7.23 |
|
|
| 31 | M-670100665 | Washer |
$1.22 |
|
|
| 32 | M-670162028 | Solenoid Valve |
$39.77 |
|
|
| 33 | M-670153395 | Pipe From Solenoid Valve To |
$107.76 |
|
|
| 34 | M-670153394 | Pipe |
$51.23 |
|
|
| 35 | M-670153397 | Pipe |
$172.41 |
|
|
| 36 | M-670104150 | Clip |
$1.00 |
|
|
| 37 | M-670153396 | Pipe From Sleeve Pipe To Val |
$108.74 |
|
