Diagram image not available

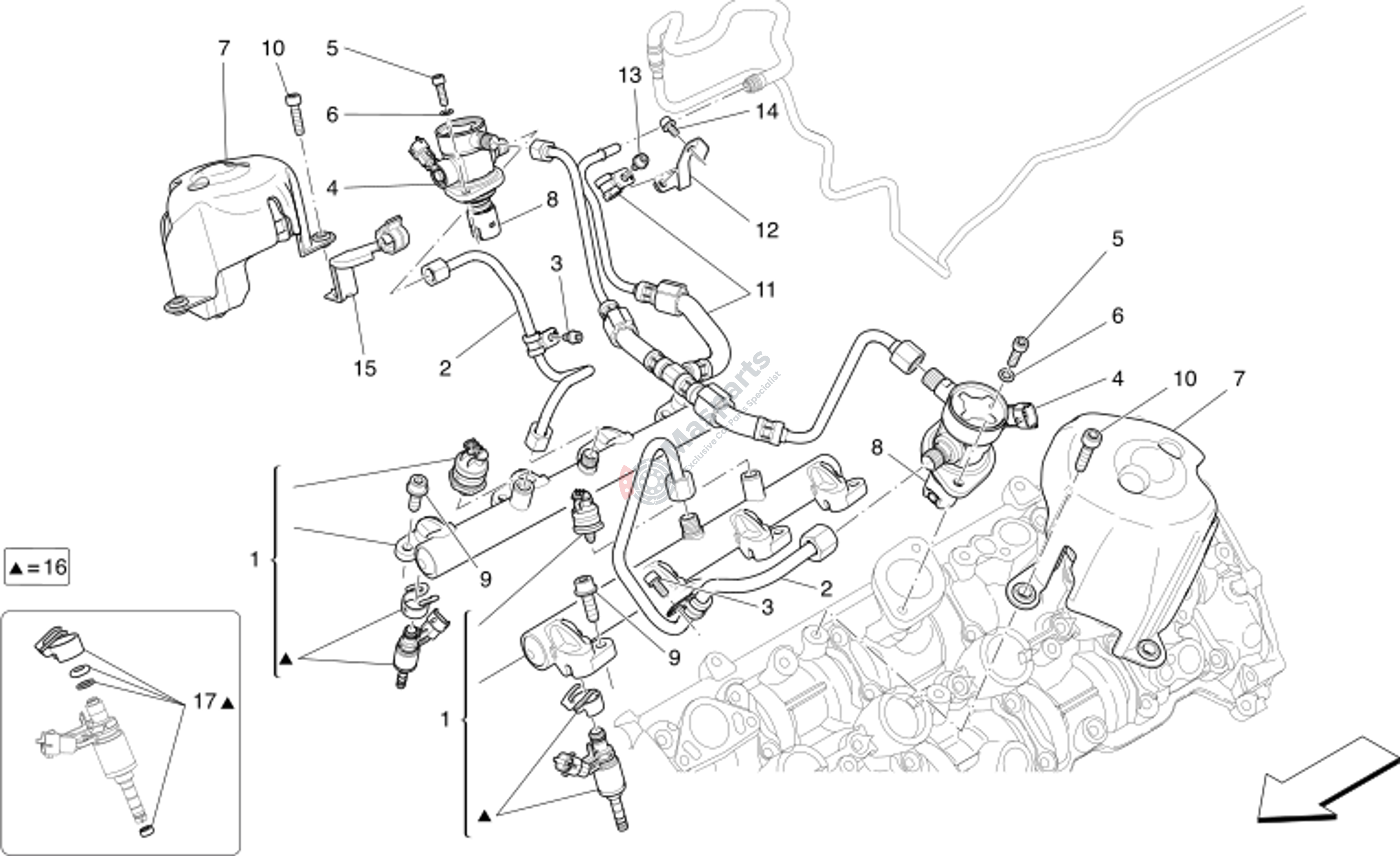

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-334920 | Complete Injectors Pipe |
$726.34 |
|
|
| 2 | M-297510 | Hp Rail Fuel Pipe |
$158.92 |
|
|
| 3 | M-231616 | Screw |
$2.08 |
|
|
| 4 | M-828166 | High Pressure Fuel Pump |
$410.45 |
|
|
| 5 | M-14305334 | Socket Head Screw M 6X 20 |
$5.59 |
|
|
| 6 | M-12639724 | Washer |
$1.35 |
|
|
| 7 | M-297021 | Shield |
$86.01 |
|
|
| 8 | M-270601 | High Pressure Pump Bucket |
$49.75 |
|
|
| 9 | M-231628 | Screw |
$2.44 |
|
|
| 10 | M-231619 | Socket Head Screw With Washe |
$2.44 |
|
|
| 11 | M-299334 | Lp Fuel Pipe |
$429.95 |
|
|
| 12 | M-815600 | Canister Valve Bracket |
$83.43 |
|
|
| 13 | M-233600 | Screw |
$2.34 |
|
|
| 14 | M-231618 | Screw |
$1.12 |
|
|
| 15 | M-305027 | Bracket |
$23.84 |
|
|
| 17 | M-673015589 | Kit Injector Seal |
$54.77 |
|
