Diagram image not available

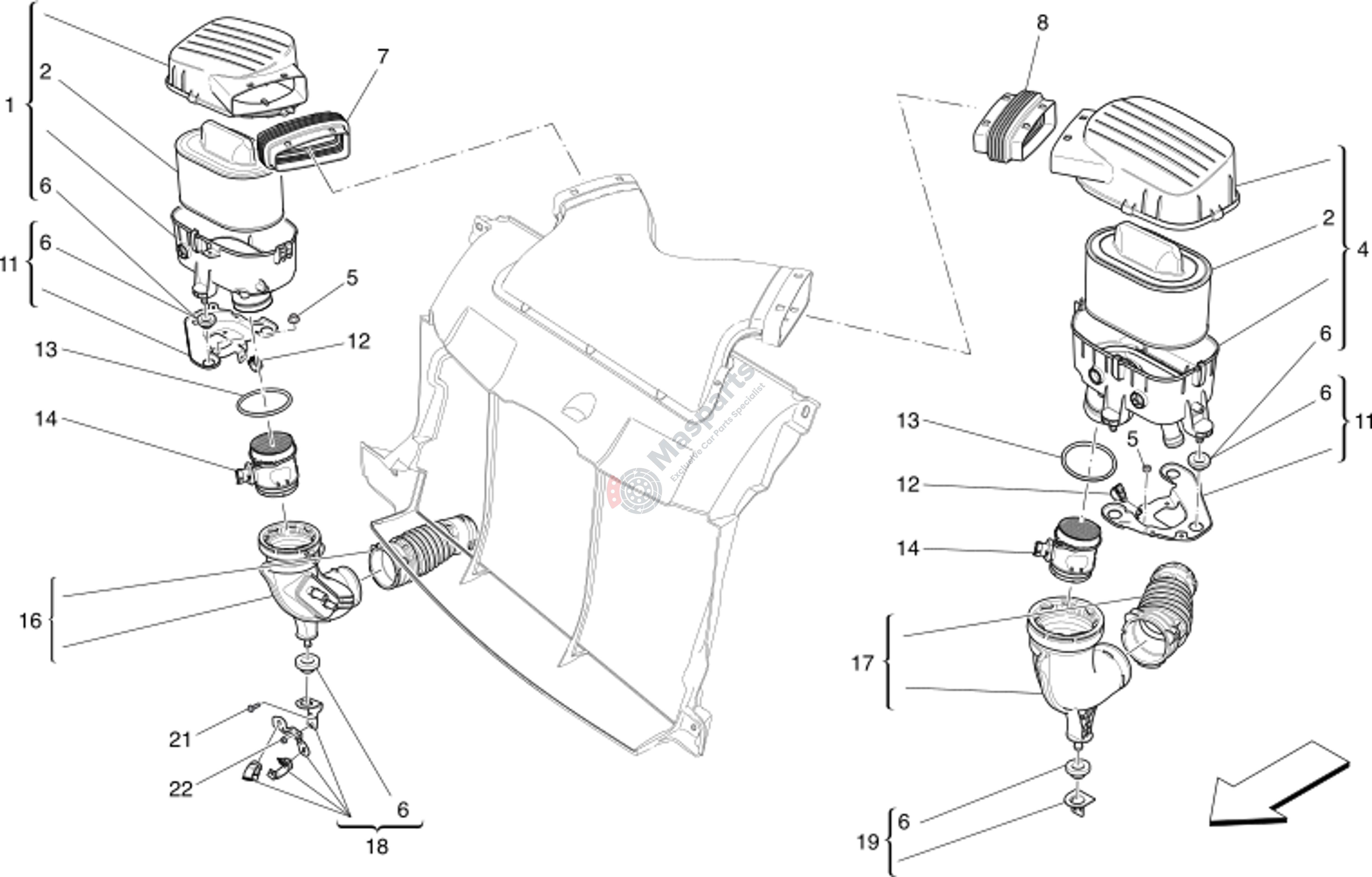

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108662 | Rh Filter Box Assembly |
€206,55 |
|
|
| 2 | M-670001545 | Air Filter |
€51,53 |
|
|
| 4 | M-670108664 | Lh Filter Box Assembly |
€153,00 |
|
|
| 5 | M-14059214 | Nut |
€1,08 |
|
|
| 6 | M-670005249 | Bushing |
€12,42 |
|
|
| 7 | M-670007992 | Rh Intake Air Sleeve |
€21,00 |
|
|
| 8 | M-670007991 | Lh Intake Air Sleeve |
€21,00 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
€13,52 |
|
|
| 12 | M-675000135 | Clip |
€0,84 |
|
|
| 13 | M-670005248 | Circlip |
€82,71 |
|
|
| 14 | M-670002164 | Air Flow Meter |
€182,32 |
|
|
| 16 | M-670153627 | Rh Clean Air Intake Sleeve |
€229,50 |
|
|
| 17 | M-670153628 | Lh Clean Air Intake Sleeve |
€229,50 |
|
|
| 18 | M-670102965 | Rh Clean Air Intake Sleeve B |
€12,42 |
|
|
| 19 | M-670102966 | Lh Clean Air Intake Sleeve B |
€2,61 |
|
|
| 21 | M-675000308 | Screw |
€1,42 |
|
|
| 22 | M-14059214 | Nut |
€1,08 |
|
