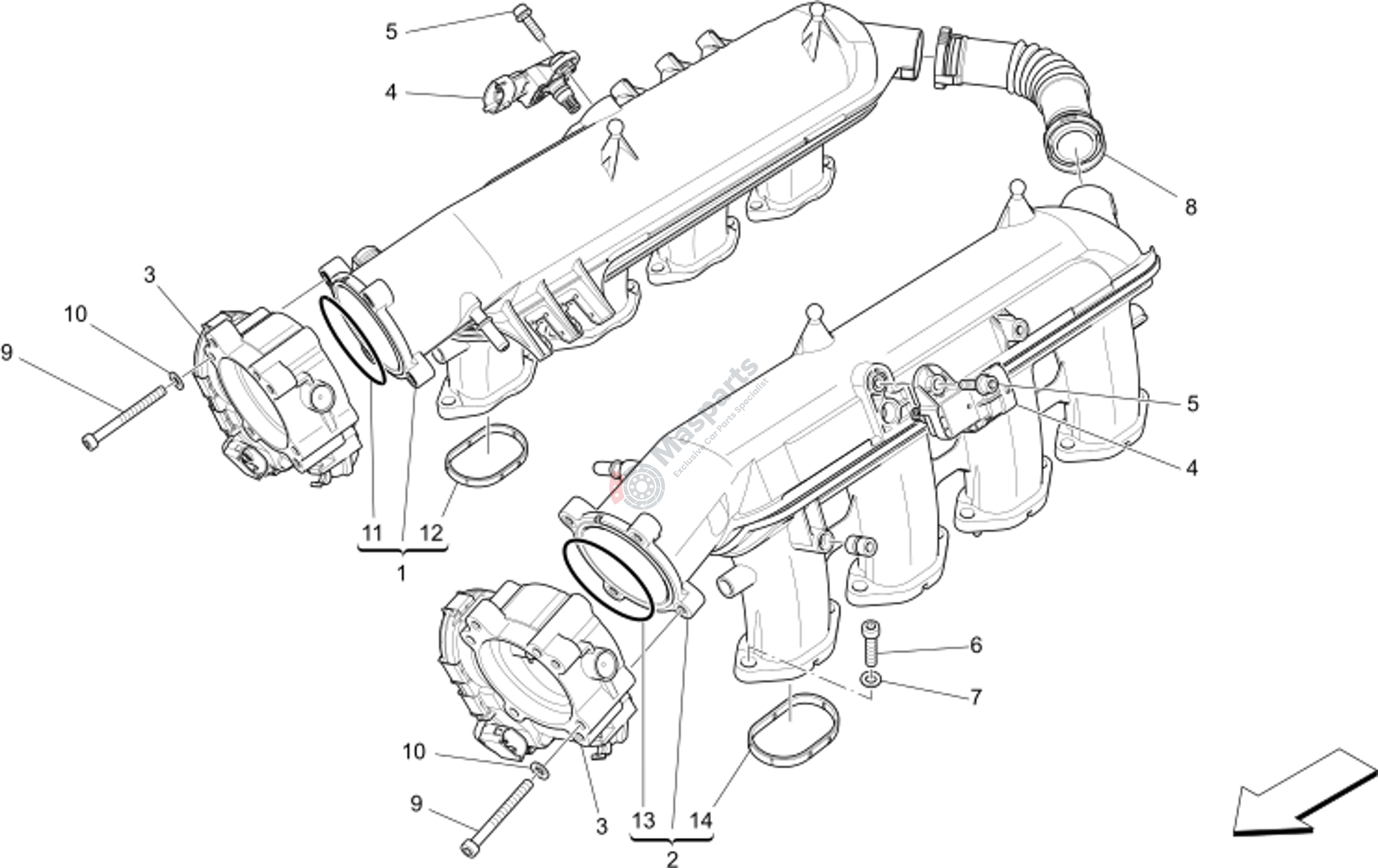

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-837180 | Rh Intake Manifold Assembly |
$334.18 |
|
|
| 2 | M-837181 | Lh Intake Manifold Assembly |
$334.18 |
|
|
| 3 | M-329967 | Throttle Body (V8) |
$312.03 |
|
|
| 4 | M-272880 | Pressure Sensor |
$44.12 |
|
|
| 5 | M-231619 | Socket Head Screw With Washe |
$2.41 |
|
|
| 6 | M-14305474 | Screw |
$1.53 |
|
|
| 7 | M-675000106 | Washer |
$1.61 |
|
|
| 8 | M-277295 | Compensation Central |
$43.61 |
|
|
| 9 | M-14309224 | Screw |
$2.83 |
|
|
| 10 | M-14499324 | Washer |
$1.18 |
|
|
| 11 | M-322327 | V8 Airbox Intake Manifold Co |
$35.75 |
|
|
| 12 | M-309025 | V8 Airbox Intake Manifold Ga |
$36.49 |
|
|
| 13 | M-322327 | V8 Airbox Intake Manifold Co |
$35.75 |
|
|
| 14 | M-309025 | V8 Airbox Intake Manifold Ga |
$36.49 |
|
