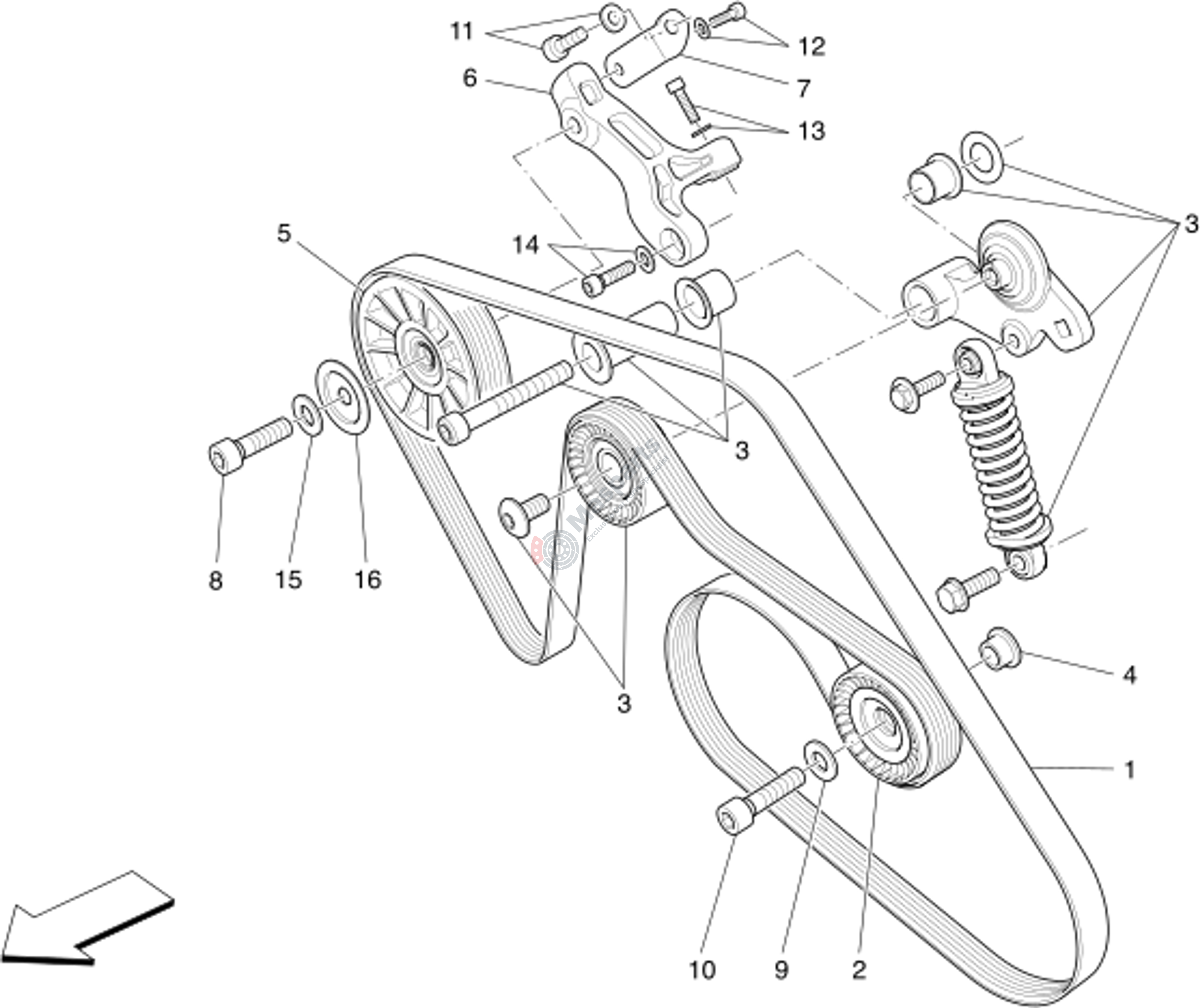

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-923570 | Compressor Driving Belt |
$66.02 |
|
|
| 2 | M-238590 | Belt Tightening Pulley |
$38.72 |
|
|
| 3 | M-281995 | Tightener |
$533.99 |
|
|
| 4 | M-269781 | Bushing For Tightener |
$26.44 |
|
|
| 5 | M-278950 | Belt Tightening Pulley |
$43.99 |
|
|
| 6 | M-786740 | Support |
$113.85 |
|
|
| 7 | M-790216 | Bracket |
$10.66 |
|
|
| 8 | M-16044024 | Screw M8X40 |
$1.32 |
|
|
| 9 | M-12642524 | Washer |
$1.66 |
|
|
| 10 | M-305554 | Screw |
$6.37 |
|
|
| 11 | M-248471 | Screw M8X20 |
$4.87 |
|
|
| 12 | M-231616 | Screw |
$2.02 |
|
|
| 13 | M-231621 | Screw |
$1.08 |
|
|
| 14 | M-231629 | Socket Head Screw With Washe |
$2.38 |
|
|
| 15 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.32 |
|
|
| 16 | M-278939 | Washer |
$9.20 |
|
