Diagram image not available

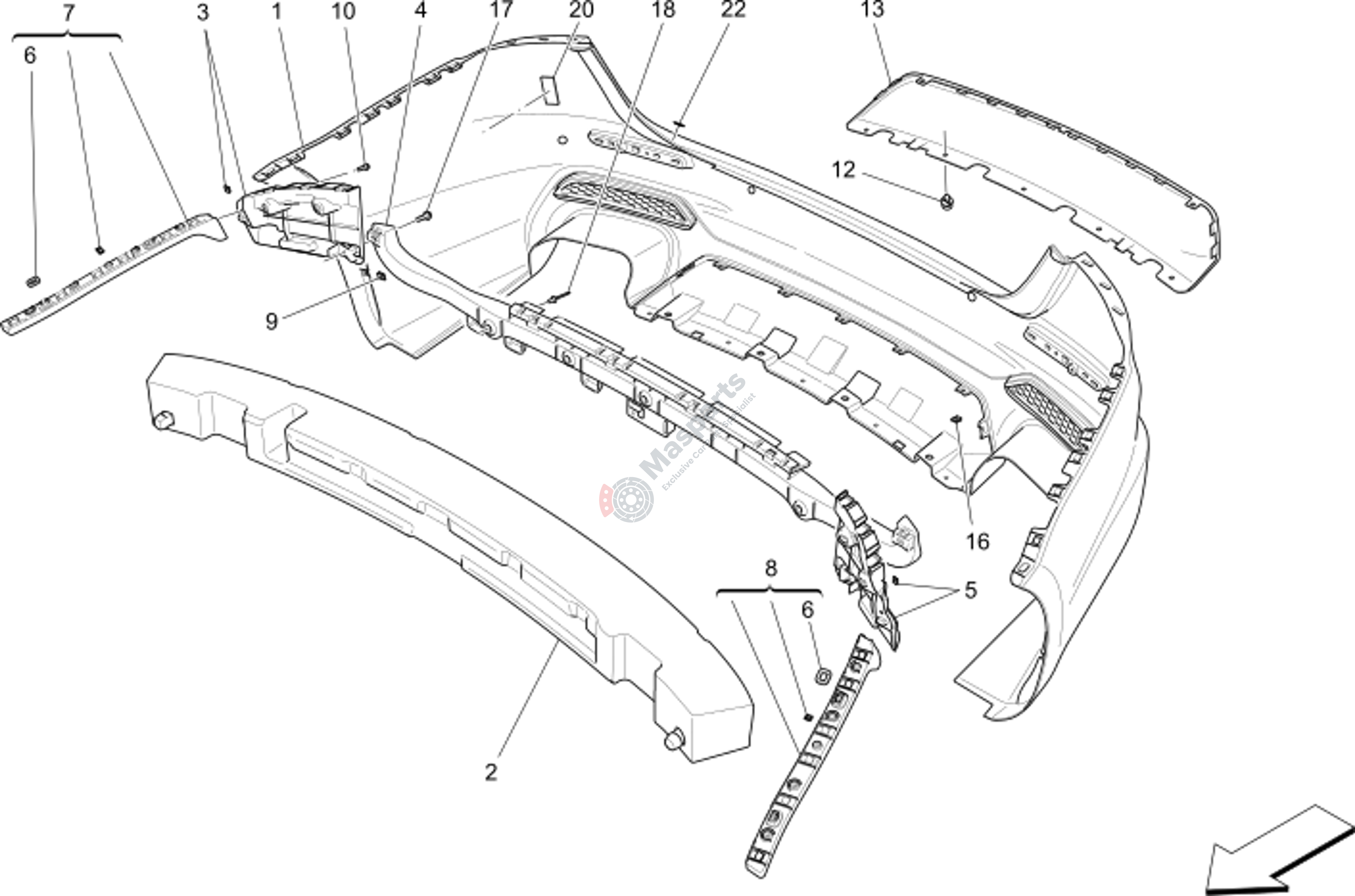

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008232 | Rear Bumper |
$1,133.40 |
|
|
| 2 | M-670101005 | Rear Bumper Absorber |
$85.85 |
|
|
| 3 | M-670101079 | Under-Taillight Rh Bracket |
$18.27 |
|
|
| 4 | M-670004471 | Upper Central Bracket |
$275.51 |
|
|
| 5 | M-670101081 | Under-Taillight Lh Bracket |
$18.27 |
|
|
| 6 | M-675000064 | Gasket |
$2.77 |
|
|
| 7 | M-670101075 | Rh Bumper Mounting Bracket |
$29.92 |
|
|
| 8 | M-670101077 | Lh Bumper Mounting Bracket |
$29.92 |
|
|
| 9 | M-675000192 | Bracket |
$1.22 |
|
|
| 10 | M-675000326 | Screw |
$1.93 |
|
|
| 12 | M-675000554 | Screw |
$2.34 |
|
|
| 16 | M-670034279 | Clip |
$3.60 |
|
|
| 17 | M-675000326 | Screw |
$1.93 |
|
|
| 18 | M-675000323 | Rivet |
$1.83 |
|
|
| 20 | M-670031643 | Pad |
$3.60 |
|
|
| 22 | M-675000546 | Pad |
$51.12 |
|
