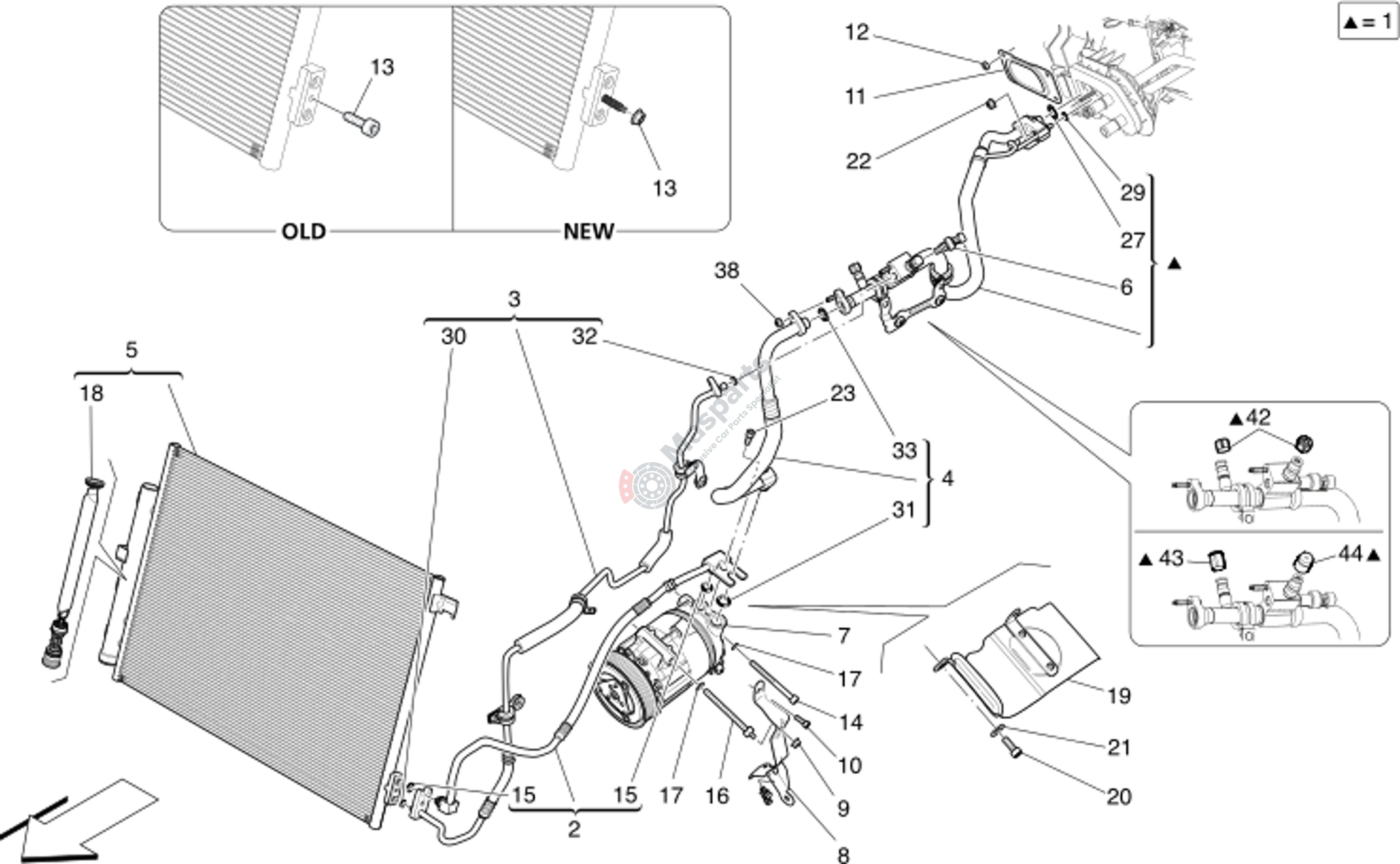

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670007954 | Pipe From Evaporator To Unio |
$99.52 |
|
|
| 2 | M-670001939 | Flexible Pipe |
$81.38 |
|
|
| 3 | M-670176551 | Pipe |
$109.95 |
|
|
| 4 | M-670007952 | Flex Pipe From Compressor To |
$112.79 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$780.07 |
|
|
| 6 | M-670038668 | Pressostat |
$58.54 |
|
|
| 7 | M-954109 | Ac Compressor V8 |
$1,474.83 |
|
|
| 8 | M-288682 | Bracket |
$43.95 |
|
|
| 9 | M-14059211 | Nut |
$1.44 |
|
|
| 10 | M-675000314 | Screw |
$1.34 |
|
|
| 11 | M-670005087 | Plug |
$16.07 |
|
|
| 12 | M-675000315 | Nut |
$1.72 |
|
|
| 13 | M-675000456 | Screw |
$4.54 |
|
|
| 14 | M-14307224 | Screw |
$3.79 |
|
|
| 15 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.62 |
|
|
| 16 | M-286687 | Column |
$32.61 |
|
|
| 17 | M-11193874 | Washer |
$1.32 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$226.53 |
|
|
| 22 | M-675000328 | Nut |
$1.35 |
|
|
| 23 | M-675000249 | Screw |
$1.36 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.03 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.03 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.03 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.03 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.92 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
$1.88 |
|
|
| 38 | M-675000315 | Nut |
$1.72 |
|
|
| 42 | M-673009426 | Gas Cap |
$27.67 |
|
