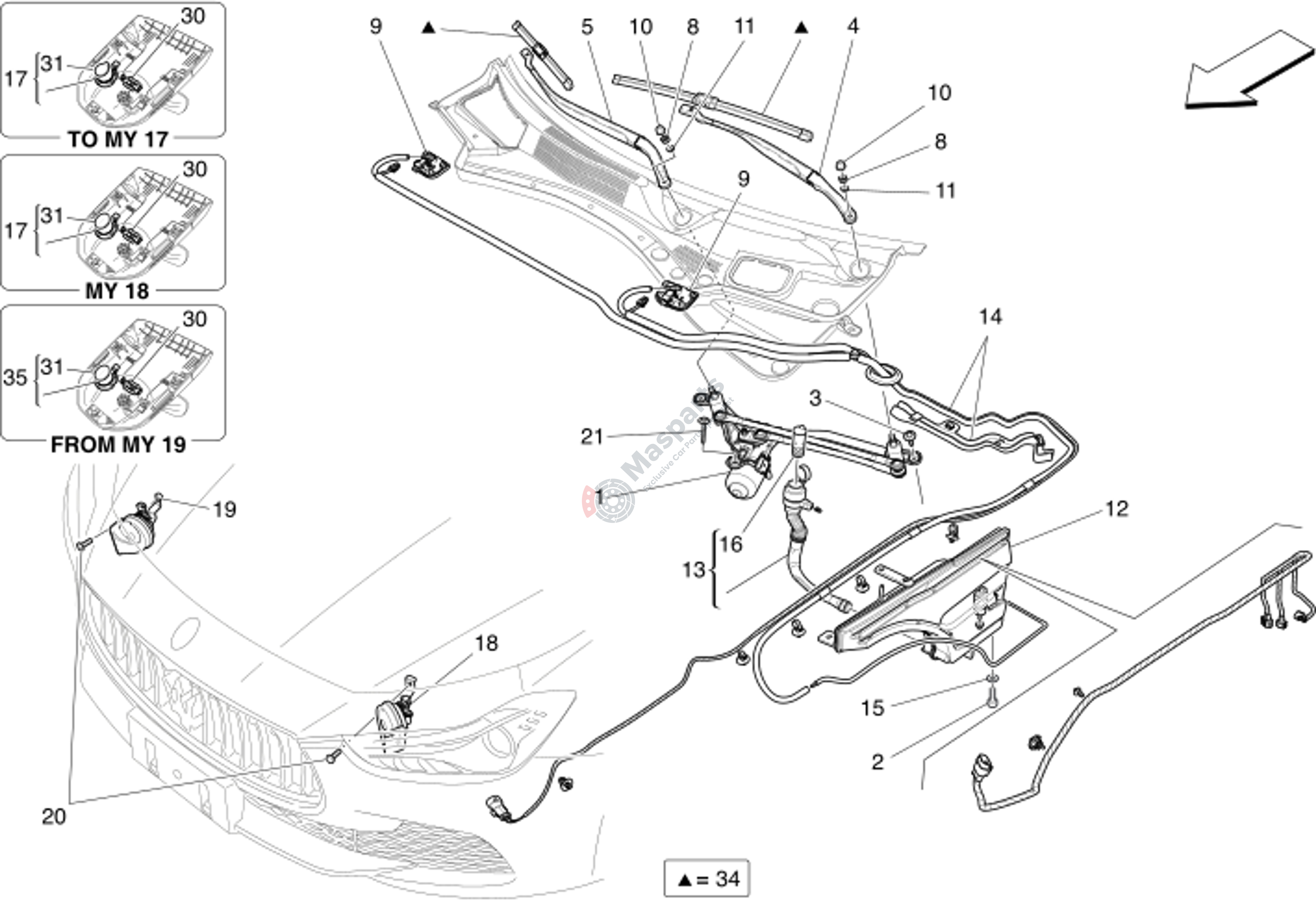

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105984 | Windshield Wiper Motor |
$402.70 |
|
|
| 2 | M-670030635 | Screw |
$2.04 |
|
|
| 3 | M-675000077 | Screw |
$2.24 |
|
|
| 4 | M-670007562 | Lhd Pilot Side Windshield Wi |
$162.22 |
|
|
| 5 | M-670001642 | Lhd Passenger Side Windscreen Arm |
$131.10 |
|
|
| 8 | M-675000175 | Nut |
$0.98 |
|
|
| 10 | M-670007188 | Protection Boot. |
$1.09 |
|
|
| 11 | M-675000176 | Washer |
$1.10 |
|
|
| 12 | M-670105311 | Windscreen Washer Tank |
$239.56 |
|
|
| 13 | M-670038848 | Tank Pipe |
$32.63 |
|
|
| 15 | M-670030893 | Special Washer |
$2.85 |
|
|
| 16 | M-675000049 | Air Filter |
$6.49 |
|
|
| 20 | M-675000433 | Screw |
$1.62 |
|
|
| 21 | M-670005392 | Screw |
$3.77 |
|
|
| 30 | M-675000651 | Clip Rain Sensor |
$5.57 |
|
|
| 34 | M-673008176 | Lhd Wiper Set |
$66.50 |
|
