Diagram image not available

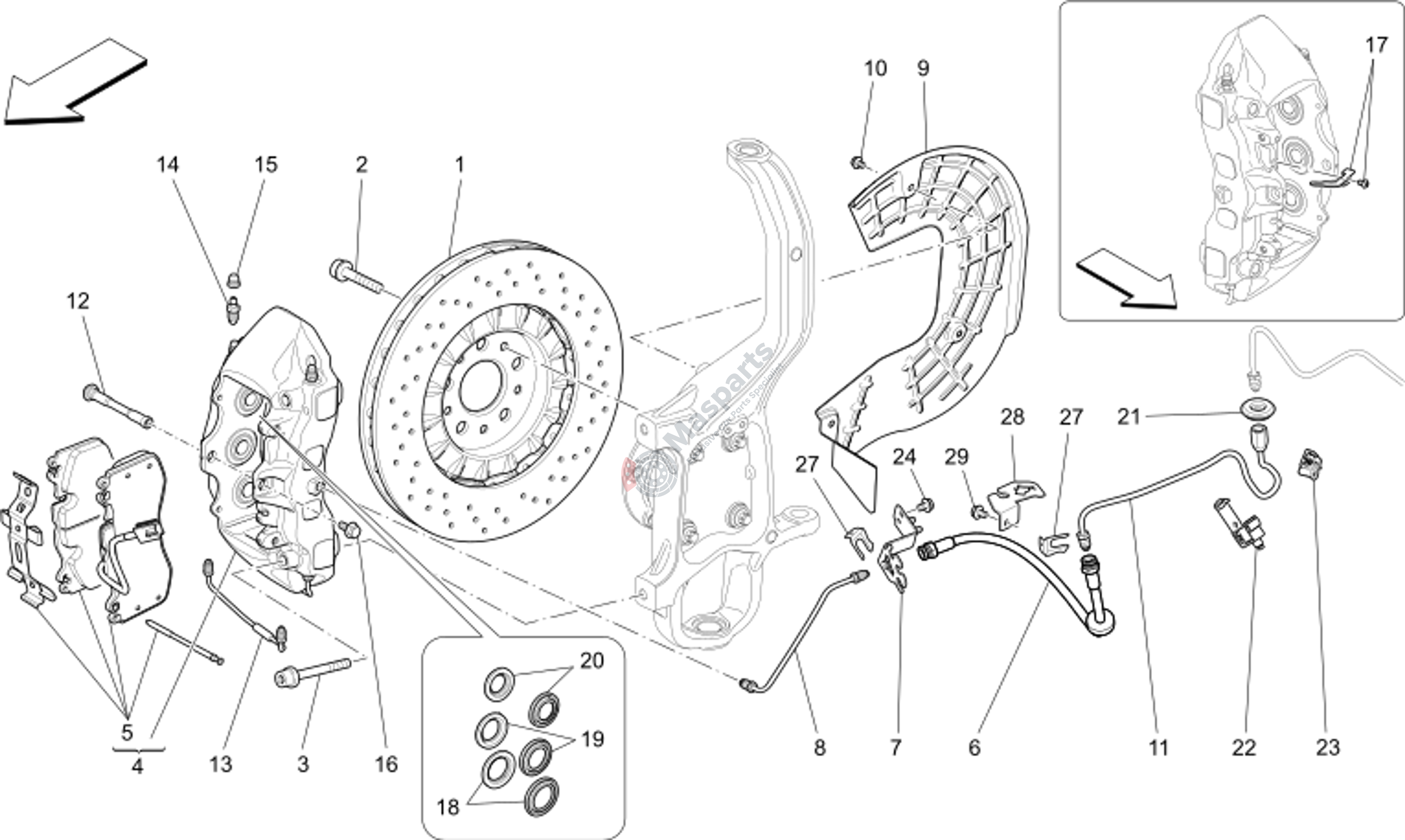

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670217883 | Shw Brake Disc |
$339.55 |
|
|
| 2 | M-675000081 |
Screw
|
$4.92 |
|
|
| 3 | M-670005714 | Screw |
$6.56 |
|
|
| 5 | M-673012382 | Fr Brake Pads Kit M15X44B/M1 |
$534.41 |
|
|
| 6 | M-670155387 | Flexible Hose For Front Brak |
$15.83 |
|
|
| 7 | M-670001817 | Right Front Flexible Brake P |
$4.43 |
|
|
| 8 | M-670003218 | R.H.Rigid Pipe Connection-Fr |
$16.11 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$6.86 |
|
|
| 10 | M-675000126 | Screw |
$1.61 |
|
|
| 11 | M-670039841 | Pipe |
$24.69 |
|
|
| 12 | M-673000026 | Tie-Rod |
$44.47 |
|
|
| 13 | M-673000025 | R.H.Rigid Pipe |
$80.53 |
|
|
| 14 | M-152954 | Bleeding Screw |
$39.05 |
|
|
| 15 | M-215666 | Cap |
$26.49 |
|
|
| 16 | M-198014 | Screw |
$21.82 |
|
|
| 17 | M-673000054 | Bracket And Screw |
$47.75 |
|
|
| 18 | M-182121 | Cap |
$74.12 |
|
|
| 19 | M-215664 | Cap |
$50.84 |
|
|
| 20 | M-215663 | Cap |
$50.84 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.32 |
|
|
| 22 | M-670039674 | Clip |
$2.38 |
|
|
| 23 | M-675000272 | Retaining Clip |
$4.97 |
|
|
| 24 | M-675000126 | Screw |
$1.61 |
|
|
| 27 | M-675000276 | Plate |
$0.94 |
|
|
| 28 | M-670037128 | Rh Brake Pipe Bracket |
$3.58 |
|
|
| 29 | M-675000621 | Screw (M6X18) |
$0.86 |
|
