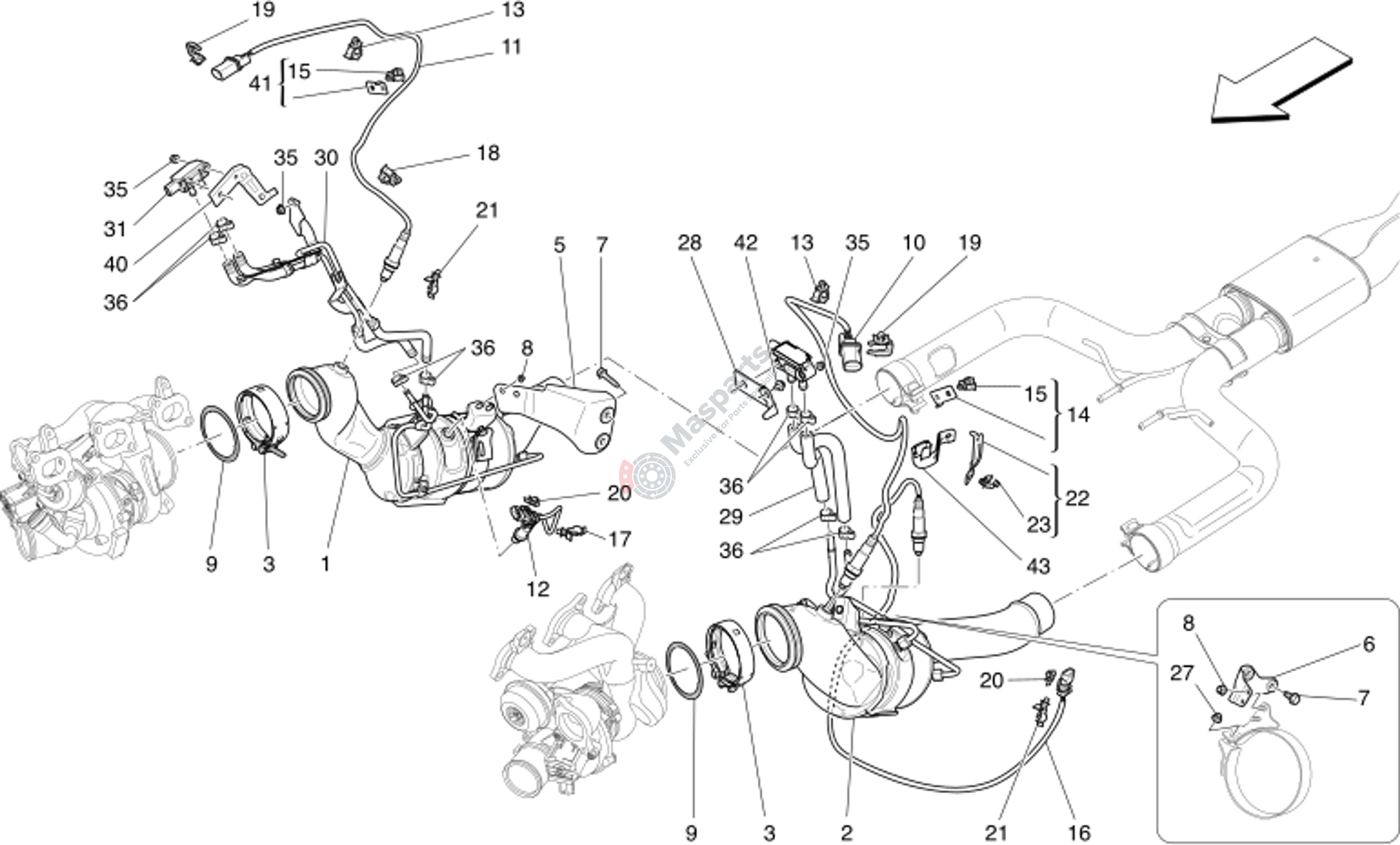

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154296 | Hot-End Gpf Dx |
€2.518,55 |
|
|
| 2 | M-670154297 | Hot-End Gpf Sx |
€13.284,80 |
|
|
| 3 | M-675000060 | Collar |
€25,21 |
|
|
| 5 | M-670153640 | Rh Hot-End Bracket |
€65,32 |
|
|
| 6 | M-670153639 | Lh Hot-End Bracket |
€65,32 |
|
|
| 7 | M-675000397 | Screw |
€7,82 |
|
|
| 8 | M-675000779 | Nut |
€2,39 |
|
|
| 9 | M-675000052 | Gasket |
€7,36 |
|
|
| 10 | M-670214727 | Front Lambda Sensor |
€104,06 |
|
|
| 11 | M-670104046 | Lambda Sensor |
€104,92 |
|
|
| 12 | M-670107391 | Rear Lambda Sensor |
€115,24 |
|
|
| 13 | M-670005126 | Clip |
€0,95 |
|
|
| 14 | M-670002259 | Bracket |
€5,61 |
|
|
| 15 | M-675000134 | Clip |
€5,06 |
|
|
| 16 | M-46335923 | Lower Lambda Sensor |
€77,74 |
|
|
| 17 | M-675000143 | Clip |
€0,84 |
|
|
| 18 | M-670003739 | Clip |
€2,09 |
|
|
| 19 | M-670104528 | Retaining Clip |
€1,46 |
|
|
| 20 | M-670106995 | Retaining Clip |
€1,46 |
|
|
| 21 | M-675000143 | Clip |
€0,84 |
|
|
| 22 | M-670039620 | Bracket |
€4,88 |
|
|
| 27 | M-675000779 | Nut |
€2,39 |
|
|
| 28 | M-670153723 | Bracket |
€12,42 |
|
|
| 29 | M-670153391 | Pipe Exhaust Gas Pressure Se |
€94,35 |
|
|
| 30 | M-670153390 | Pipe Exhaust Gas Pressure Se |
€94,35 |
|
|
| 35 | M-675000181 | Nut |
€1,25 |
|
|
| 36 | M-675000369 | Strap Collar |
€1,44 |
|
|
| 40 | M-670109785 | Pressure Sensor Bracket |
€15,73 |
|
|
| 41 | M-670002259 | Bracket |
€5,61 |
|
|
| 42 | M-675000102 | Screw |
€2,24 |
|
|
| 43 | M-670156152 | Bracket |
€12,42 |
|
