Diagram image not available

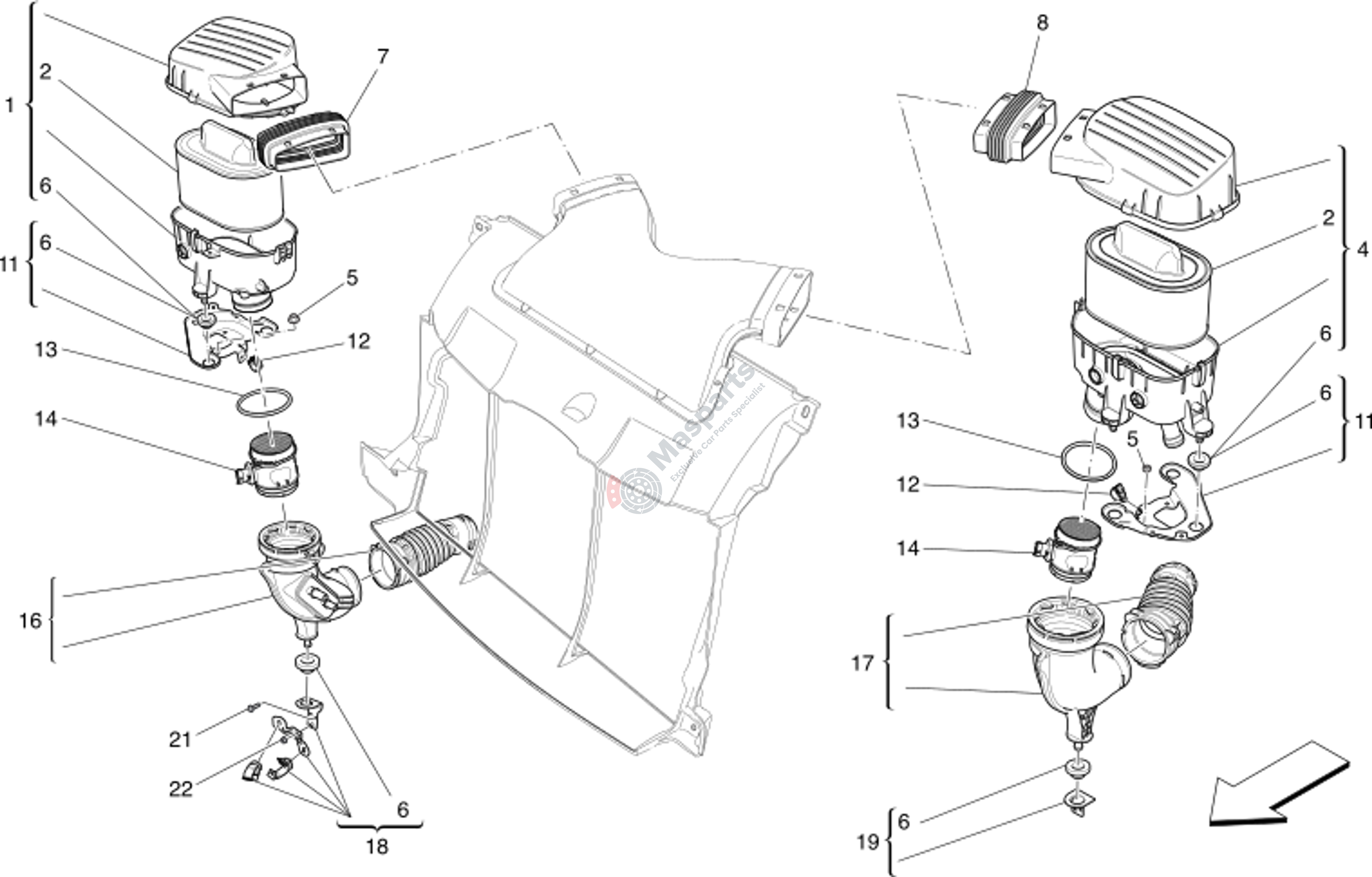

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108662 | Rh Filter Box Assembly |
$240.78 |
|
|
| 2 | M-670001545 | Air Filter |
$60.06 |
|
|
| 4 | M-670108664 | Lh Filter Box Assembly |
$187.27 |
|
|
| 5 | M-14059214 | Nut |
$1.29 |
|
|
| 6 | M-670005249 | Bushing |
$14.74 |
|
|
| 7 | M-670007992 | Rh Intake Air Sleeve |
$24.97 |
|
|
| 8 | M-670007991 | Lh Intake Air Sleeve |
$24.97 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
$16.19 |
|
|
| 12 | M-675000135 | Clip |
$1.01 |
|
|
| 13 | M-670005248 | Circlip |
$98.11 |
|
|
| 14 | M-670002164 | Air Flow Meter |
$216.54 |
|
|
| 16 | M-670153627 | Rh Clean Air Intake Sleeve |
$272.48 |
|
|
| 17 | M-670153628 | Lh Clean Air Intake Sleeve |
$272.48 |
|
|
| 18 | M-670102965 | Rh Clean Air Intake Sleeve B |
$14.80 |
|
|
| 19 | M-670102966 | Lh Clean Air Intake Sleeve B |
$3.22 |
|
|
| 21 | M-675000308 | Screw |
$1.68 |
|
|
| 22 | M-14059214 | Nut |
$1.29 |
|
