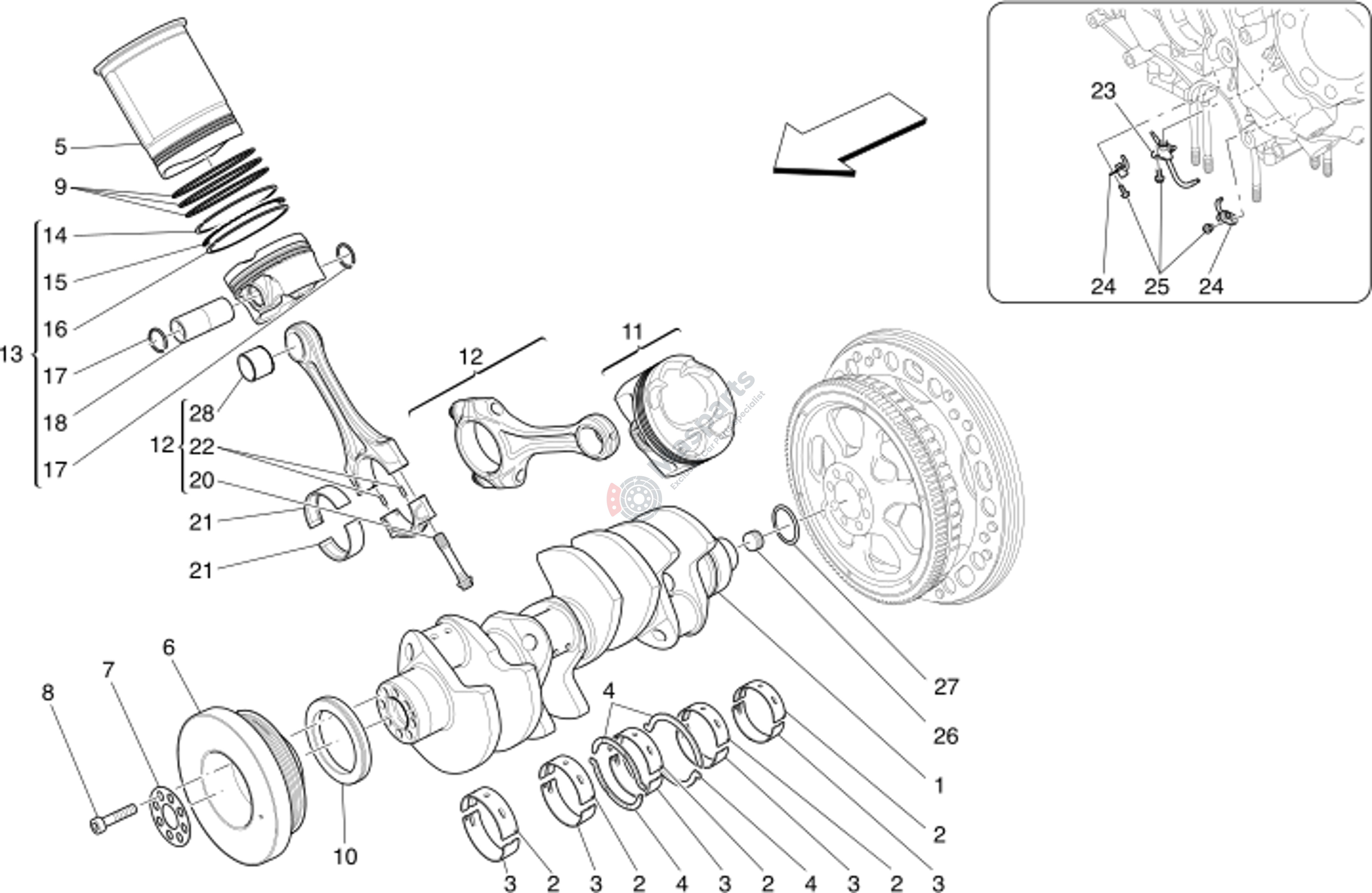

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-758138 | Crankshaft |
$1,865.62 |
|
|
| 2 | M-271406 | Upper Bank Half-Bearing |
$24.24 |
|
|
| 3 | M-271412 | Lower Bank Half-Bearing |
$16.12 |
|
|
| 4 | M-271589 | Mount Shimming |
$16.91 |
|
|
| 5 | M-271810 | Cylinder Liner |
$361.16 |
|
|
| 6 | M-819214 | Torsion Damper |
$711.21 |
|
|
| 7 | M-271609 | Damper Fastening Washer |
$8.30 |
|
|
| 8 | M-14308074 | Screw |
$8.93 |
|
|
| 9 | M-294153 | O-Ring |
$9.90 |
|
|
| 10 | M-271598 | Gasket |
$30.78 |
|
|
| 11 | M-326006 | Lh Side Engine Piston With R |
$592.04 |
|
|
| 12 | M-805291 | Connecting Rod Shaft And Cap |
$230.71 |
|
|
| 13 | M-326005 | Rh Side Engine Piston With R |
$592.04 |
|
|
| 14 | M-286954 | O-Ring |
$77.91 |
|
|
| 15 | M-299797 | 2Nd Groove Seal Ring |
$21.15 |
|
|
| 16 | M-287177 | Oil Scraper Ring |
$57.44 |
|
|
| 17 | M-270275 | Stop Ring |
$10.87 |
|
|
| 18 | M-270274 | Pin |
$34.05 |
|
|
| 20 | M-270248 | Connection Rod Screw |
$86.09 |
|
|
| 21 | M-312693 | Connecting Rod Half-Bearing |
$19.99 |
|
|
| 22 | M-292751 | Centring Pin For Connecting |
$33.57 |
|
|
| 23 | M-298858 | Pistons Cooling Nozzle |
$38.38 |
|
|
| 24 | M-298859 | Pistons Cooling Nozzle |
$26.73 |
|
|
| 25 | M-315493 | Screw |
$3.72 |
|
|
| 26 | M-176396 | Threaded Plug |
$10.51 |
|
|
| 27 | M-259917 | O-Ring |
$12.86 |
|
