Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

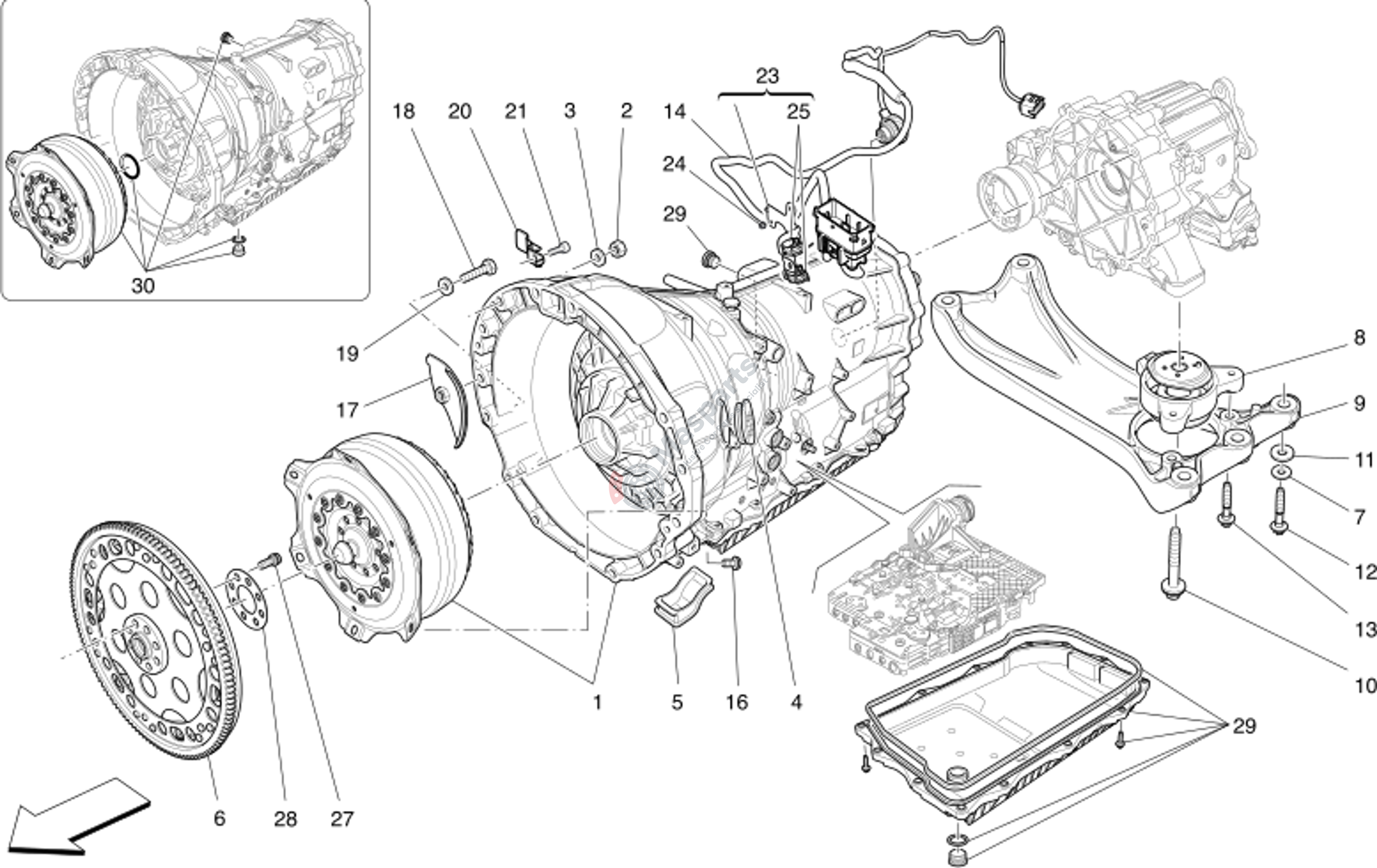

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670155634 | Automatic Transmission Awd |
$12,303.95 |
|
|
| 2 | M-675000184 | Nut |
$1.73 |
|
|
| 3 | M-675000098 | Washer |
$1.85 |
|
|
| 4 | M-670003520 | Plug |
$5.01 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.05 |
|
|
| 6 | M-673010357 | V6 Gasoline Engine Flywheel |
$806.74 |
|
|
| 7 | M-675000254 | Washer |
$1.72 |
|
|
| 8 | M-670106865 | Gearbox Side Suspension Bush |
$93.58 |
|
|
| 9 | M-670003632 | Gearbox Mounting Cross Membe |
$242.02 |
|
|
| 10 | M-670003988 | Screw |
$11.81 |
|
|
| 11 | M-675000247 | Washer |
$1.61 |
|
|
| 12 | M-675000145 | Screw |
$3.95 |
|
|
| 13 | M-670035590 | Screw |
$3.01 |
|
|
| 14 | M-670007401 | Automatic Gearbox Wiring |
$102.75 |
|
|
| 16 | M-670005384 | Screw |
$2.40 |
|
|
| 17 | M-670003684 | Closing Plate |
$5.55 |
|
|
| 18 | M-675000380 | Screw |
$1.99 |
|
|
| 19 | M-675000378 | Washer |
$1.11 |
|
|
| 20 | M-670005079 | Bracket |
$4.43 |
|
|
| 21 | M-675000191 | Screw |
$1.97 |
|
|
| 23 | M-670005501 | Cpl Bracket |
$11.09 |
|
|
| 24 | M-675000093 | Nut |
$1.43 |
|
|
| 27 | M-670002932 | Screw |
$5.55 |
|
|
| 28 | M-670002257 | Shim |
$4.47 |
|
|
| 29 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$413.99 |
|
|
| 30 | M-673003836 | Cpl Auto Transmiss. Converte |
$2,187.06 |
|
