Diagram image not available

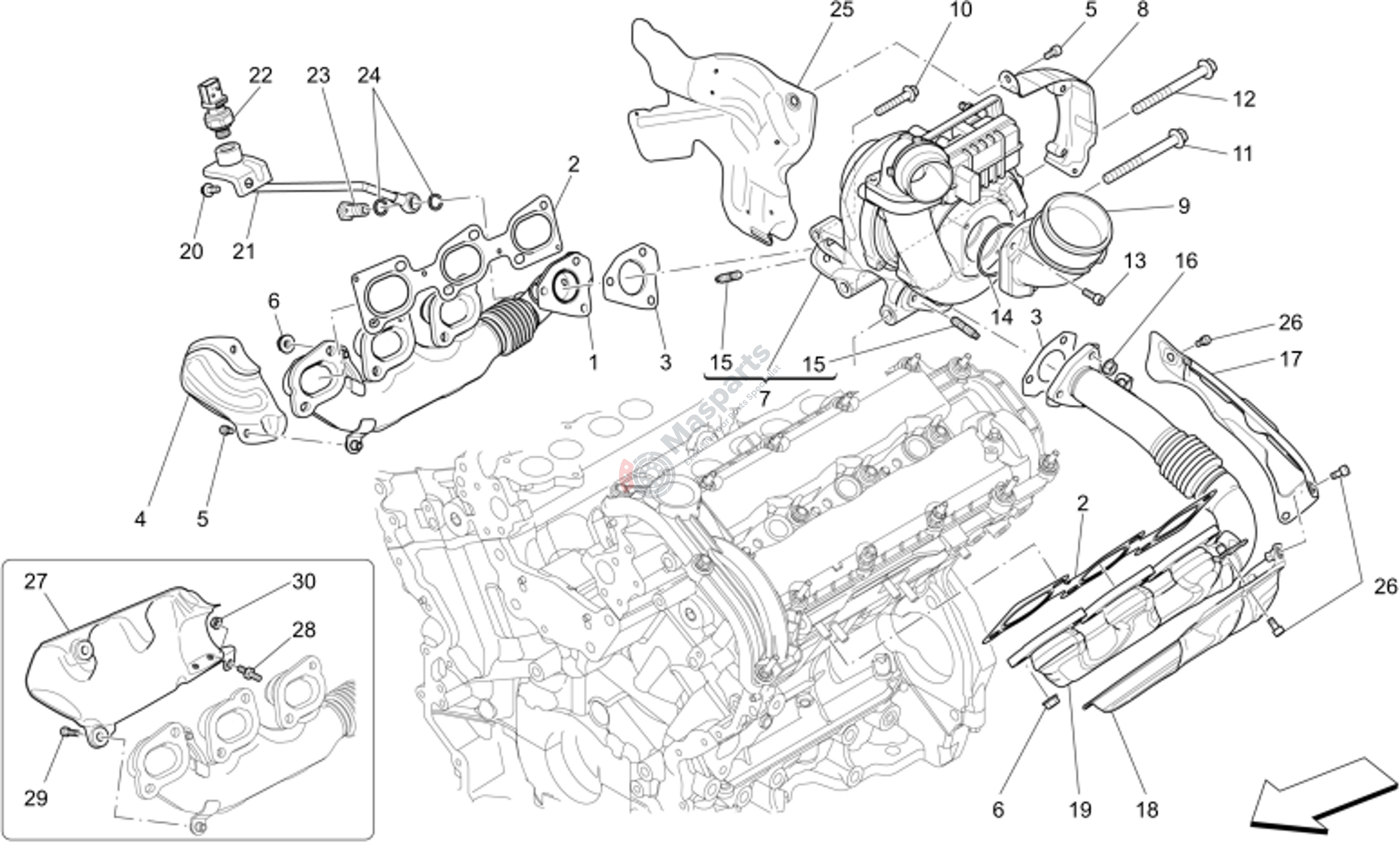

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328770 | Lh Exhaust Manifold |
$1,236.46 |
|
|
| 2 | M-46328252 | Gasket |
$13.47 |
|
|
| 3 | M-46328251 | Gasket |
$34.80 |
|
|
| 4 | M-673003960 | Guard |
$251.71 |
|
|
| 5 | M-46330058 | Screw M6X12 |
$4.86 |
|
|
| 6 | M-675000566 | Self Lock Nut Flange |
$2.79 |
|
|
| 7 | M-46328211 | Turbocompressor |
$3,830.93 |
|
|
| 8 | M-46328222 | Guard |
$164.70 |
|
|
| 9 | M-46328212 | Sleeve |
$176.09 |
|
|
| 10 | M-46330080 | Screw M8X45 |
$8.60 |
|
|
| 11 | M-46330081 | Screw M10X85 |
$9.12 |
|
|
| 12 | M-46333726 | Screw M10X100 |
$33.66 |
|
|
| 13 | M-675000787 | Tcei Screw |
$3.42 |
|
|
| 14 | M-46328358 | O.R. Gasket |
$11.60 |
|
|
| 15 | M-673001176 | Stud |
$15.49 |
|
|
| 16 | M-675000566 | Self Lock Nut Flange |
$2.79 |
|
|
| 17 | M-46328774 | Rear Exhaust Manifold Guard |
$251.71 |
|
|
| 18 | M-46328773 | Front Exhaust Manifold Guard |
$276.57 |
|
|
| 19 | M-46328771 | Rh Exhaust Manifold |
$1,227.85 |
|
|
| 20 | M-46328685 | Flange Bolt |
$2.07 |
|
|
| 21 | M-46328804 | Air Pressure Sensor Pipe |
$171.31 |
|
|
| 22 | M-46328326 | Pressure Sensor |
$231.42 |
|
|
| 23 | M-46328782 | Filler Neck |
$21.01 |
|
|
| 24 | M-46328325 | Gasket |
$2.07 |
|
|
| 25 | M-46328220 | Guard |
$198.88 |
|
|
| 26 | M-46330058 | Screw M6X12 |
$4.86 |
|
|
| 27 | M-46328264 | Carter |
$38.01 |
|
|
| 28 | M-46328262 | Stud |
$3.01 |
|
|
| 29 | M-46337621 | Screw |
$14.09 |
|
|
| 30 | M-673001753 | Flange Nut |
$1.68 |
|
