Diagram image not available

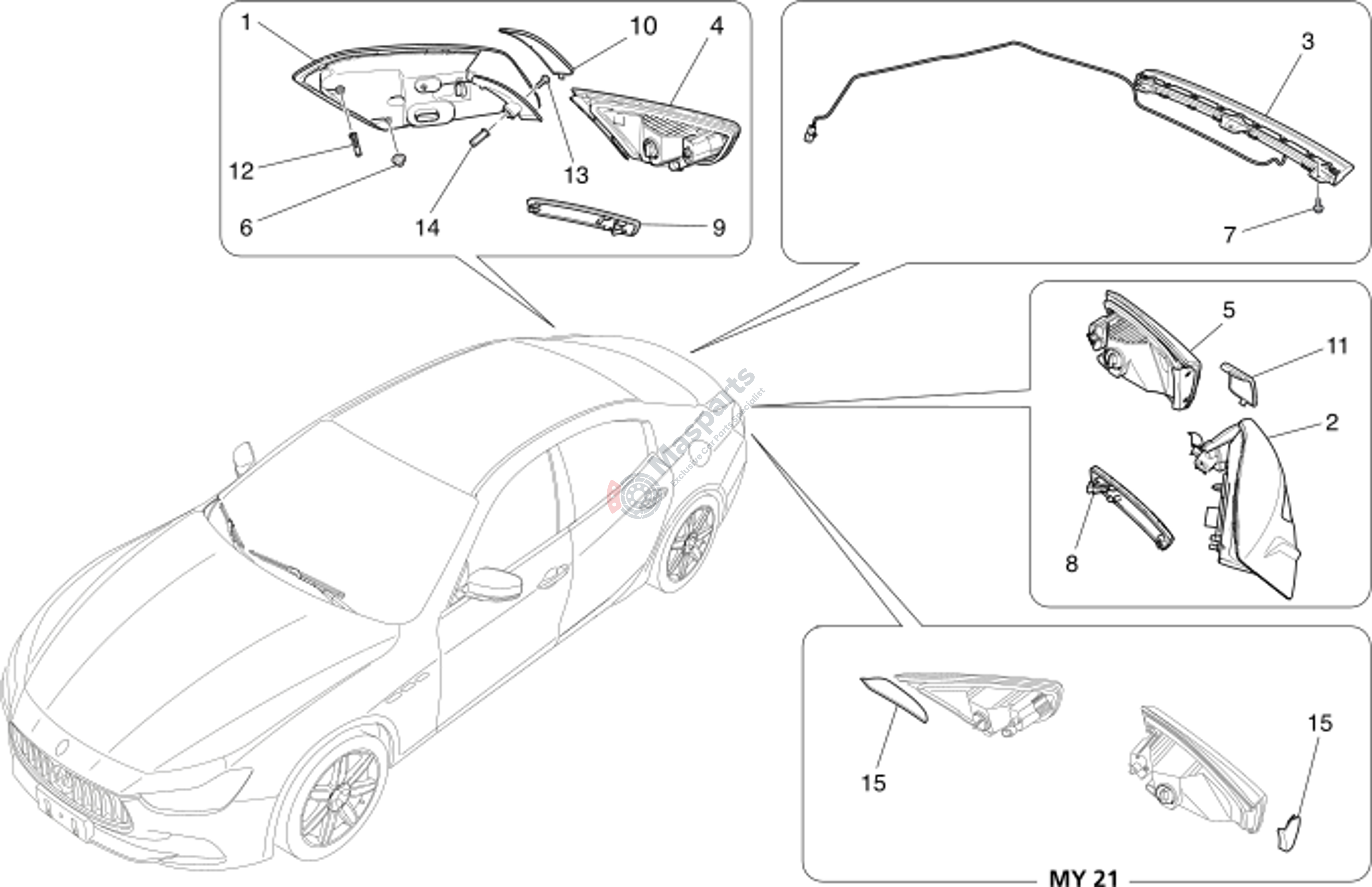

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154606 | Ghibli Rh Taillight Fixed Side |
$547.79 |
|
|
| 2 | M-670154609 | Lh Taillight Fixed Side |
$547.79 |
|
|
| 3 | M-670008130 | Third Brake Light |
$85.27 |
|
|
| 4 | M-670154608 | Rh Taillight Mobile Side |
$282.02 |
|
|
| 5 | M-670154611 | Ghibli Taillight Lh Mobile Side |
$282.02 |
|
|
| 6 | M-675000637 | Rubber |
$1.07 |
|
|
| 7 | M-675000011 | Screw |
$2.56 |
|
|
| 8 | M-670036960 | Lh Rear Bumper Reflector |
$41.90 |
|
|
| 9 | M-670036959 | Rh Rear Bumper Reflector |
$41.90 |
|
|
| 10 | M-670154615 | Cap Tail Light Rh |
$12.33 |
|
|
| 11 | M-670154617 | Cap Tail Light Lh |
$12.33 |
|
|
| 12 | M-675000523 | Bushing |
$4.53 |
|
|
| 13 | M-670006846 | Screw |
$2.06 |
|
|
| 14 | M-675000659 | Nut Rivet |
$1.68 |
|
|
| 15 | M-670173448 | Plug |
$10.74 |
|
