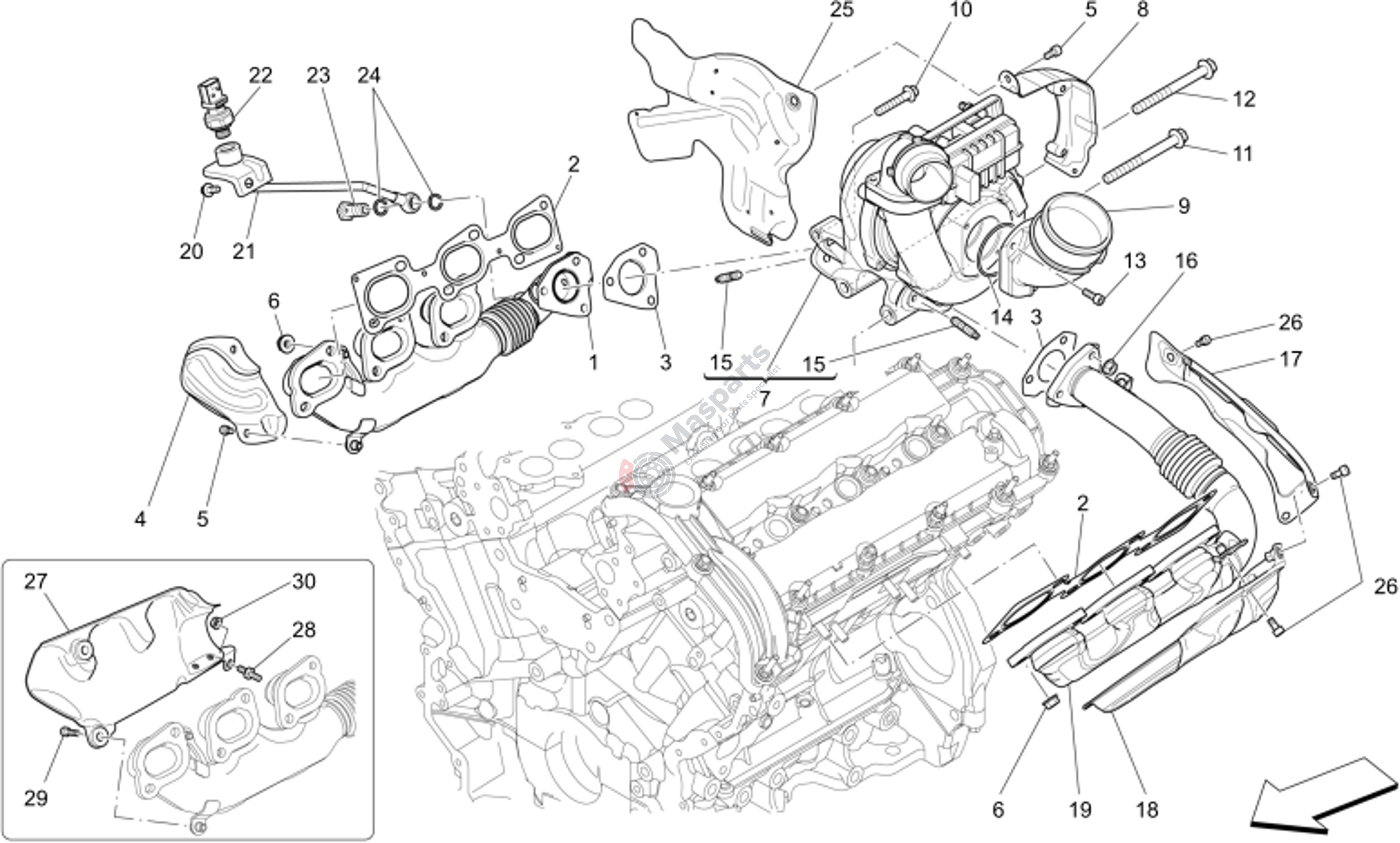

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328770 | Lh Exhaust Manifold |
$1,244.26 |
|
|
| 2 | M-46328252 | Gasket |
$13.55 |
|
|
| 3 | M-46328251 | Gasket |
$35.02 |
|
|
| 4 | M-673003960 | Guard |
$253.29 |
|
|
| 5 | M-46330058 | Screw M6X12 |
$4.89 |
|
|
| 6 | M-675000566 | Self Lock Nut Flange |
$2.81 |
|
|
| 7 | M-46328211 | Turbocompressor |
$3,855.09 |
|
|
| 8 | M-46328222 | Guard |
$165.74 |
|
|
| 9 | M-46328212 | Sleeve |
$177.20 |
|
|
| 10 | M-46330080 | Screw M8X45 |
$8.66 |
|
|
| 11 | M-46330081 | Screw M10X85 |
$9.18 |
|
|
| 12 | M-46333726 | Screw M10X100 |
$33.88 |
|
|
| 13 | M-675000787 | Tcei Screw |
$3.44 |
|
|
| 14 | M-46328358 | O.R. Gasket |
$11.67 |
|
|
| 15 | M-673001176 | Stud |
$15.59 |
|
|
| 16 | M-675000566 | Self Lock Nut Flange |
$2.81 |
|
|
| 17 | M-46328774 | Rear Exhaust Manifold Guard |
$253.29 |
|
|
| 18 | M-46328773 | Front Exhaust Manifold Guard |
$278.31 |
|
|
| 19 | M-46328771 | Rh Exhaust Manifold |
$1,235.59 |
|
|
| 20 | M-46328685 | Flange Bolt |
$2.08 |
|
|
| 21 | M-46328804 | Air Pressure Sensor Pipe |
$172.39 |
|
|
| 22 | M-46328326 | Pressure Sensor |
$232.88 |
|
|
| 23 | M-46328782 | Filler Neck |
$21.14 |
|
|
| 24 | M-46328325 | Gasket |
$2.08 |
|
|
| 25 | M-46328220 | Guard |
$200.13 |
|
|
| 26 | M-46330058 | Screw M6X12 |
$4.89 |
|
|
| 27 | M-46328264 | Carter |
$38.25 |
|
|
| 28 | M-46328262 | Stud |
$3.03 |
|
|
| 29 | M-46337621 | Screw |
$14.17 |
|
|
| 30 | M-673001753 | Flange Nut |
$1.69 |
|
