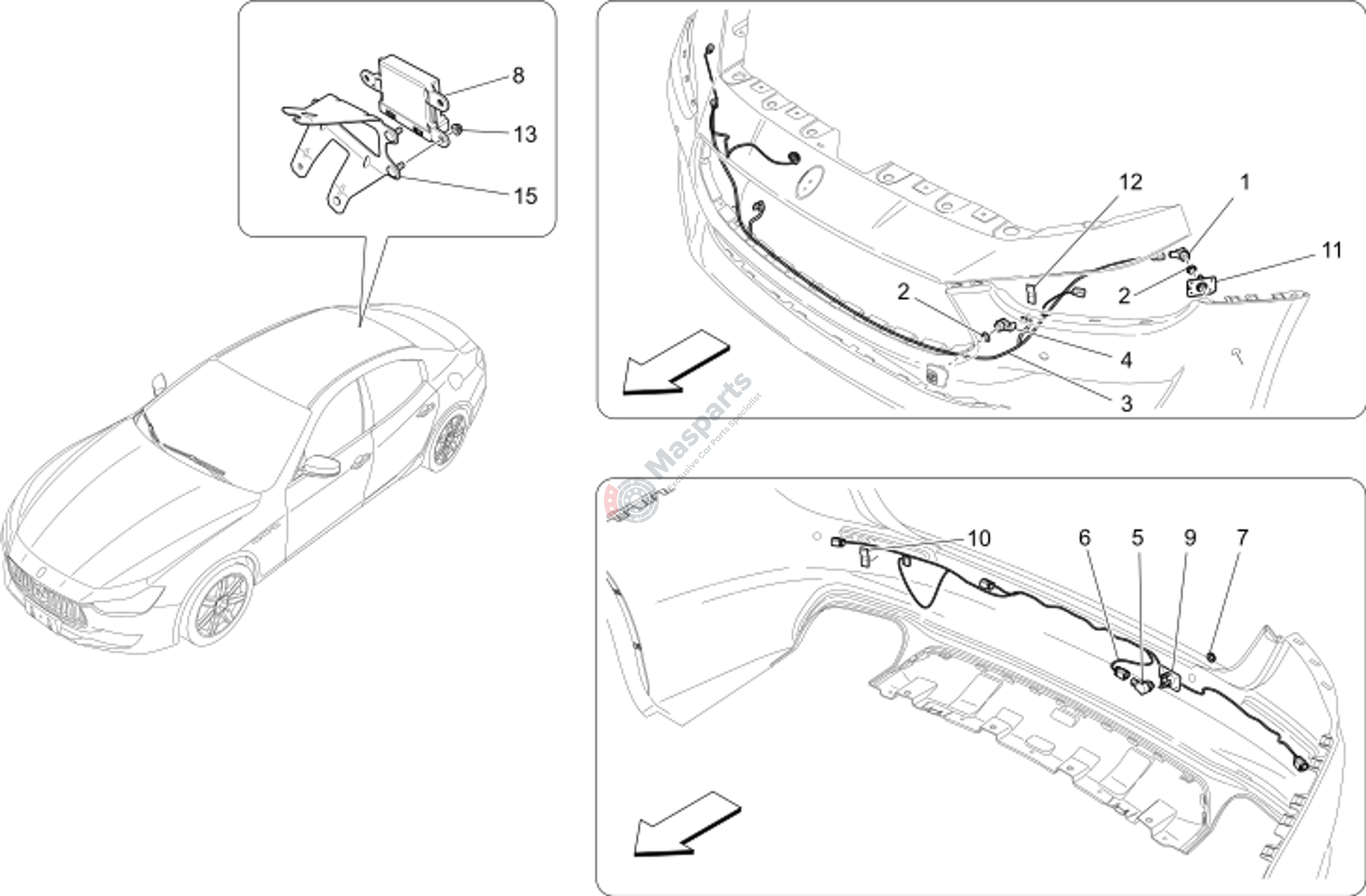

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000039 | Radial Parking Sensor |
$112.45 |
|
|
| 2 | M-675000044 | Silicon Ring |
$7.68 |
|
|
| 4 | M-670005173 | Coaxial Parking Sensor |
$112.45 |
|
|
| 5 | M-675000039 | Radial Parking Sensor |
$112.45 |
|
|
| 7 | M-675000044 | Silicon Ring |
$7.68 |
|
|
| 8 | M-670153622 | Parking Sensor Ecu |
$182.56 |
|
|
| 9 | M-670100948 | Rh Rear Internal Sensor Slee |
$22.29 |
|
|
| 10 | M-670005222 | Clip |
$27.49 |
|
|
| 11 | M-670100932 | Rh Front Internal Sensor Sle |
$27.28 |
|
|
| 12 | M-670005222 | Clip |
$27.49 |
|
|
| 13 | M-675000095 | Nut |
$0.78 |
|
|
| 15 | M-670031461 | Ecu Bracket |
$10.74 |
|
