Diagram image not available

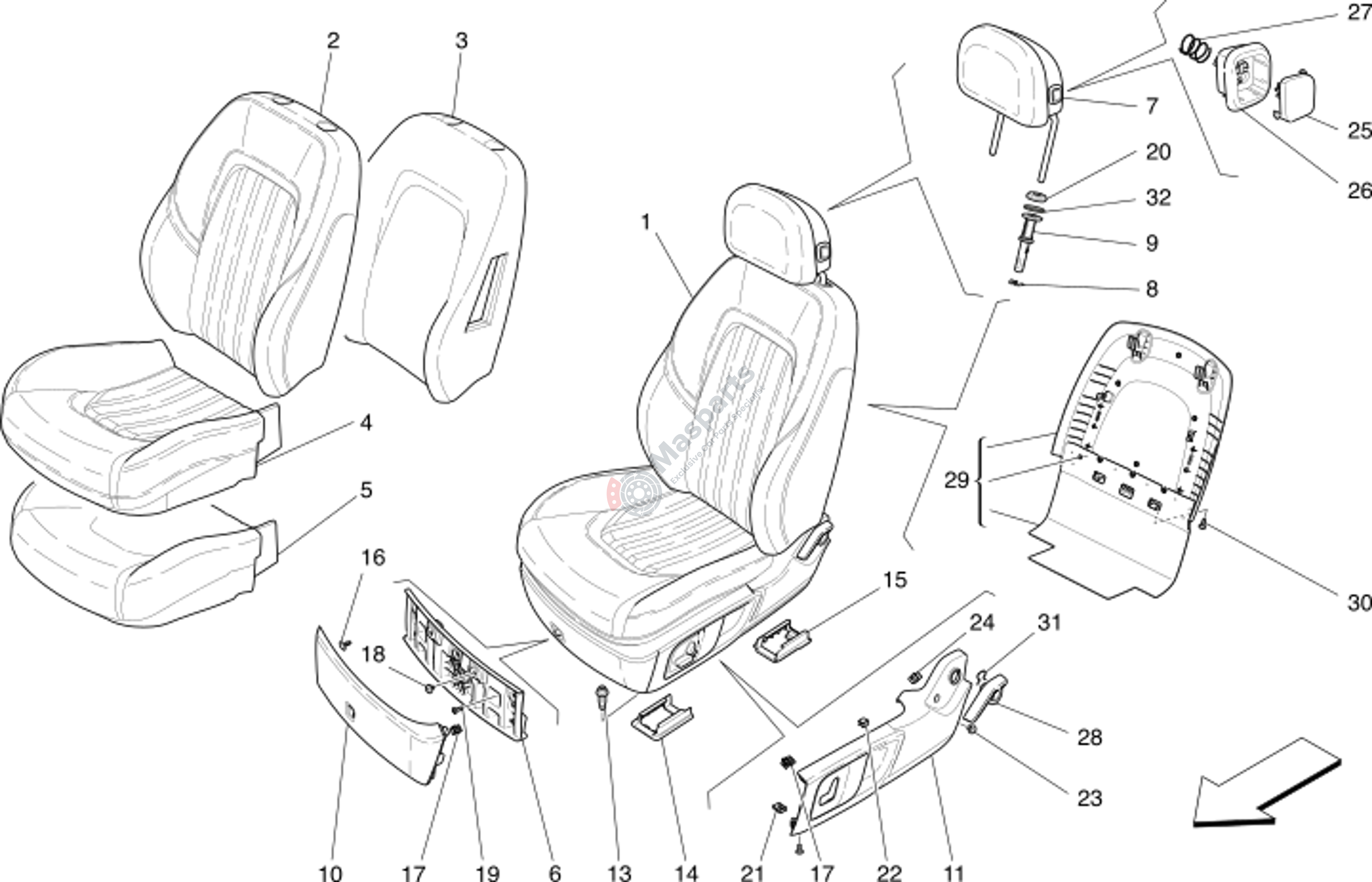

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 6 | M-670007532 | Plastic Carrier |
$14.20 |
|
|
| 8 | M-670006134 | Spring |
$5.77 |
|
|
| 9 | M-670006149 | Head Rest Rh. Bushing |
$11.08 |
|
|
| 13 | M-675000042 | Screw |
$2.28 |
|
|
| 16 | M-980145353 | Backrest Fixing Clip |
$20.75 |
|
|
| 17 | M-673000290 | Spring |
$1.71 |
|
|
| 19 | M-673000236 | Screw |
$2.10 |
|
|
| 21 | M-673000289 | Nut |
$2.37 |
|
|
| 22 | M-673000288 | Clip |
$1.61 |
|
|
| 23 | M-673000323 | Screw |
$2.44 |
|
|
| 24 | M-673000324 | Nut |
$1.71 |
|
|
| 27 | M-670006135 | Spring |
$3.54 |
|
|
| 30 | M-673000236 | Screw |
$2.10 |
|
|
| 31 | M-673002768 | Clip |
$3.09 |
|
|
| 32 | M-673013364 | Washer |
$1.32 |
|
