Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

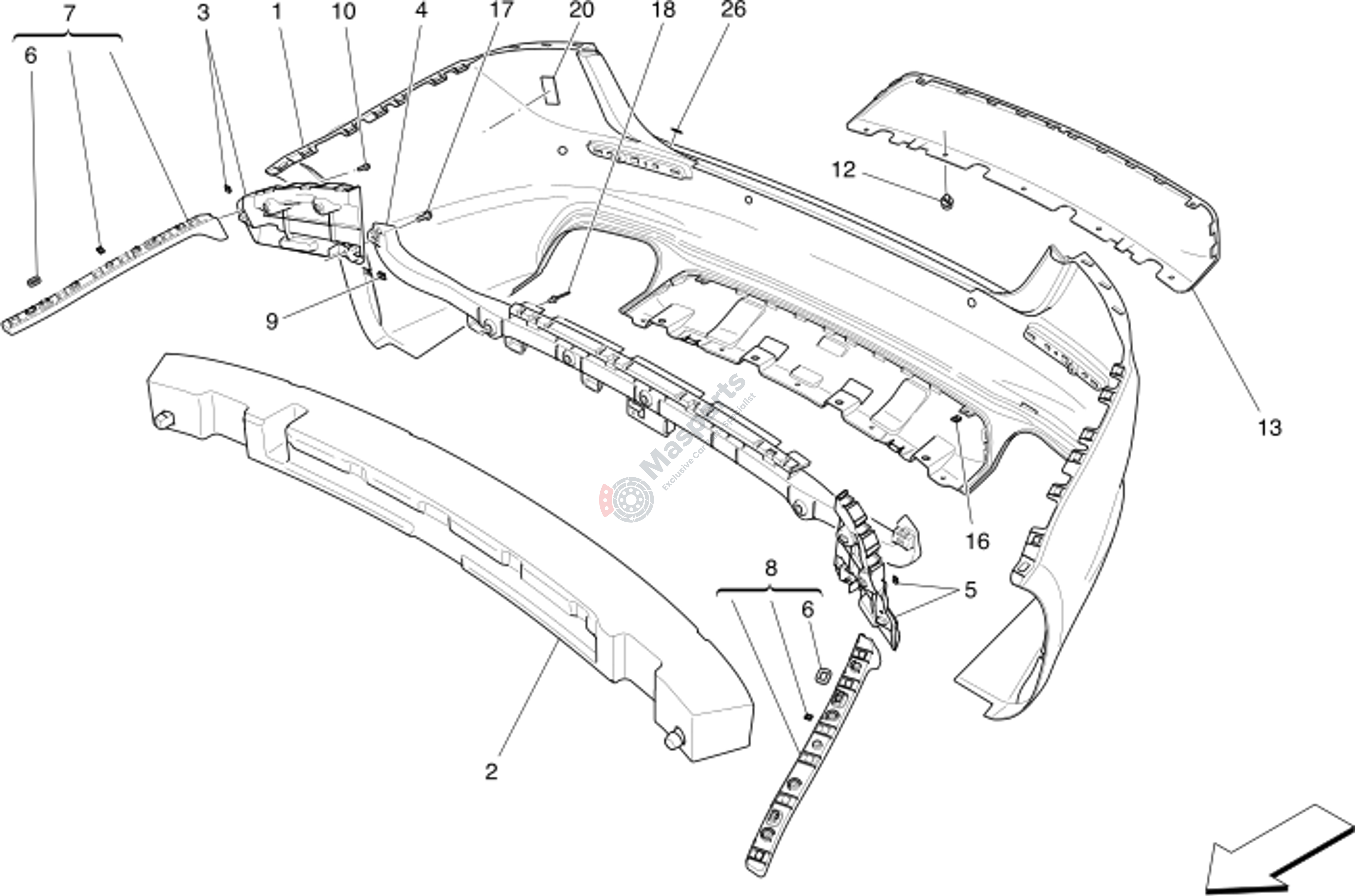

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670101005 | Rear Bumper Absorber |
$87.92 |
|
|
| 3 | M-670004467 | Rh Bracket Under Rear Backli |
$18.07 |
|
|
| 4 | M-670004471 | Upper Central Bracket |
$282.14 |
|
|
| 5 | M-670004469 | Lh Bracket Under Rear Backli |
$18.07 |
|
|
| 6 | M-675000064 | Gasket |
$2.83 |
|
|
| 7 | M-670004465 | R.H. Bumper Mounting Bracket |
$30.64 |
|
|
| 8 | M-670004463 | L.H. Bumper Mounting Bracket |
$30.64 |
|
|
| 9 | M-675000192 | Bracket |
$1.25 |
|
|
| 10 | M-675000326 | Screw |
$1.98 |
|
|
| 12 | M-670014562 | Fixing Button. |
$3.06 |
|
|
| 13 | M-673008197 | Central Lower Trim |
$356.98 |
|
|
| 16 | M-670034279 | Clip |
$3.69 |
|
|
| 17 | M-675000326 | Screw |
$1.98 |
|
|
| 18 | M-675000323 | Rivet |
$1.87 |
|
|
| 20 | M-670031643 | Pad |
$3.69 |
|
|
| 26 | M-675000546 | Pad |
$52.35 |
|
