Diagram image not available

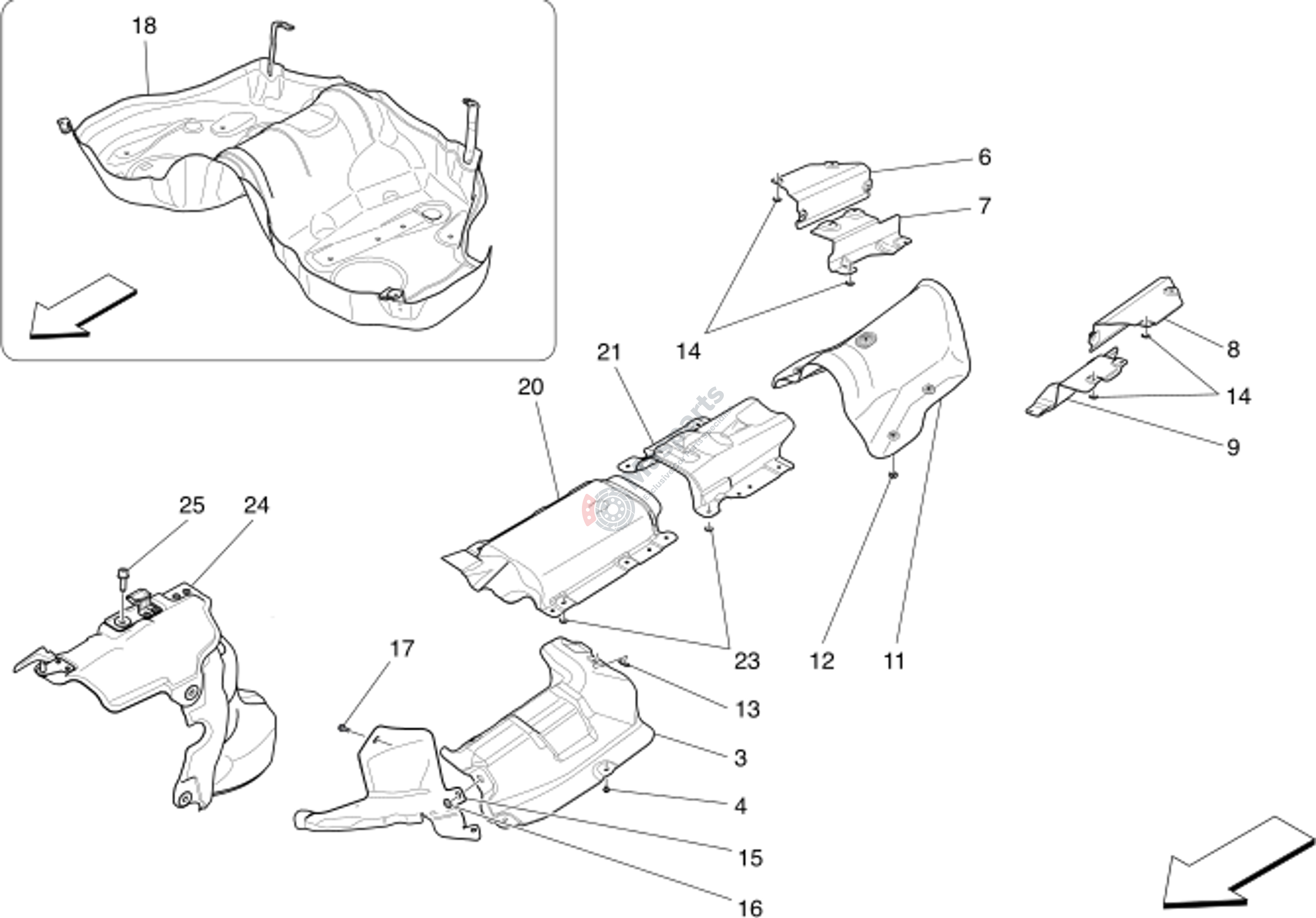

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670160340 | L.H.Silencer Heat Shield |
$39.66 |
|
|
| 4 | M-675000136 | Screw |
$2.30 |
|
|
| 6 | M-670004545 | Rear R.H. Heat Shield |
$24.35 |
|
|
| 7 | M-670004544 | Rear R.H. Heat Shield |
$25.74 |
|
|
| 8 | M-670004542 | Rear L.H. Heat Shield |
$24.35 |
|
|
| 9 | M-670004543 | Rear L.H. Heat Shield |
$25.56 |
|
|
| 11 | M-670037228 | Tank Heat Shield |
$84.16 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.84 |
|
|
| 13 | M-675000047 | Washer |
$5.69 |
|
|
| 14 | M-675000047 | Washer |
$5.69 |
|
|
| 15 | M-670106027 | Shield |
$34.73 |
|
|
| 16 | M-675000047 | Washer |
$5.69 |
|
|
| 17 | M-675000136 | Screw |
$2.30 |
|
|
| 18 | M-670157367 | Heat Cover |
$310.76 |
|
|
| 20 | M-670154550 | Front Drive Shaft Guard |
$60.48 |
|
|
| 21 | M-670154551 | Transmission Shaft Central P |
$359.93 |
|
|
| 23 | M-675000047 | Washer |
$5.69 |
|
|
| 24 | M-670154504 | Heat Shield |
$32.75 |
|
|
| 25 | M-675000088 | Screw |
$2.62 |
|
