Diagram image not available

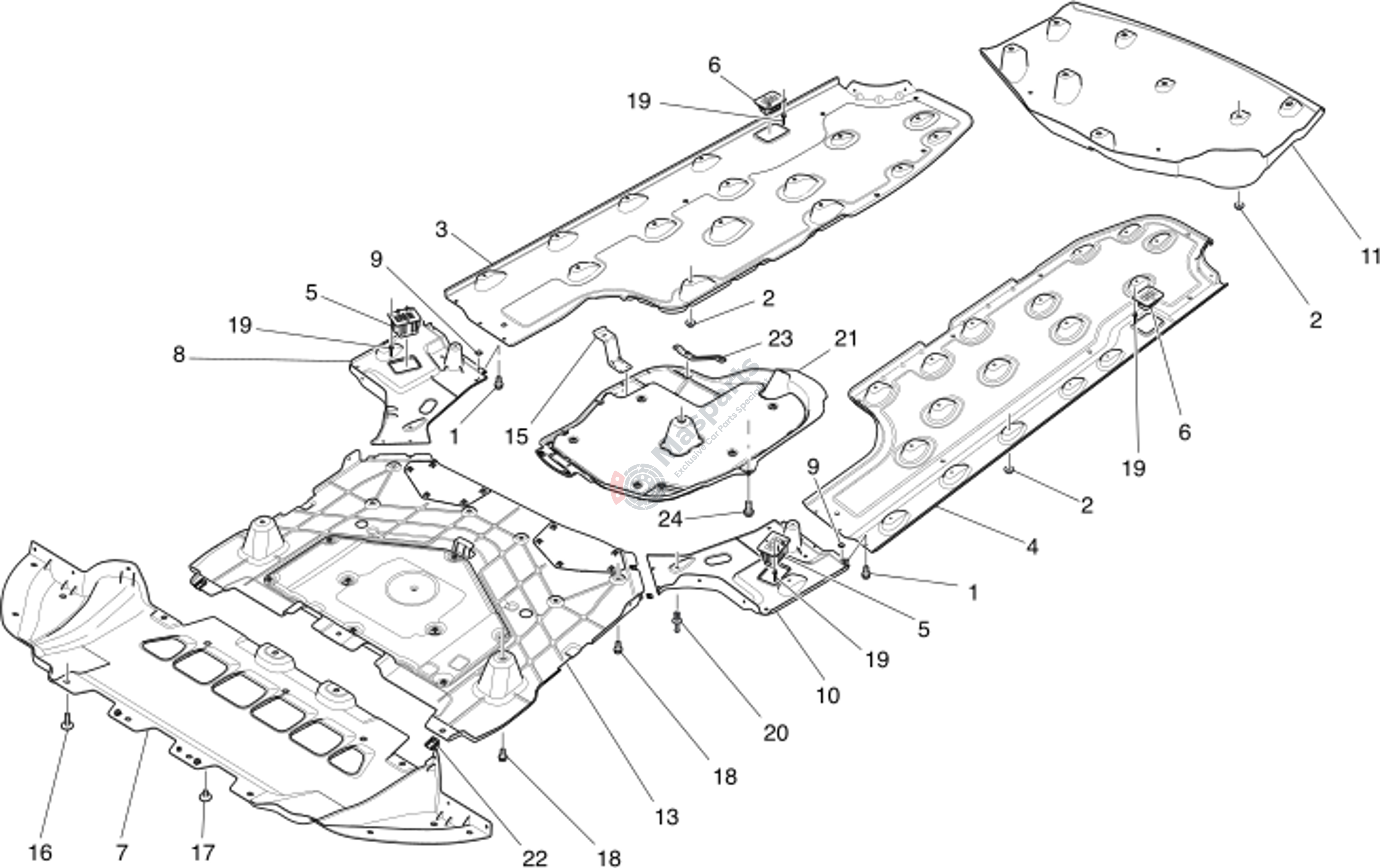

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.27 |
|
|
| 2 | M-675000324 | Special Nut |
$1.28 |
|
|
| 3 | M-670030796 | R.H. Central Aerodynamic Bot |
$645.47 |
|
|
| 4 | M-670004365 | Central Left Aerodynamic Gua |
$645.47 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$15.22 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$12.15 |
|
|
| 7 | M-670001748 | Cpl. Front Aerodynamic Shiel |
$109.03 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
$48.43 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.09 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
$47.37 |
|
|
| 11 | M-670181064 | Rear Aerodynamic Bottom Asse |
$85.77 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
$232.52 |
|
|
| 16 | M-670034505 | Special Screw |
$2.54 |
|
|
| 17 | M-670007383 | Fastening Pin |
$8.13 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.58 |
|
|
| 19 | M-675000323 | Rivet |
$1.87 |
|
|
| 20 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 21 | M-670155039 | Shield |
$110.95 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
$7.15 |
|
|
| 23 | M-670158073 | Bracket |
$11.49 |
|
|
| 24 | M-670005384 | Screw |
$2.47 |
|
