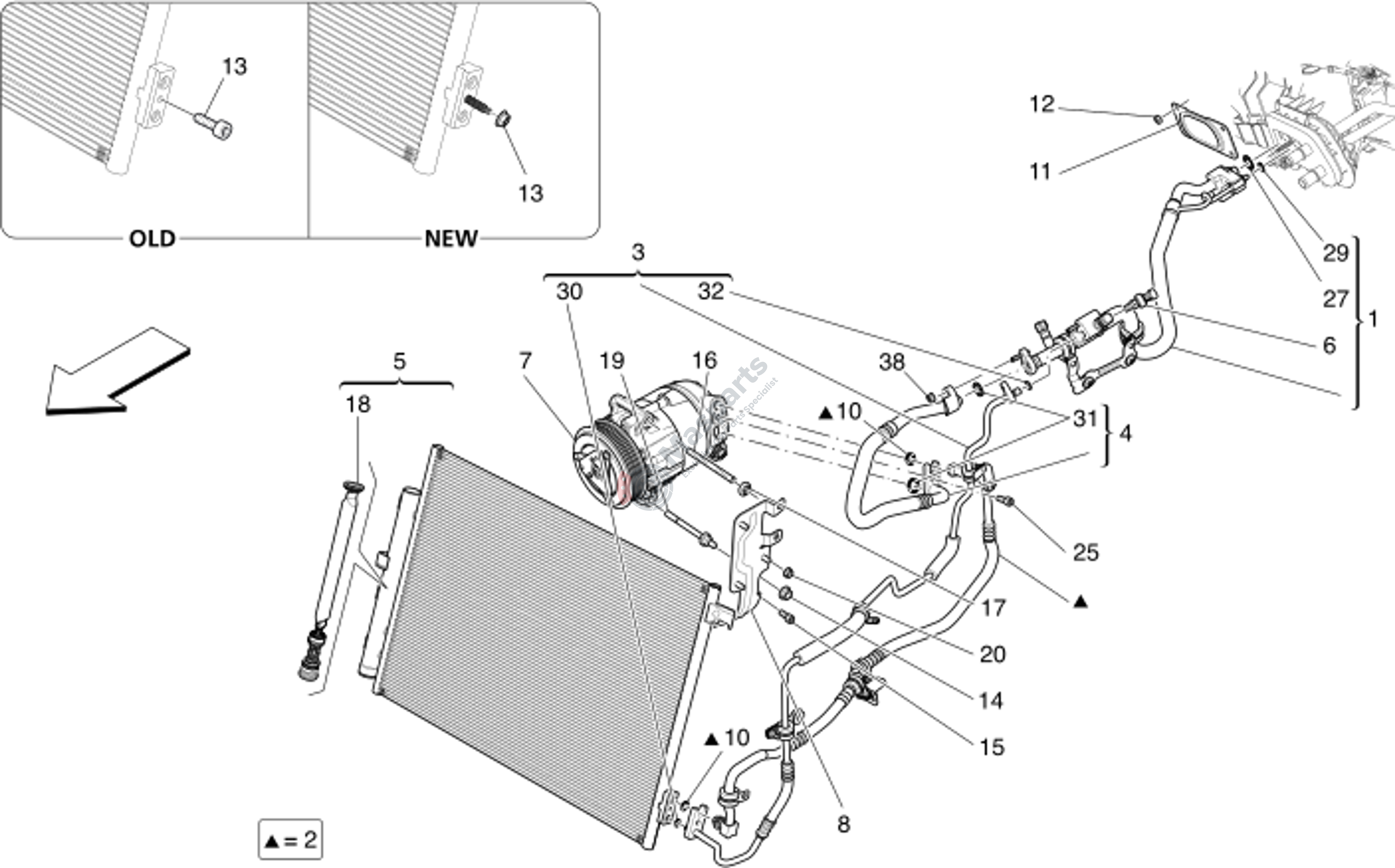

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154985 | Pipe From Evapourator To Uni |
$332.69 |
|
|
| 2 | M-670154981 | Pipe Ac - Compressor |
$125.11 |
|
|
| 3 | M-670154983 | Pipe Between Condenser And J |
$109.95 |
|
|
| 4 | M-670154978 | Pipe From Compressor To Unio |
$105.21 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$780.07 |
|
|
| 6 | M-670038668 | Pressostat |
$58.54 |
|
|
| 7 | M-675001009 | Ac Compressor |
$241.70 |
|
|
| 8 | M-670154500 | Timing Belt Cover |
$14.09 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.62 |
|
|
| 11 | M-670005087 | Plug |
$16.07 |
|
|
| 12 | M-675000315 | Nut |
$1.72 |
|
|
| 13 | M-675000456 | Screw |
$4.54 |
|
|
| 14 | M-675001096 | Nut |
$0.67 |
|
|
| 16 | M-675000902 | Threaded Stud |
$2.75 |
|
|
| 17 | M-675001090 | Nut |
$1.01 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$226.53 |
|
|
| 19 | M-675001019 | Screw |
$2.38 |
|
|
| 20 | M-675000969 | Nut |
$0.96 |
|
|
| 25 | M-675000249 | Screw |
$1.36 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.03 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.03 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.03 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.03 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.92 |
|
|
| 38 | M-675000315 | Nut |
$1.72 |
|
