Diagram image not available

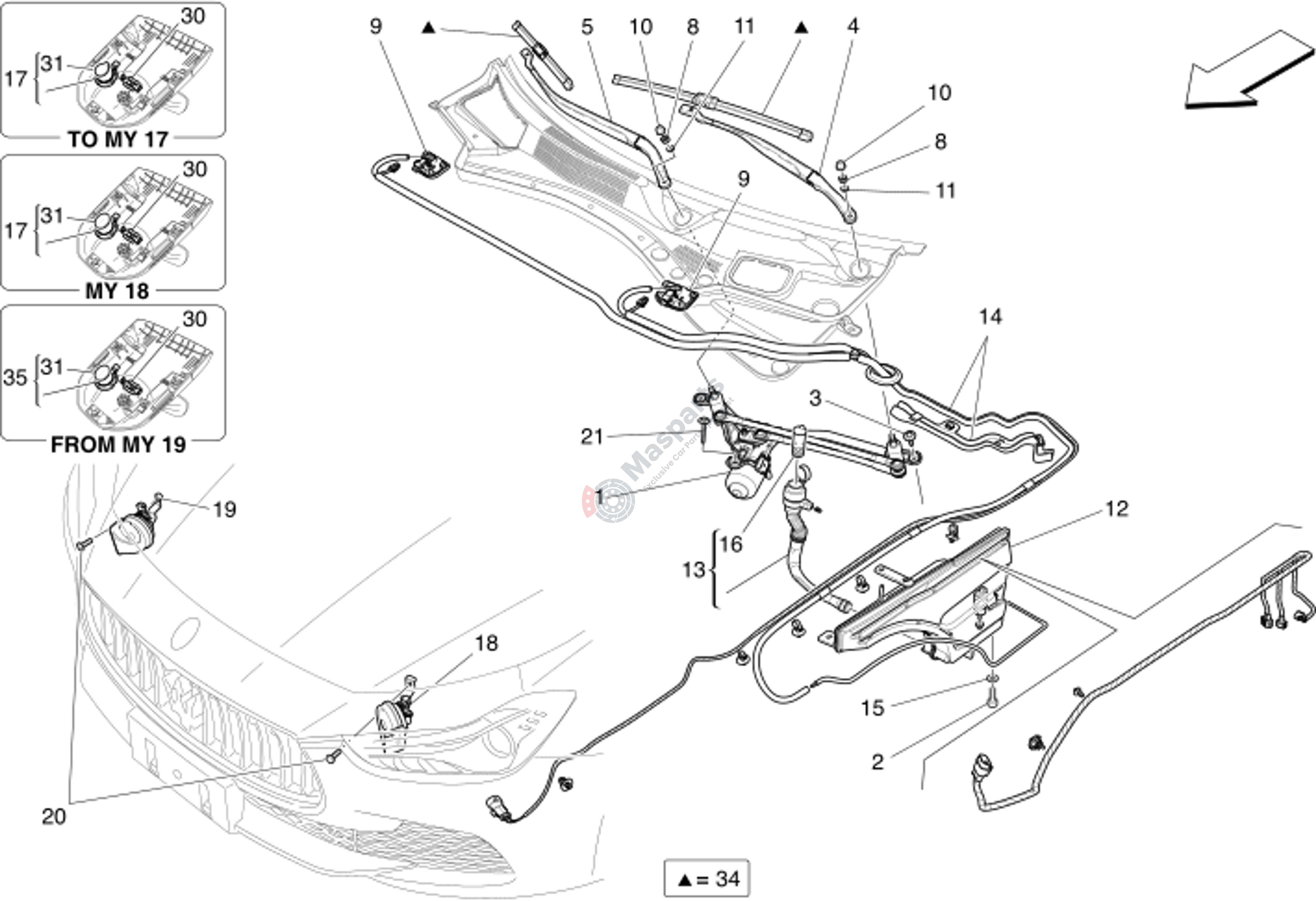

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105984 | Windshield Wiper Motor |
€356,04 |
|
|
| 2 | M-670030635 | Screw |
€1,78 |
|
|
| 3 | M-675000077 | Screw |
€1,99 |
|
|
| 4 | M-670007562 | Lhd Pilot Side Windshield Wi |
€143,65 |
|
|
| 5 | M-670001642 | Lhd Passenger Side Windscreen Arm |
€115,60 |
|
|
| 8 | M-675000175 | Nut |
€0,86 |
|
|
| 10 | M-670007188 | Protection Boot. |
€0,95 |
|
|
| 11 | M-675000176 | Washer |
€0,98 |
|
|
| 12 | M-670105311 | Windscreen Washer Tank |
€211,65 |
|
|
| 13 | M-670038848 | Tank Pipe |
€28,90 |
|
|
| 15 | M-670030893 | Special Washer |
€2,50 |
|
|
| 16 | M-675000049 | Air Filter |
€5,70 |
|
|
| 20 | M-675000433 | Screw |
€1,42 |
|
|
| 21 | M-670005392 | Screw |
€3,34 |
|
|
| 30 | M-675000651 | Clip Rain Sensor |
€4,88 |
|
|
| 34 | M-673008176 | Lhd Wiper Set |
€57,08 |
|
