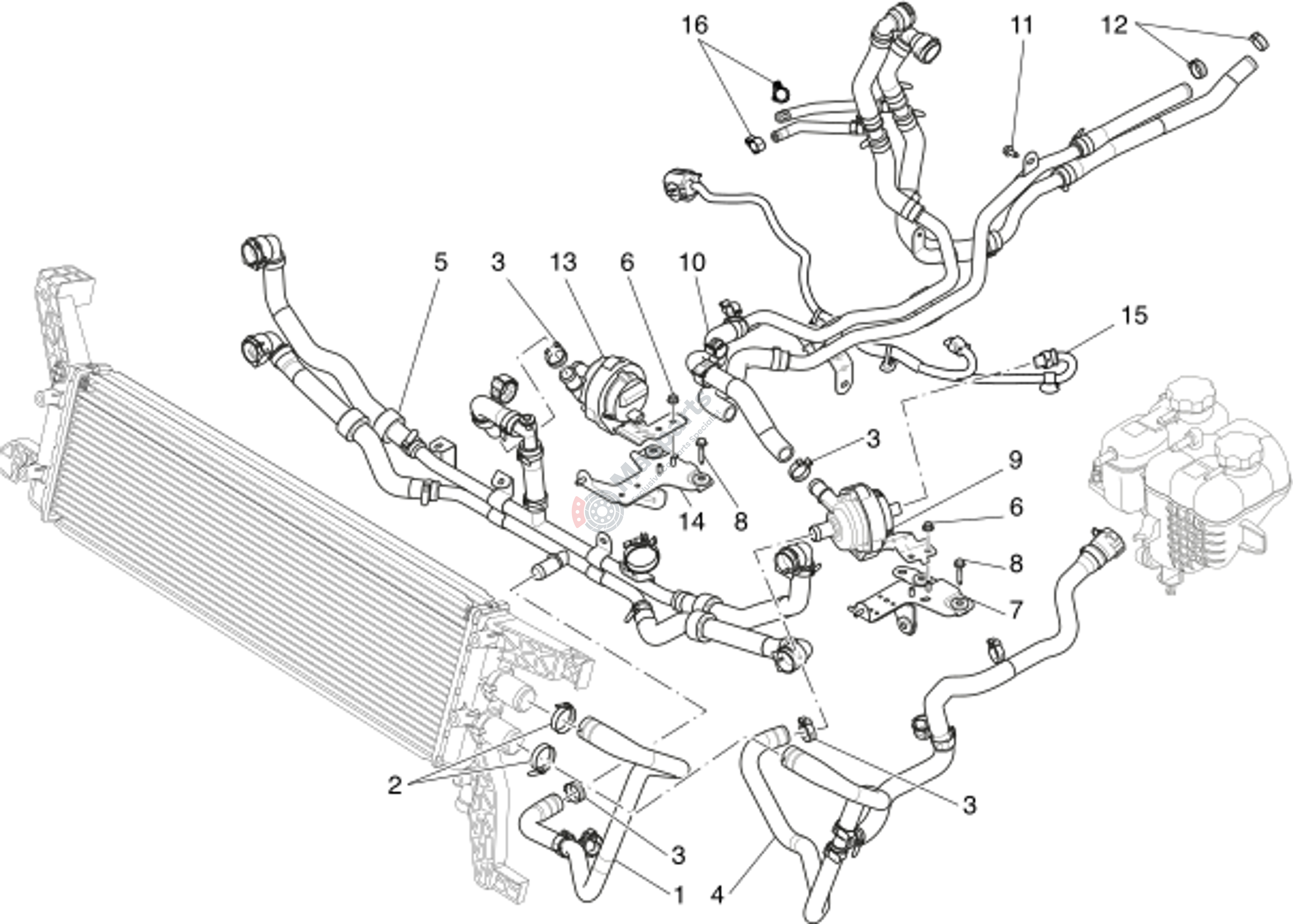

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154646 | Secondary Radiator Pipe |
$51.58 |
|
|
| 2 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.81 |
|
|
| 3 | M-675000658 | Snap Collar |
$5.65 |
|
|
| 4 | M-670173212 | Pipe Between Radiator And Pu |
$80.77 |
|
|
| 5 | M-670177868 | Manifold |
$168.40 |
|
|
| 6 | M-675000794 | Flanged Nut |
$1.53 |
|
|
| 7 | M-670154659 | Bracket |
$28.96 |
|
|
| 8 | M-675000468 | Screw |
$2.29 |
|
|
| 9 | M-670154651 | Electric Water Pump |
$308.25 |
|
|
| 10 | M-670154648 | Hose Main Electric Pump Outl |
$270.82 |
|
|
| 11 | M-675001117 | Screw |
$1.12 |
|
|
| 12 | M-675000372 | Strap Collar |
$1.81 |
|
|
| 13 | M-670154656 | Secondary Electric Water Pum |
$332.87 |
|
|
| 14 | M-670154660 | Bracket |
$28.96 |
|
|
| 15 | M-670155291 | Water Pump Bridle |
$40.86 |
|
|
| 16 | M-675000369 | Strap Collar |
$1.72 |
|
