Diagram image not available

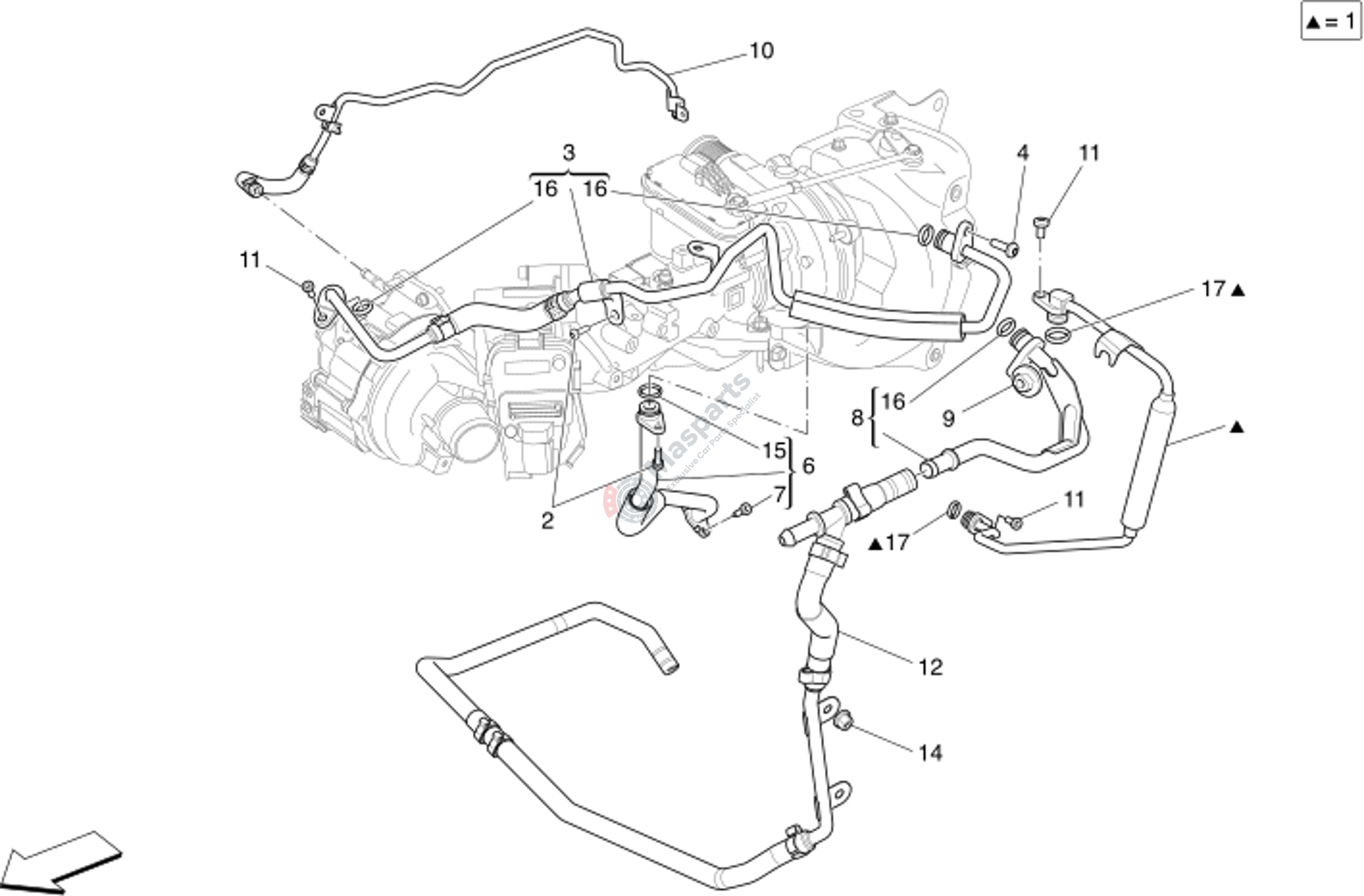

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670053743 | Turbocharger Oil Pipe |
$75.47 |
|
|
| 2 | M-675000843 | Screw |
$2.45 |
|
|
| 3 | M-670053644 | Rigid Pipe |
$124.97 |
|
|
| 4 | M-675000970 | Screw |
$2.04 |
|
|
| 6 | M-670053503 | Oil Drain Pipe |
$85.52 |
|
|
| 7 | M-675000963 | Screw |
$3.64 |
|
|
| 8 | M-670053742 | Rigid Pipe |
$39.83 |
|
|
| 9 | M-675000964 | Flange Nut |
$1.16 |
|
|
| 10 | M-670053643 | Water E-Boost Pipe |
$78.40 |
|
|
| 11 | M-675001014 | Screw |
$2.37 |
|
|
| 12 | M-670154649 | Degassing Pipe |
$75.80 |
|
|
| 14 | M-675000794 | Flanged Nut |
$1.52 |
|
|
| 15 | M-673013792 | O-Ring 1/44572/81 |
$10.02 |
|
|
| 16 | M-673013793 | O-Ring 1/44568/81 |
$9.36 |
|
|
| 17 | M-673013791 | O-Ring 1/44569/81 |
$10.67 |
|
