Diagram image not available

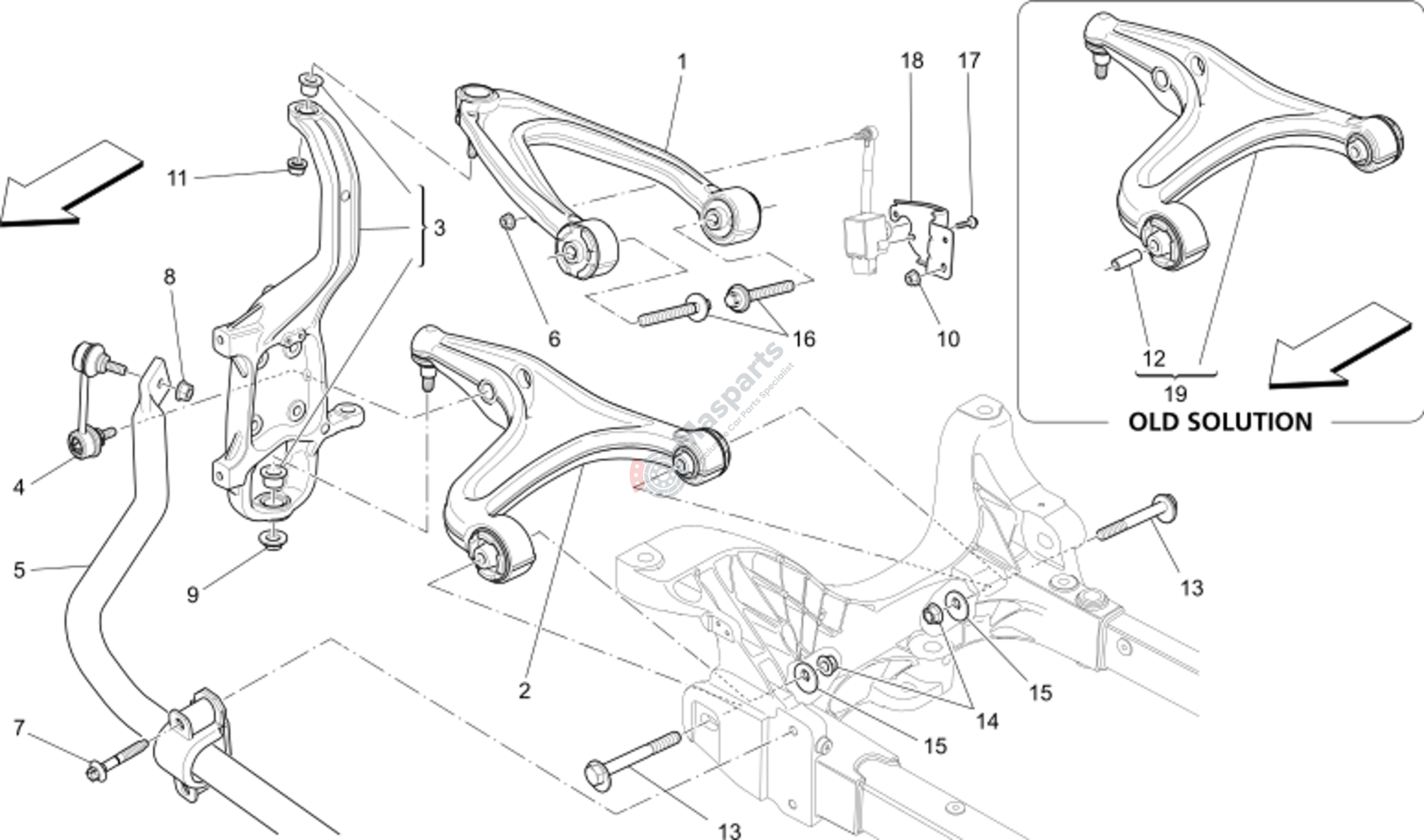

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004186 | Cpl Front Rh Suspension Uppe |
$559.98 |
|
|
| 2 | M-670039029 | Complete Rh Front Lower Leve |
$515.64 |
|
|
| 4 | M-670005004 | Small Link |
$56.11 |
|
|
| 5 | M-670007274 | Front Stabiliser Bar |
$287.22 |
|
|
| 7 | M-675000393 | Screw |
$4.04 |
|
|
| 8 | M-675000124 | Nut |
$0.96 |
|
|
| 9 | M-675000082 | Nut |
$4.37 |
|
|
| 11 | M-670002916 | Nut |
$2.44 |
|
|
| 12 | M-670101760 | Spacer Bushing Pt1 |
$18.27 |
|
|
| 13 | M-670002853 | Screw With Eccentric M14X118 |
$17.84 |
|
|
| 14 | M-670002854 | Special Nut M14X2 |
$2.05 |
|
|
| 15 | M-670002806 | Special Washer With Eccentri |
$6.06 |
|
|
| 16 | M-670007895 | Special Screw |
$7.54 |
|
|
| 17 | M-675000197 | Screw |
$2.30 |
|
