Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

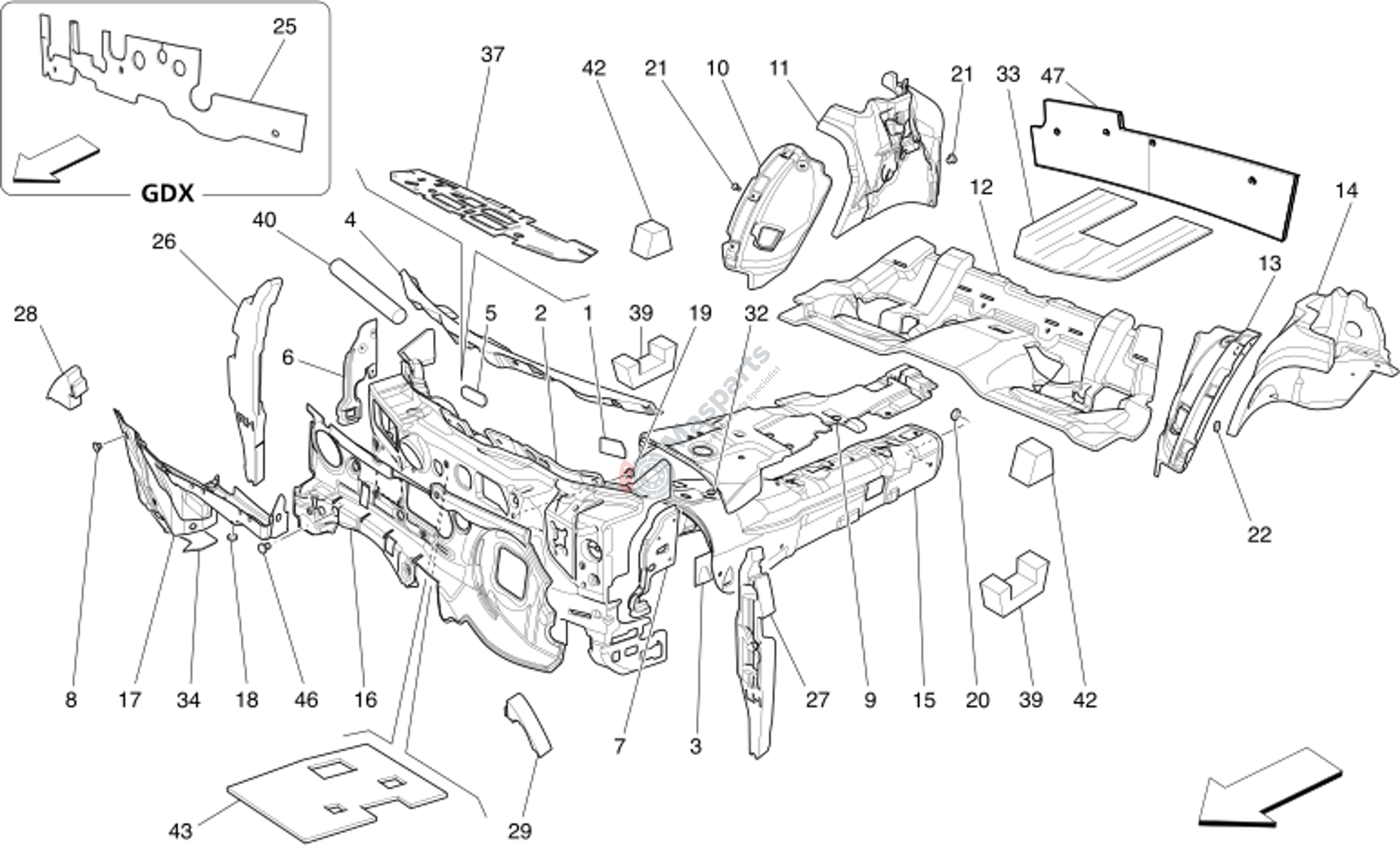

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.66 |
|
|
| 2 | M-670105244 | Insulation |
$216.68 |
|
|
| 3 | M-670001856 | Soundproofing |
$3.55 |
|
|
| 4 | M-670002563 | Soundproof Panel Under Winds |
$48.43 |
|
|
| 5 | M-675000417 | Oval Protection Sheet 48X140 |
$6.93 |
|
|
| 6 | M-670005499 | Compartment Insulation |
$3.83 |
|
|
| 7 | M-670005500 | Compartment Insulation |
$3.83 |
|
|
| 9 | M-670037073 | Central Insulation |
$41.39 |
|
|
| 10 | M-670037434 | Front Part Of Rear Rh Wheelh |
$19.41 |
|
|
| 11 | M-670038084 | Rear Part Of Rear Rh Wheelho |
$21.77 |
|
|
| 12 | M-670108268 | Insulation |
$47.04 |
|
|
| 13 | M-670037435 | Front Part Of Rear Lh Wheelh |
$19.41 |
|
|
| 14 | M-670038083 | Rear Part Of Rear Lh Wheelho |
$21.77 |
|
|
| 15 | M-670155008 | Ext. Tunnel Soundproofing Gu |
$54.33 |
|
|
| 16 | M-670001780 | Engine Compartment Insulatio |
$25.61 |
|
|
| 17 | M-670104212 | Upper Rh Engine Compart. Ins |
$33.75 |
|
|
| 18 | M-675000453 | Plate |
$1.61 |
|
|
| 20 | M-675000411 | Washer |
$3.58 |
|
|
| 22 | M-675000424 | Plug |
$8.47 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.25 |
|
|
| 33 | M-670030941 | Soundproofing Panel |
$8.78 |
|
|
| 37 | M-670009264 | Dash Soundproofing (Lhd) |
$70.74 |
|
|
| 39 | M-670037611 | Insulation Pad |
$8.57 |
|
|
| 40 | M-670037612 | Dashboard Insulation Pad |
$9.24 |
|
|
| 42 | M-670037614 | Upper Insulation Pad |
$7.38 |
|
|
| 43 | M-670172653 | Floor Insulation Pad |
$11.50 |
|
