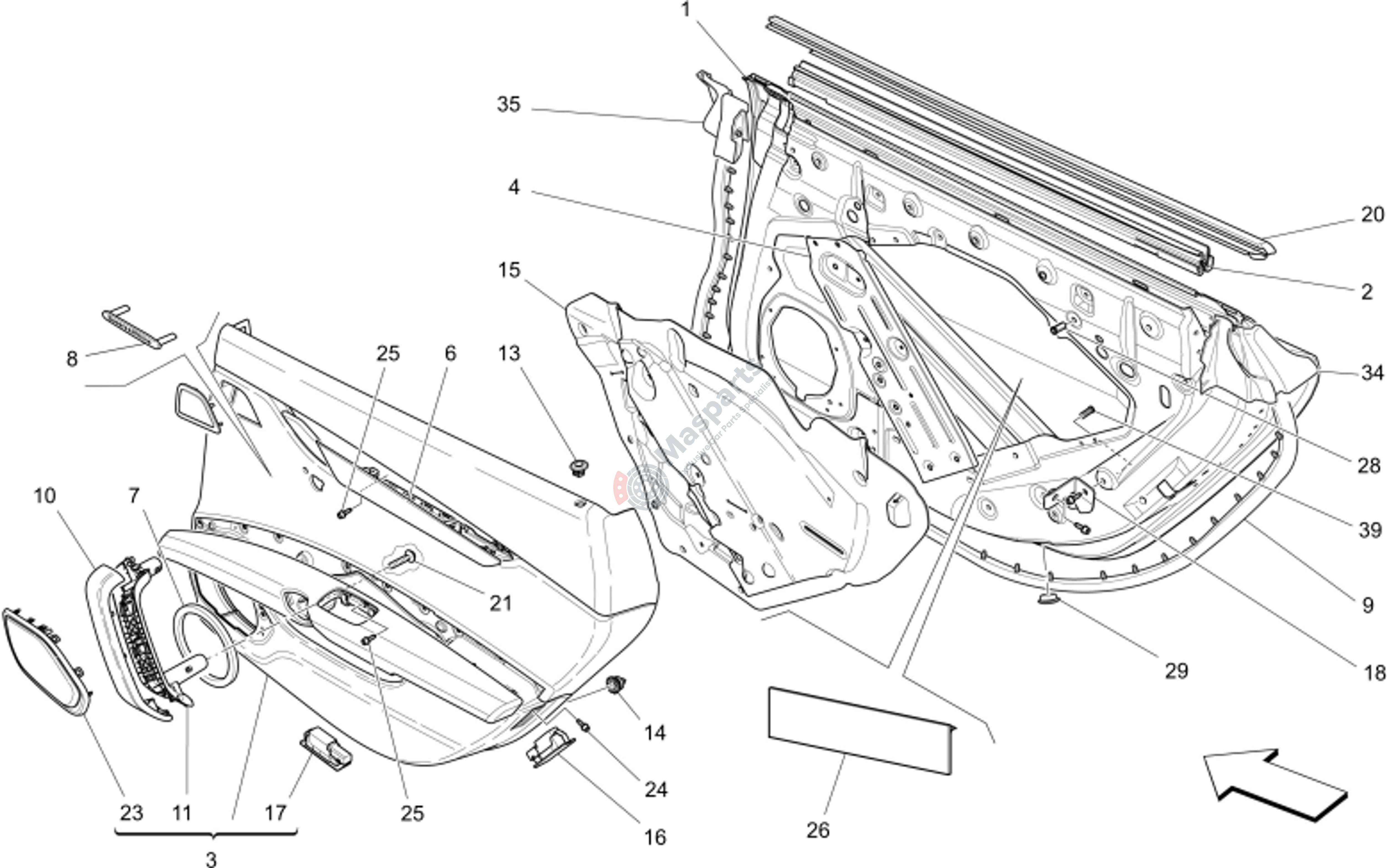

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008061 | Cpl Rh Rear Door |
$2,081.30 |
|
|
| 2 | M-670030053 | R.H. Rear Inner Glass Scrape |
$76.05 |
|
|
| 4 | M-670004787 | Rh Rear Door Central Reinfor |
$28.22 |
|
|
| 7 | M-673001453 | Gasket |
$22.51 |
|
|
| 8 | M-673001459 | Label Bower & Wilkins |
$37.76 |
|
|
| 9 | M-670101784 | Rh Rear Door Gasket |
$140.87 |
|
|
| 13 | M-673001444 | Rear Door Bushing |
$57.23 |
|
|
| 14 | M-670220013 | Door Panel Fastening Pin |
$2.86 |
|
|
| 15 | M-670105570 | Water Shield For Rh Rear Doo |
$54.93 |
|
|
| 16 | M-670007082 | Door Light |
$30.85 |
|
|
| 17 | M-675000265 | Door Lamp Black |
$11.24 |
|
|
| 20 | M-670009860 | Rh Rear Door Glass Scraper G |
$224.58 |
|
|
| 21 | M-673002001 | Screw For Carrier Pull Handl |
$12.88 |
|
|
| 24 | M-670153171 | Screw |
$2.04 |
|
|
| 25 | M-670153171 | Screw |
$2.04 |
|
|
| 26 | M-670034380 | Doors Soundproofing Adhesive |
$3.47 |
|
|
| 28 | M-670005149 | Rivet |
$2.83 |
|
|
| 34 | M-670101785 | Rh Rear Door Gasket |
$85.17 |
|
|
| 35 | M-670101779 | Rh Gasket |
$85.17 |
|
|
| 39 | M-670155282 | Pin |
$2.83 |
|
