Diagram image not available

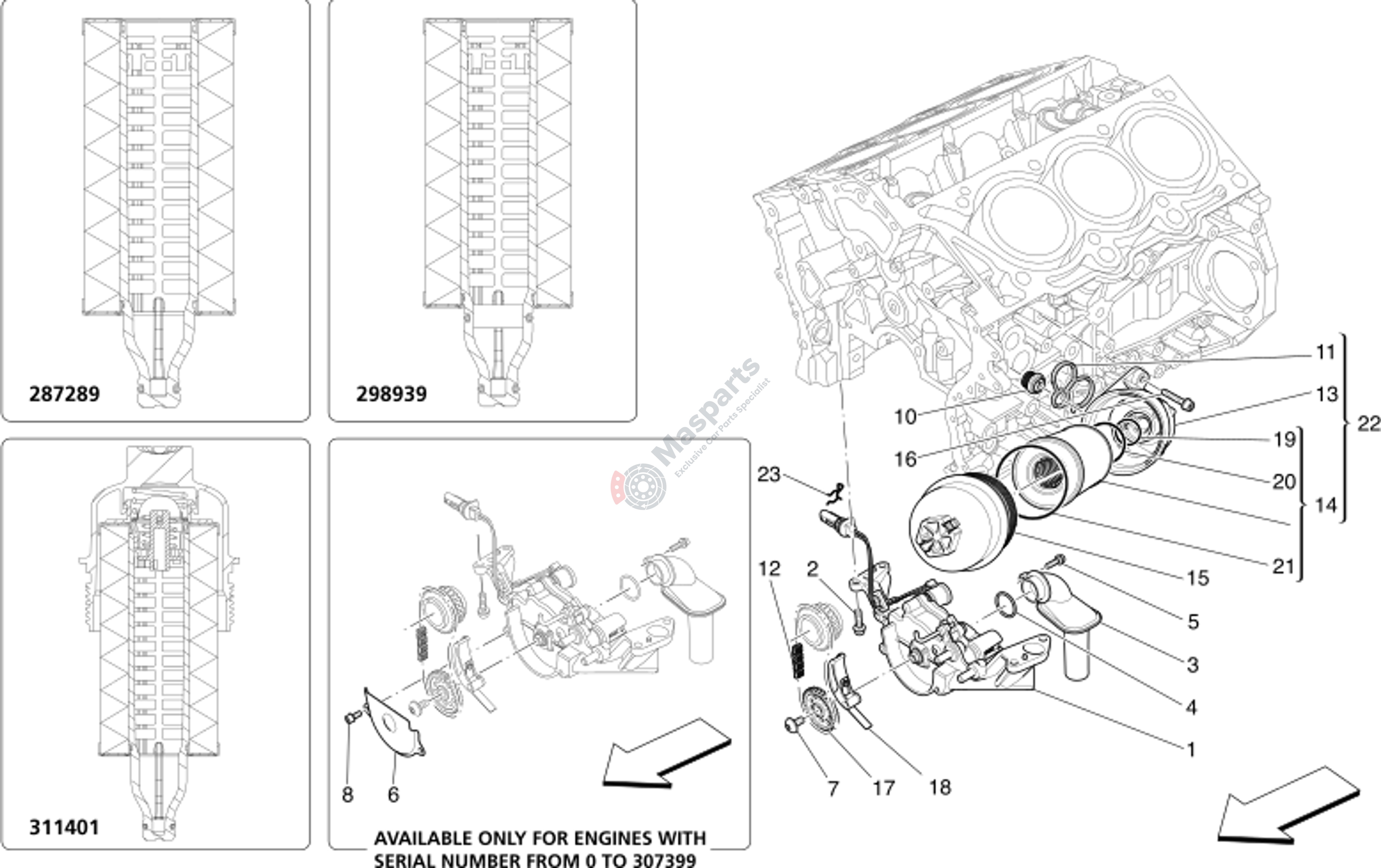

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-853065 | Oil Pump |
€428,40 |
|
|
| 2 | M-282397 | Screw |
€2,13 |
|
|
| 3 | M-338007 | Awd Oil Catching |
€28,15 |
|
|
| 4 | M-139934 | O Ring For Union To Oil T |
€2,66 |
|
|
| 5 | M-282397 | Screw |
€2,13 |
|
|
| 6 | M-275702 | Oil Pump Shield |
€9,37 |
|
|
| 7 | M-284021 | Screw |
€18,07 |
|
|
| 8 | M-282391 | Screw |
€3,40 |
|
|
| 10 | M-287292 | Oil Non-Return Valve |
€723,35 |
|
|
| 12 | M-328308 | Oil Pump Chain |
€24,66 |
|
|
| 13 | M-298937 | Oil Filter Support |
€102,00 |
|
|
| 14 | M-311401 | Oil Filter Cartridge With Cap |
€41,55 |
|
|
| 16 | M-231622 | Socket Head Screw With Washe |
€0,98 |
|
|
| 17 | M-276592 | Oil Pump Controm Toothed Whe |
€18,86 |
|
|
| 18 | M-276594 | Oil Pump Chain Tightener |
€14,32 |
|
|
| 19 | M-300526 | O-Ring D25X11 |
€2,66 |
|
|
| 20 | M-301565 | O-Ring (V6 Oil Filter Cartri |
€1,08 |
|
|
| 21 | M-673002892 | Oil Filter Cartridge O-Ring |
€18,35 |
|
|
| 22 | M-311356 | Cpl V6 Oil Filter Support (W |
€359,55 |
|
|
| 23 | M-304893 | Clip |
€2,36 |
|
