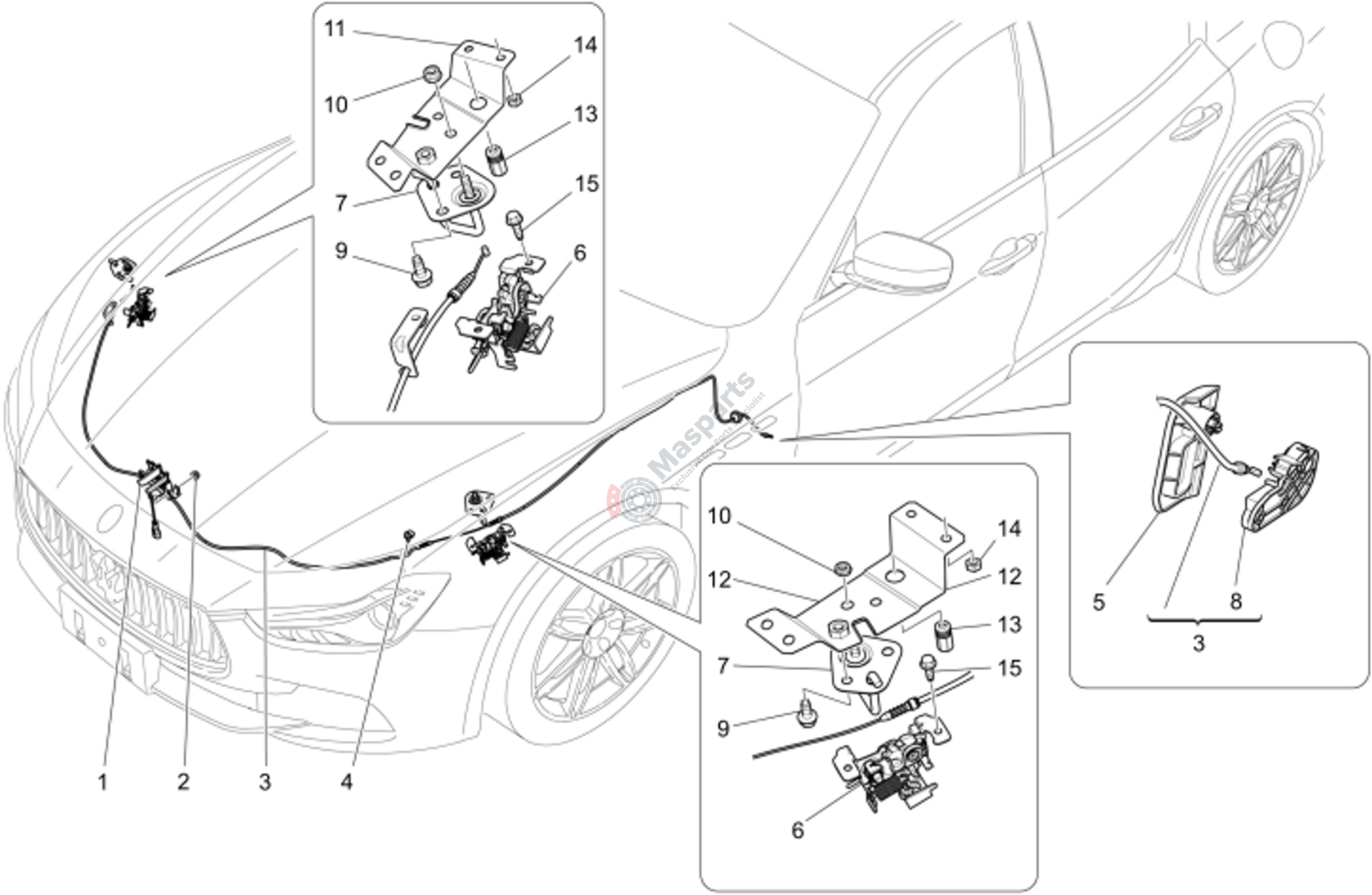

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670030861 | Flanged Nut |
$1.47 |
|
|
| 3 | M-670007133 | Engine Bonnet Opening Cable |
$74.79 |
|
|
| 4 | M-675000353 | Bowden Cable Fastening Clip |
$3.31 |
|
|
| 6 | M-670152938 | Bonnet Lock |
$94.34 |
|
|
| 7 | M-670007604 | Hood Lock Striker |
$60.38 |
|
|
| 8 | M-675000078 | Bracket |
$9.28 |
|
|
| 9 | M-670030298 | Screw |
$2.02 |
|
|
| 10 | M-670030299 | Nut |
$1.47 |
|
|
| 13 | M-675000410 | Lh Rawplug |
$6.32 |
|
|
| 14 | M-675000092 | Nut |
$1.24 |
|
|
| 15 | M-670030297 | Screw |
$2.05 |
|
