Diagram image not available

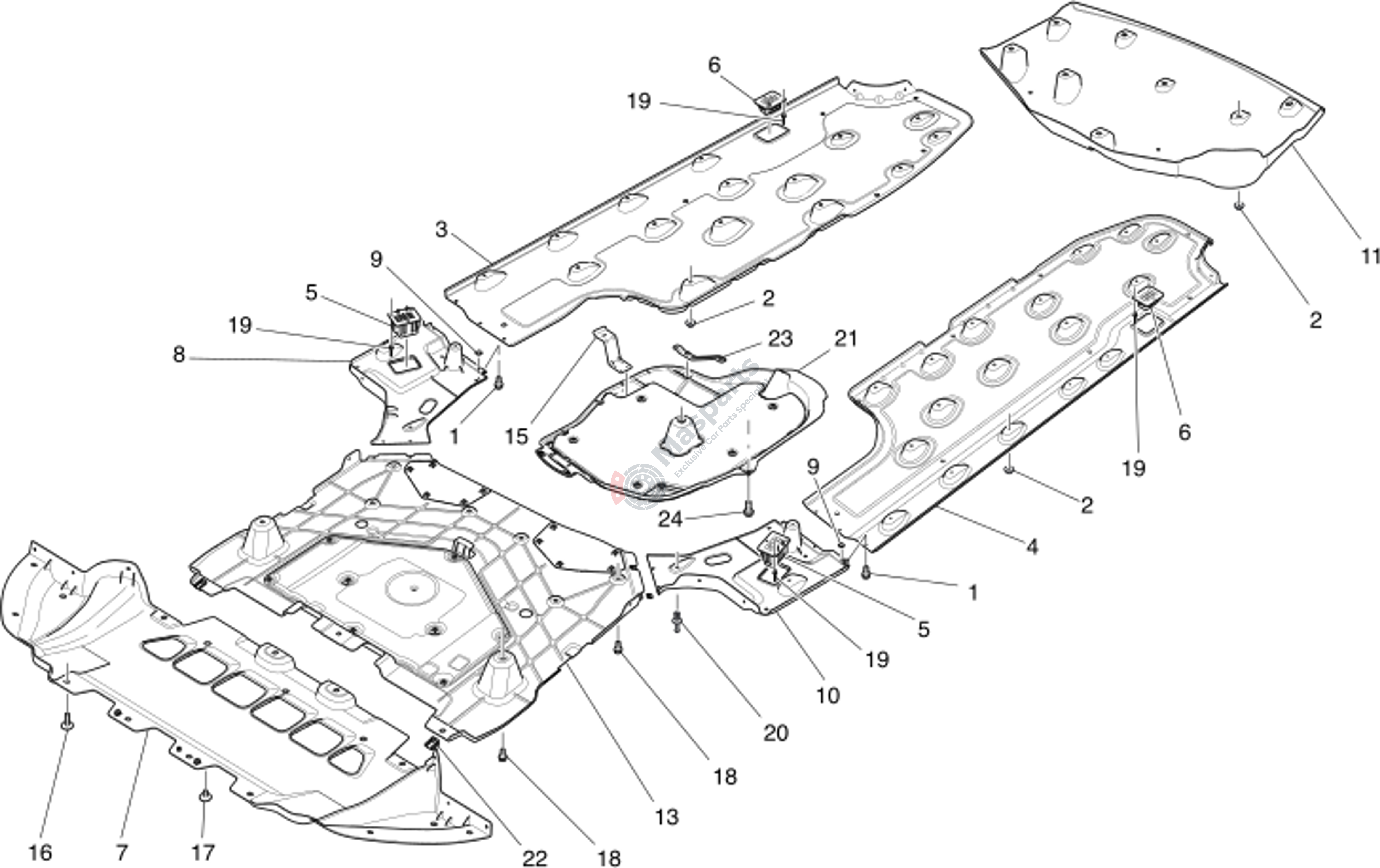

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
€1,98 |
|
|
| 2 | M-675000324 | Special Nut |
€1,11 |
|
|
| 3 | M-670030796 | R.H. Central Aerodynamic Bot |
€561,96 |
|
|
| 4 | M-670004365 | Central Left Aerodynamic Gua |
€561,96 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
€13,25 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
€10,58 |
|
|
| 7 | M-670009250 | Cpl Front Aerodynamic Shield |
€94,92 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
€42,17 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
€1,82 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
€41,24 |
|
|
| 11 | M-670105266 | Rear Aerodynamic Bottom Asse |
€62,66 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
€202,44 |
|
|
| 15 | M-670009630 | Under Engine Rh Shield Brack |
€8,15 |
|
|
| 16 | M-670034505 | Special Screw |
€2,21 |
|
|
| 17 | M-670007383 | Fastening Pin |
€7,07 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
€2,24 |
|
|
| 19 | M-675000323 | Rivet |
€1,63 |
|
|
| 20 | M-675000150 | Fixing Button. |
€0,86 |
|
|
| 21 | M-670009238 | Cpl Under Engine Shield (Die |
€146,28 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
€6,22 |
|
|
| 23 | M-670009631 | Under Engine Lh Shield Brack |
€7,68 |
|
|
| 24 | M-670005384 | Screw |
€2,15 |
|
