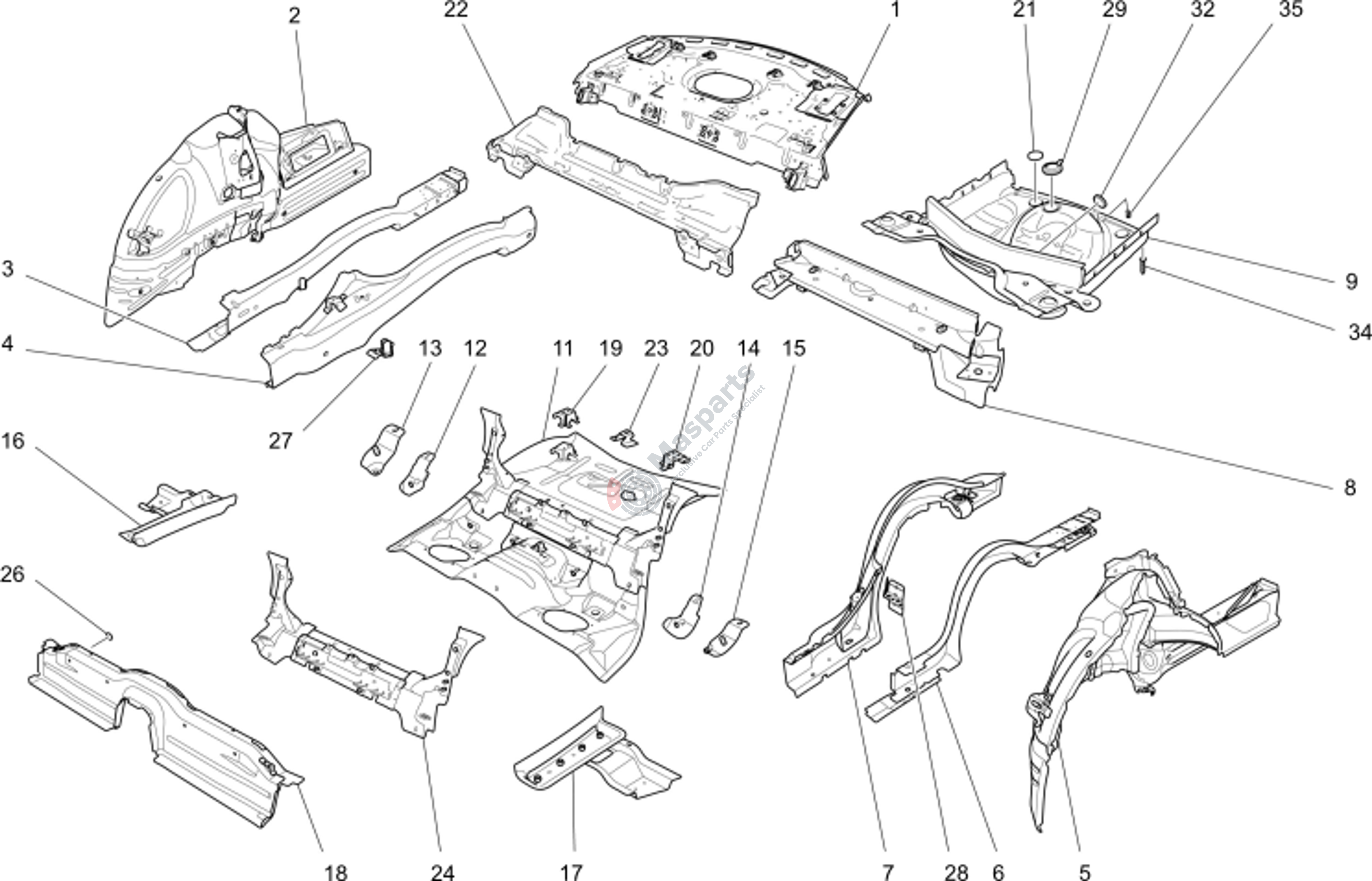

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009434 | Rear Under Window Panel. |
$304.08 |
|
|
| 2 | M-673009916 | Cpl Rh Rear Wheel House |
$396.22 |
|
|
| 3 | M-673007578 | Rh Rear Floor Longitudinal M |
$220.94 |
|
|
| 4 | M-673009042 | Rh Outer Rear Side Member ˇ |
$513.31 |
|
|
| 5 | M-673009915 | Cpl Lh Rear Wheel House |
$335.99 |
|
|
| 6 | M-673007577 | Lh Rear Floor Longitudinal M |
$391.41 |
|
|
| 7 | M-673009043 | Lh Outer Rear Side Member ˇ |
$447.60 |
|
|
| 8 | M-673010187 | Complete Rear Cross Member |
$234.28 |
|
|
| 9 | M-673009295 | Spare Wheel Compartment |
$654.54 |
|
|
| 11 | M-673005385 | Rear Floor |
$253.57 |
|
|
| 12 | M-673000380 | Rh Rear Seat Belt Fastening |
$286.65 |
|
|
| 13 | M-673000419 | Rh Rear Seat Fastening Reinf |
$248.56 |
|
|
| 14 | M-673000381 | Lh Rear Seat Belt Fastening |
$250.47 |
|
|
| 15 | M-673000420 | Lh Rear Seat Fastening Reinf |
$248.56 |
|
|
| 16 | M-673000379 | Rh Small Side Member Gearshi |
$69.18 |
|
|
| 17 | M-673009048 | Lh Small Side Member Gearshi |
$72.38 |
|
|
| 18 | M-673000790 | Rear Underseat Cross Member |
$152.37 |
|
|
| 19 | M-673000436 | Rh Luggage Net Fastening Rei |
$37.12 |
|
|
| 20 | M-673000437 | Lh Luggage Net Fastening Rei |
$24.02 |
|
|
| 21 | M-670005954 | Plug |
$4.41 |
|
|
| 22 | M-673000407 | Cpl Rear Seat Back Cross Mem |
$123.80 |
|
|
| 23 | M-673001060 | Rear Seats Cushion Support B |
$25.70 |
|
|
| 24 | M-673001059 | Isofix Crossmember |
$270.46 |
|
|
| 26 | M-675000244 | Plug |
$0.96 |
|
|
| 27 | M-670007021 | Bracket |
$503.01 |
|
|
| 28 | M-670007023 | Bracket |
$503.01 |
|
|
| 29 | M-670030797 | Wheel Compartment Cap |
$9.97 |
|
|
| 32 | M-675000518 | Cap 70 Mm (Diam.) |
$3.60 |
|
|
| 34 | M-675000624 | Specila Screw |
$1.67 |
|
|
| 35 | M-675000715 | Nutserts |
$1.67 |
|
