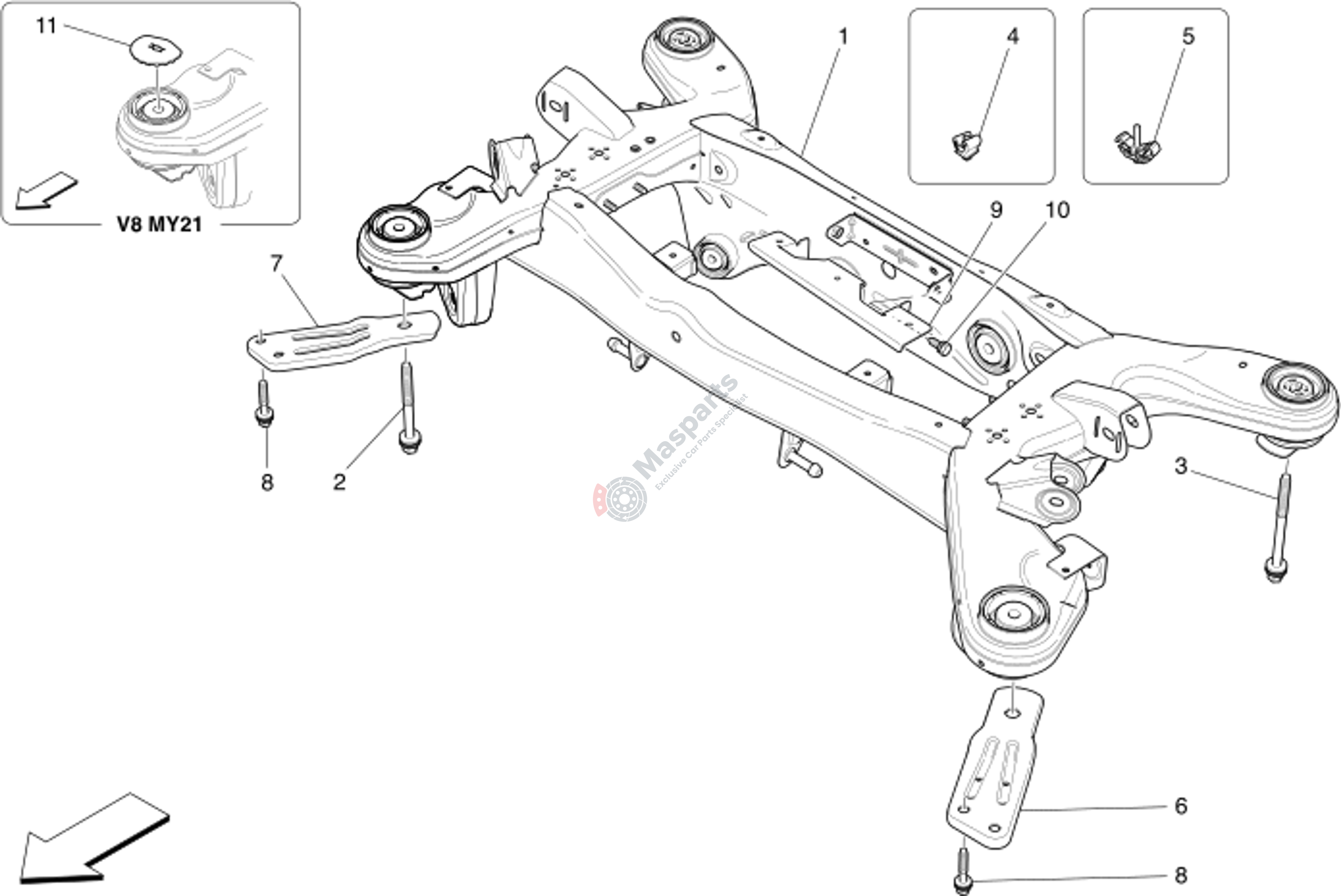

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670106292 | Rear Cpl Frame Suspension |
€1.700,00 |
|
|
| 2 | M-670002915 | Screw |
€12,46 |
|
|
| 3 | M-670002768 | Special Screw |
€16,48 |
|
|
| 4 | M-675000356 | Clip |
€1,49 |
|
|
| 5 | M-675000072 | Clip |
€2,05 |
|
|
| 6 | M-670007232 | Lh Bracket |
€7,07 |
|
|
| 7 | M-670007233 | Rh Bracket |
€7,07 |
|
|
| 8 | M-670039843 | Screw |
€2,12 |
|
|
| 9 | M-670039141 | Pipe Bracket |
€10,58 |
|
|
| 10 | M-675000438 | Screw |
€1,43 |
|
