Diagram image not available

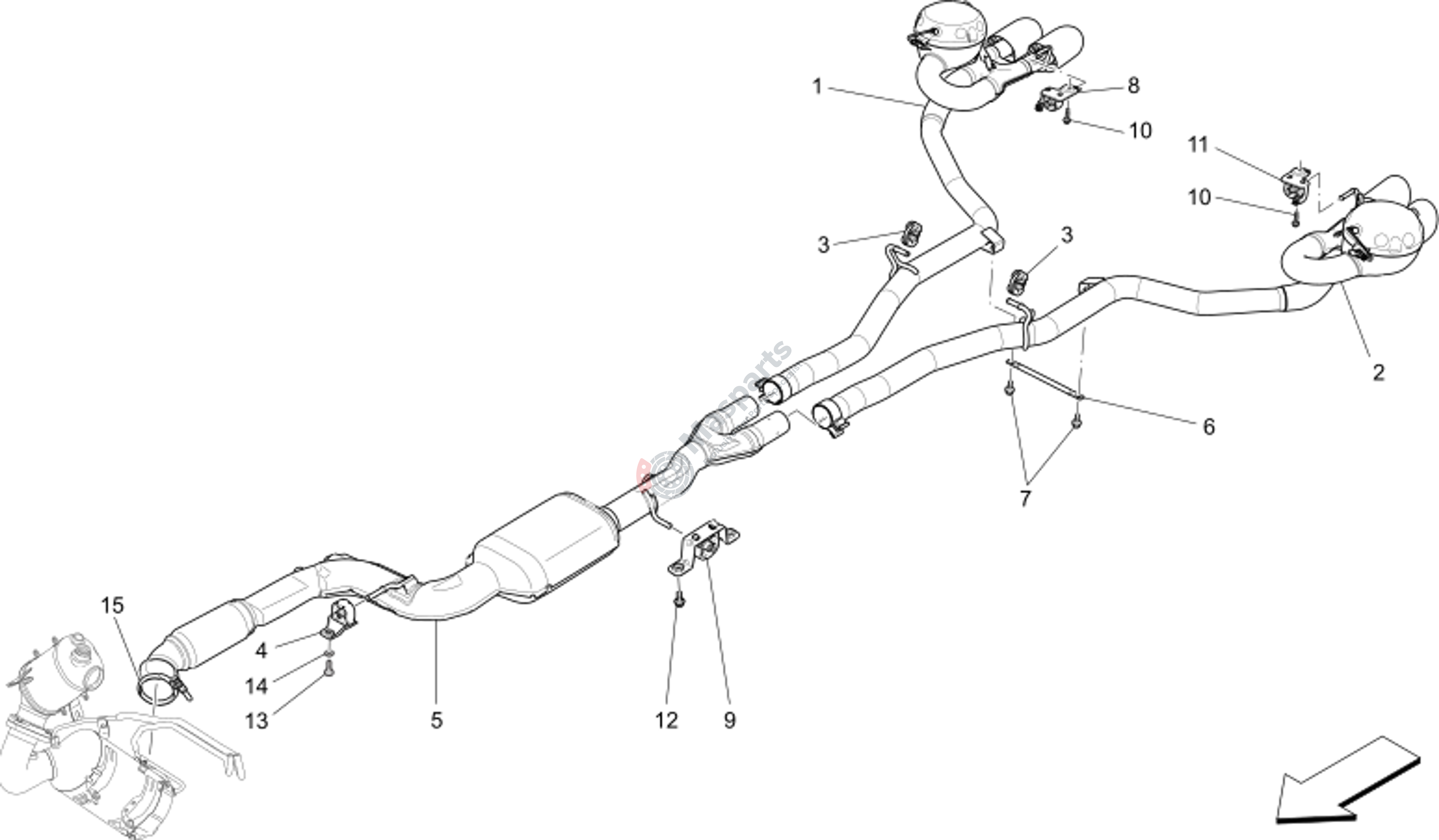

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670006945 | Rear Right Silencer |
$1,880.44 |
|
|
| 2 | M-670006946 | Rear Left Silencer |
$1,880.44 |
|
|
| 3 | M-675000059 | Small Block |
$16.05 |
|
|
| 4 | M-670001494 | Central Support |
$36.18 |
|
|
| 5 | M-670105271 | Hot-End (Scr) |
$2,608.97 |
|
|
| 6 | M-670005639 | Spacer |
$41.68 |
|
|
| 7 | M-675000463 | Screw |
$1.77 |
|
|
| 8 | M-670005370 | Rh Rear Bracket |
$124.52 |
|
|
| 9 | M-670034469 | Central Muffler Fastening Br |
$31.89 |
|
|
| 10 | M-675000041 | Screw |
$1.68 |
|
|
| 11 | M-670005426 | Lh Rear Bracket |
$124.52 |
|
|
| 12 | M-675000487 | Screw Tc/Ie M8X20 Ros.P.Imp. |
$1.47 |
|
|
| 14 | M-675000089 | Washer |
$0.97 |
|
|
| 15 | M-670006145 | Clamp |
$39.09 |
|
