Diagram image not available

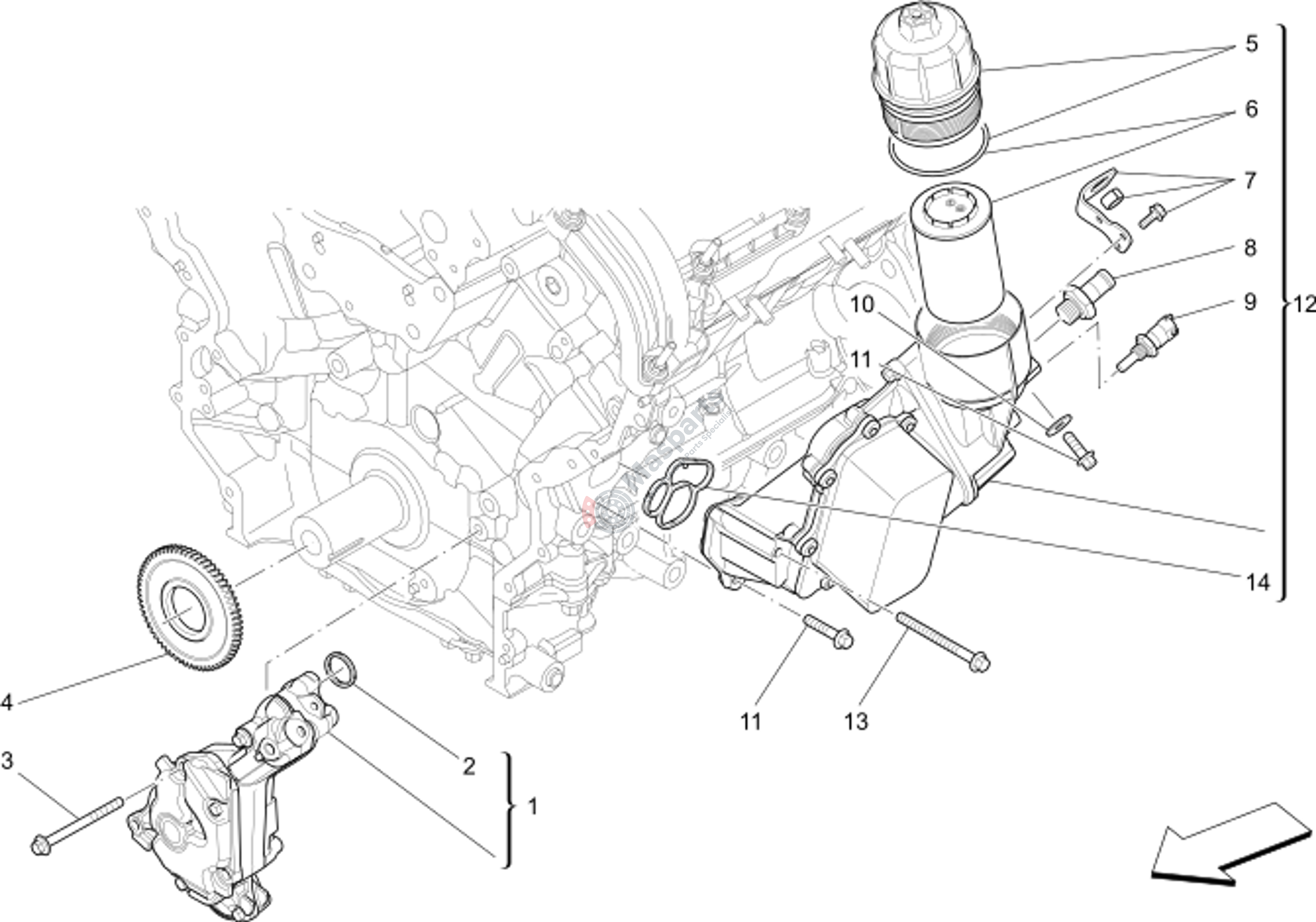

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328116 | Cpl Oil Pump |
$801.02 |
|
|
| 2 | M-673001054 | O.R. Gasket |
$22.03 |
|
|
| 3 | M-46328694 | Flange Bolt |
$2.59 |
|
|
| 4 | M-46328113 | Gear |
$174.18 |
|
|
| 5 | M-673001011 | Filter Oil Cover With O.R. |
$35.11 |
|
|
| 6 | M-673010883 | Oil Filter Diesel |
$59.62 |
|
|
| 7 | M-673003773 | Kit (Bracketscrews And Bushi |
$18.33 |
|
|
| 8 | M-46330288 | Oil Pressure Sensor |
$25.95 |
|
|
| 9 | M-46329958 | Oil Temperature Sensor |
$58.00 |
|
|
| 10 | M-46328656 | Washer |
$2.07 |
|
|
| 11 | M-46328698 | Flange Bolt |
$2.49 |
|
|
| 12 | M-673010882 | Exchanger And Oil Filter |
$774.23 |
|
|
| 13 | M-46328708 | Flange Bolt |
$3.63 |
|
|
| 14 | M-46341783 | Oil Filter Gasket |
$27.65 |
|
