Diagram image not available

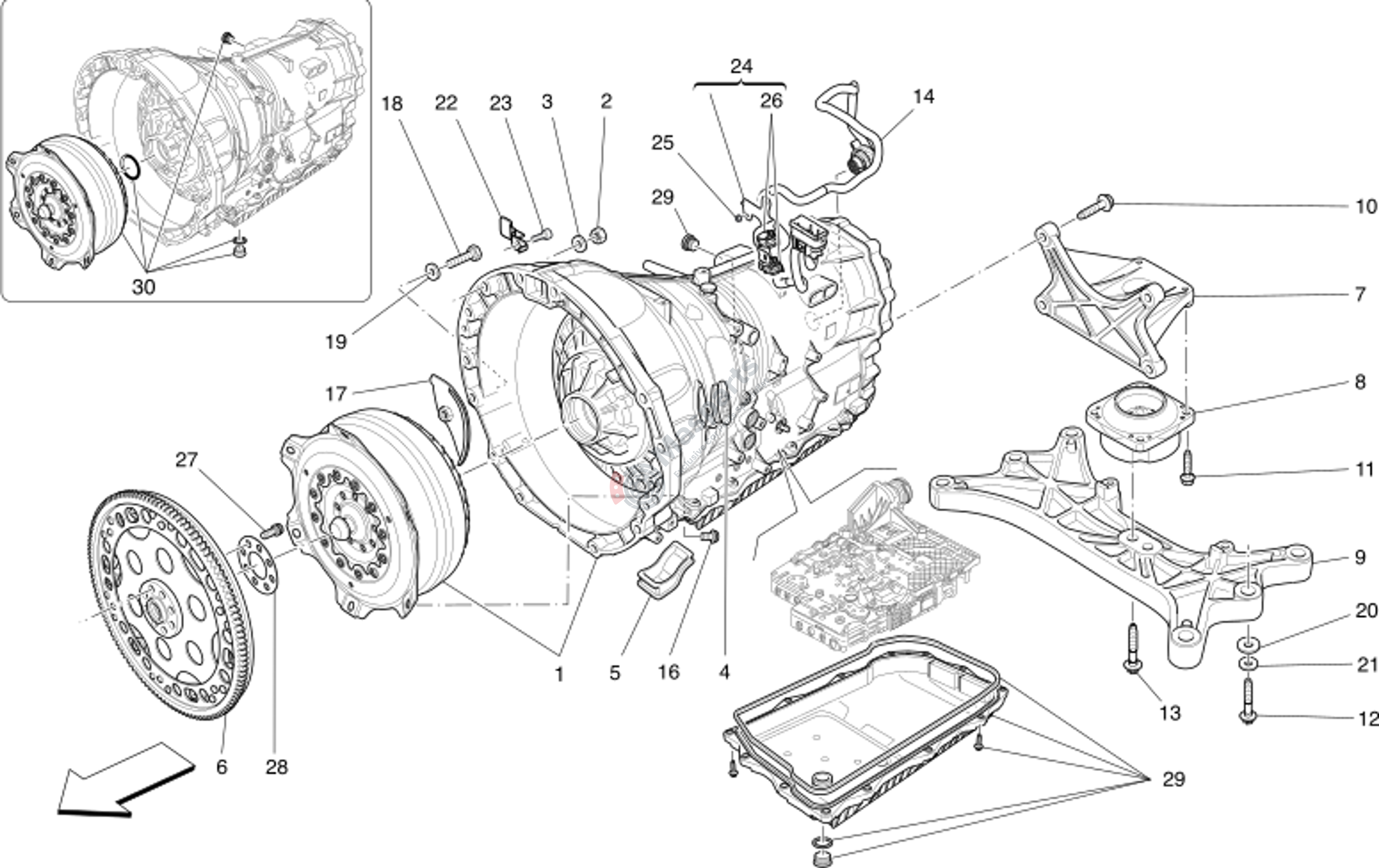

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670155633 | Automatic Transmission Rwd |
$11,412.58 |
|
|
| 2 | M-675000184 | Nut |
$1.71 |
|
|
| 3 | M-675000098 | Washer |
$1.83 |
|
|
| 4 | M-670003520 | Plug |
$4.96 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.00 |
|
|
| 6 | M-673010357 | V6 Gasoline Engine Flywheel |
$798.51 |
|
|
| 7 | M-670038976 | Gearbox Side Engine Mounting |
$119.31 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
$36.48 |
|
|
| 9 | M-670003953 | Gearbox Mounting Cross Membe |
$201.98 |
|
|
| 10 | M-675000120 | Screw |
$2.73 |
|
|
| 11 | M-675000540 | Screw M8X40 |
$1.72 |
|
|
| 12 | M-675000145 | Screw |
$3.91 |
|
|
| 13 | M-675000145 | Screw |
$3.91 |
|
|
| 14 | M-670007400 | Gearbox Cable |
$76.89 |
|
|
| 16 | M-670005384 | Screw |
$2.38 |
|
|
| 17 | M-670003684 | Closing Plate |
$5.49 |
|
|
| 18 | M-675000380 | Screw |
$1.97 |
|
|
| 19 | M-675000378 | Washer |
$1.09 |
|
|
| 20 | M-675000247 | Washer |
$1.59 |
|
|
| 21 | M-675000254 | Washer |
$1.70 |
|
|
| 22 | M-670005079 | Bracket |
$4.39 |
|
|
| 24 | M-670005501 | Cpl Bracket |
$10.97 |
|
|
| 25 | M-675000093 | Nut |
$1.41 |
|
|
| 27 | M-670002932 | Screw |
$5.49 |
|
|
| 28 | M-670002257 | Shim |
$4.42 |
|
|
| 29 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$409.76 |
|
|
| 30 | M-673003836 | Cpl Auto Transmiss. Converte |
$2,164.73 |
|
