Diagram image not available

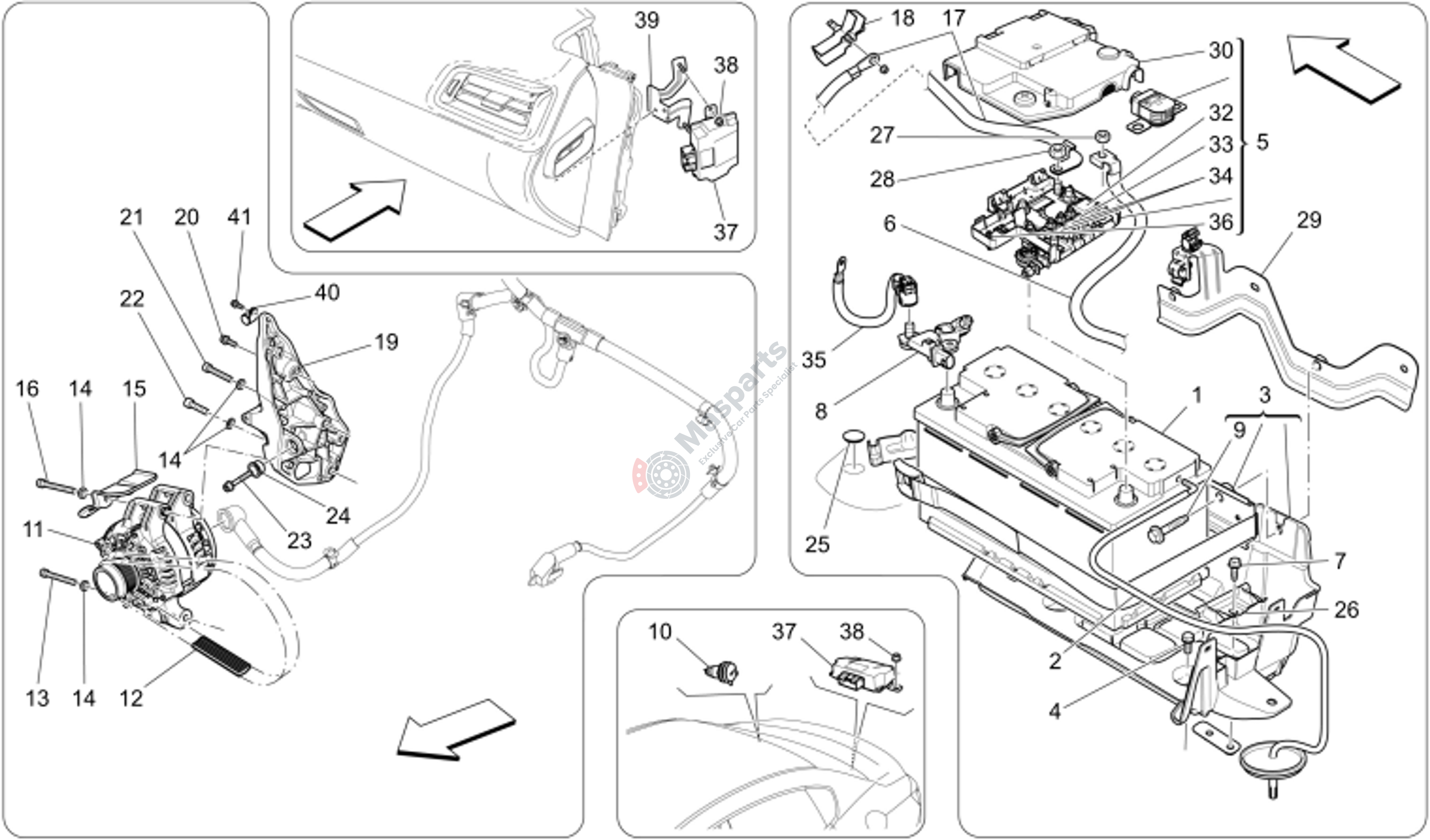

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670008109 | Hose |
$19.79 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$81.84 |
|
|
| 4 | M-675000174 | Screw |
$1.62 |
|
|
| 5 | M-670105054 | Battery Multi-Function Ecu |
$145.21 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$29.79 |
|
|
| 7 | M-675000088 | Screw |
$2.57 |
|
|
| 8 | M-670107365 | Ibs Sensor |
$103.01 |
|
|
| 9 | M-675000214 | Screw |
$24.56 |
|
|
| 11 | M-811433 | Alternator |
$1,063.77 |
|
|
| 12 | M-286570 | Alternator Control Belt |
$39.82 |
|
|
| 13 | M-14359524 | Screw |
$3.69 |
|
|
| 14 | M-11193874 | Washer |
$1.32 |
|
|
| 16 | M-14359524 | Screw |
$3.69 |
|
|
| 17 | M-670037066 | Battery Positive Pole Cable |
$313.83 |
|
|
| 18 | M-675000578 | Connector |
$23.26 |
|
|
| 20 | M-231619 | Socket Head Screw With Washe |
$2.38 |
|
|
| 21 | M-14306924 | Screw |
$2.47 |
|
|
| 22 | M-14306524 | Screw |
$2.03 |
|
|
| 23 | M-231624 | Socket Head Screw With Washe |
$2.74 |
|
|
| 24 | M-248389 | Bushing |
$7.91 |
|
|
| 25 | M-675000244 | Plug |
$0.96 |
|
|
| 26 | M-675000426 | Battery Bracket |
$6.39 |
|
|
| 27 | M-675000439 | Nut |
$3.62 |
|
|
| 28 | M-675000450 | Nut |
$4.44 |
|
|
| 29 | M-670031002 | Battery Compartment Bracket |
$27.77 |
|
|
| 30 | M-675000806 | Fuse Ecu Cover |
$13.16 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.60 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.31 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.19 |
|
|
| 35 | M-670109171 | Battery Negative Pole Cable |
$34.76 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.68 |
|
|
| 37 | M-675000786 | Voltage Stabilizer |
$218.33 |
|
|
| 38 | M-675000095 | Nut |
$0.76 |
|
|
| 39 | M-670007262 | Bracket |
$16.88 |
|
|
| 40 | M-291068 | Bracket |
$2.52 |
|
|
| 41 | M-233600 | Screw |
$2.28 |
|
