Diagram image not available

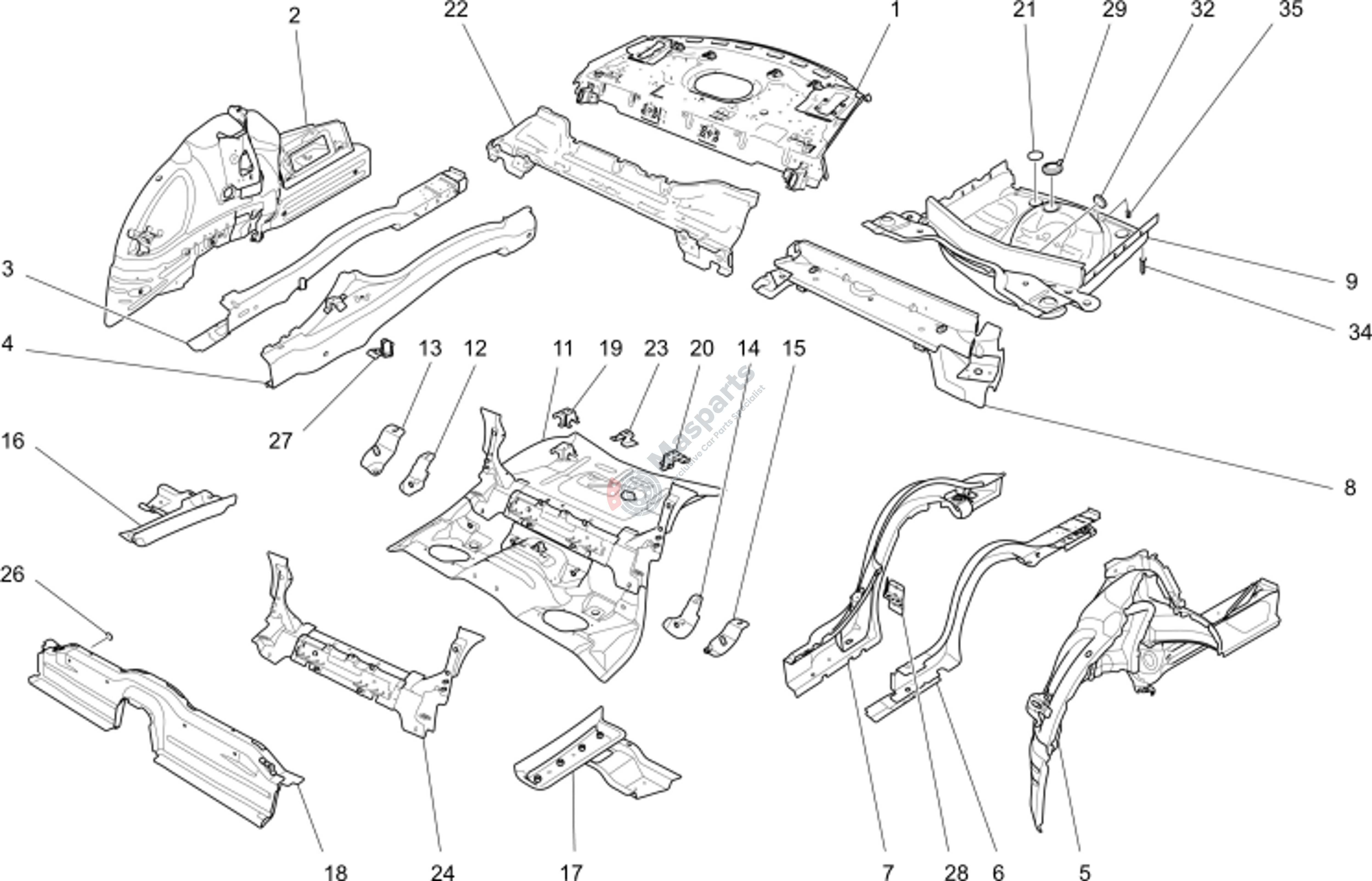

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009302 | Rear Under Window Panel |
$341.84 |
|
|
| 2 | M-673009916 | Cpl Rh Rear Wheel House |
$394.59 |
|
|
| 3 | M-673007578 | Rh Rear Floor Longitudinal M |
$220.04 |
|
|
| 4 | M-673009042 | Rh Outer Rear Side Member ˇ |
$511.20 |
|
|
| 5 | M-673009915 | Cpl Lh Rear Wheel House |
$334.61 |
|
|
| 6 | M-673007577 | Lh Rear Floor Longitudinal M |
$389.80 |
|
|
| 7 | M-673009043 | Lh Outer Rear Side Member ˇ |
$445.76 |
|
|
| 8 | M-673010187 | Complete Rear Cross Member |
$233.31 |
|
|
| 9 | M-673009295 | Spare Wheel Compartment |
$651.85 |
|
|
| 11 | M-673005385 | Rear Floor |
$252.53 |
|
|
| 12 | M-673000380 | Rh Rear Seat Belt Fastening |
$285.48 |
|
|
| 13 | M-673000419 | Rh Rear Seat Fastening Reinf |
$247.54 |
|
|
| 14 | M-673000381 | Lh Rear Seat Belt Fastening |
$249.44 |
|
|
| 15 | M-673000420 | Lh Rear Seat Fastening Reinf |
$247.54 |
|
|
| 16 | M-673000379 | Rh Small Side Member Gearshi |
$68.90 |
|
|
| 17 | M-673009048 | Lh Small Side Member Gearshi |
$72.08 |
|
|
| 18 | M-673000790 | Rear Underseat Cross Member |
$151.75 |
|
|
| 19 | M-673000436 | Rh Luggage Net Fastening Rei |
$36.97 |
|
|
| 20 | M-673000437 | Lh Luggage Net Fastening Rei |
$23.92 |
|
|
| 21 | M-670005954 | Plug |
$4.40 |
|
|
| 22 | M-673000407 | Cpl Rear Seat Back Cross Mem |
$123.30 |
|
|
| 23 | M-673001060 | Rear Seats Cushion Support B |
$25.60 |
|
|
| 24 | M-673001059 | Isofix Crossmember |
$269.35 |
|
|
| 26 | M-675000244 | Plug |
$0.96 |
|
|
| 27 | M-670007021 | Bracket |
$500.95 |
|
|
| 28 | M-670007023 | Bracket |
$500.95 |
|
|
| 29 | M-670030797 | Wheel Compartment Cap |
$9.93 |
|
|
| 32 | M-675000518 | Cap 70 Mm (Diam.) |
$3.58 |
|
|
| 34 | M-675000624 | Specila Screw |
$1.66 |
|
|
| 35 | M-675000715 | Nutserts |
$1.66 |
|
