Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

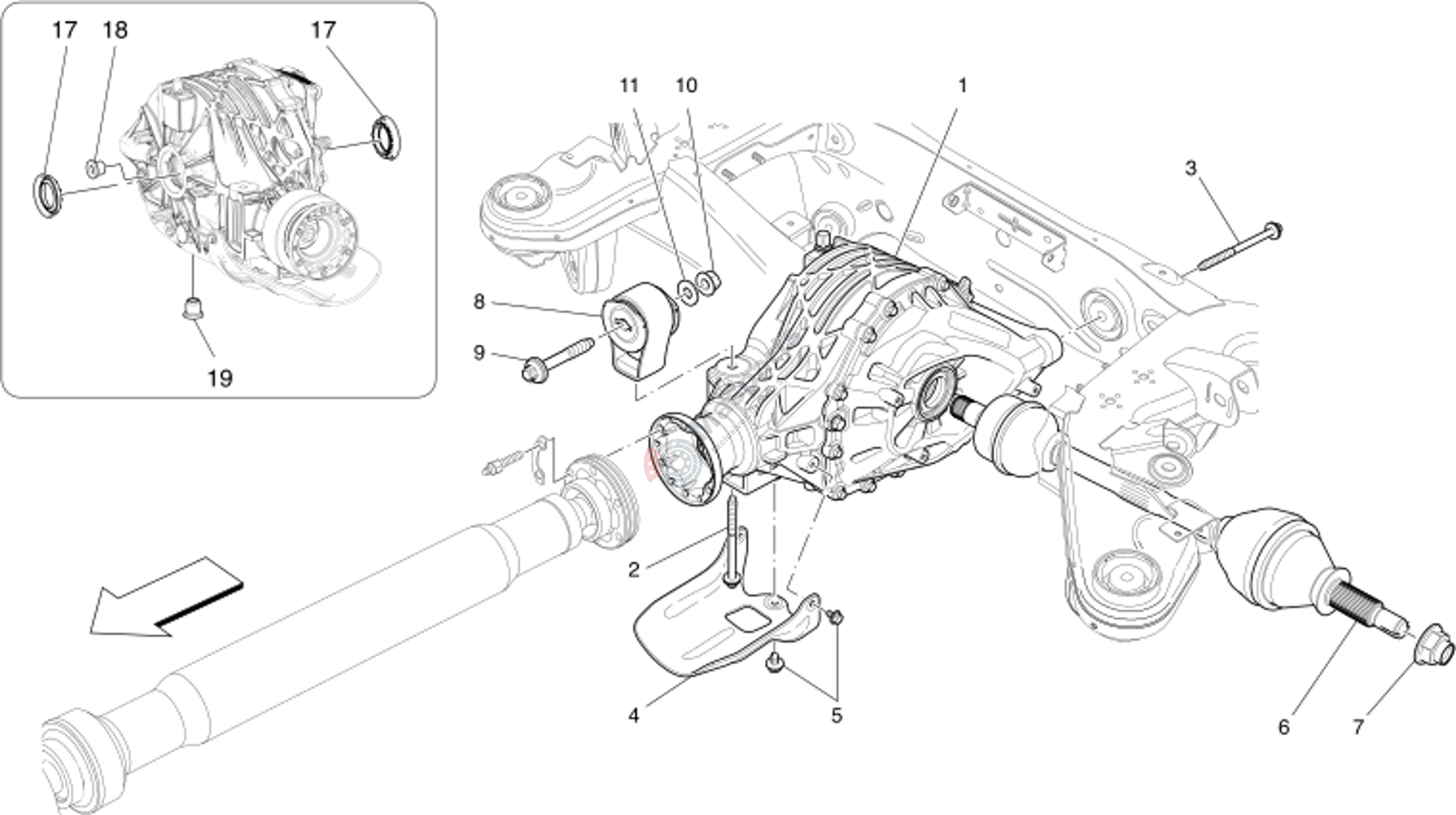

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670039125 | Rear Differential (V6) |
$1,855.38 |
|
|
| 2 | M-670003760 | Screw With Washer |
$8.50 |
|
|
| 3 | M-670003988 | Screw |
$11.85 |
|
|
| 5 | M-675000102 | Screw |
$2.59 |
|
|
| 6 | M-670104208 | Right Halfshaft Assy |
$648.35 |
|
|
| 7 | M-675000138 | Nut |
$8.75 |
|
|
| 8 | M-670003304 | Rubber Bushing Cross Member |
$100.40 |
|
|
| 9 | M-670005735 | Screw With Washer |
$11.85 |
|
|
| 10 | M-675000148 | Nut |
$2.45 |
|
|
| 11 | M-675000115 | Washer |
$3.59 |
|
|
| 17 | M-673014536 | Output Seal |
$28.66 |
|
|
| 18 | M-673014534 | Fill Plug |
$14.02 |
|
|
| 19 | M-673014535 | Drain Plug |
$17.62 |
|
