Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

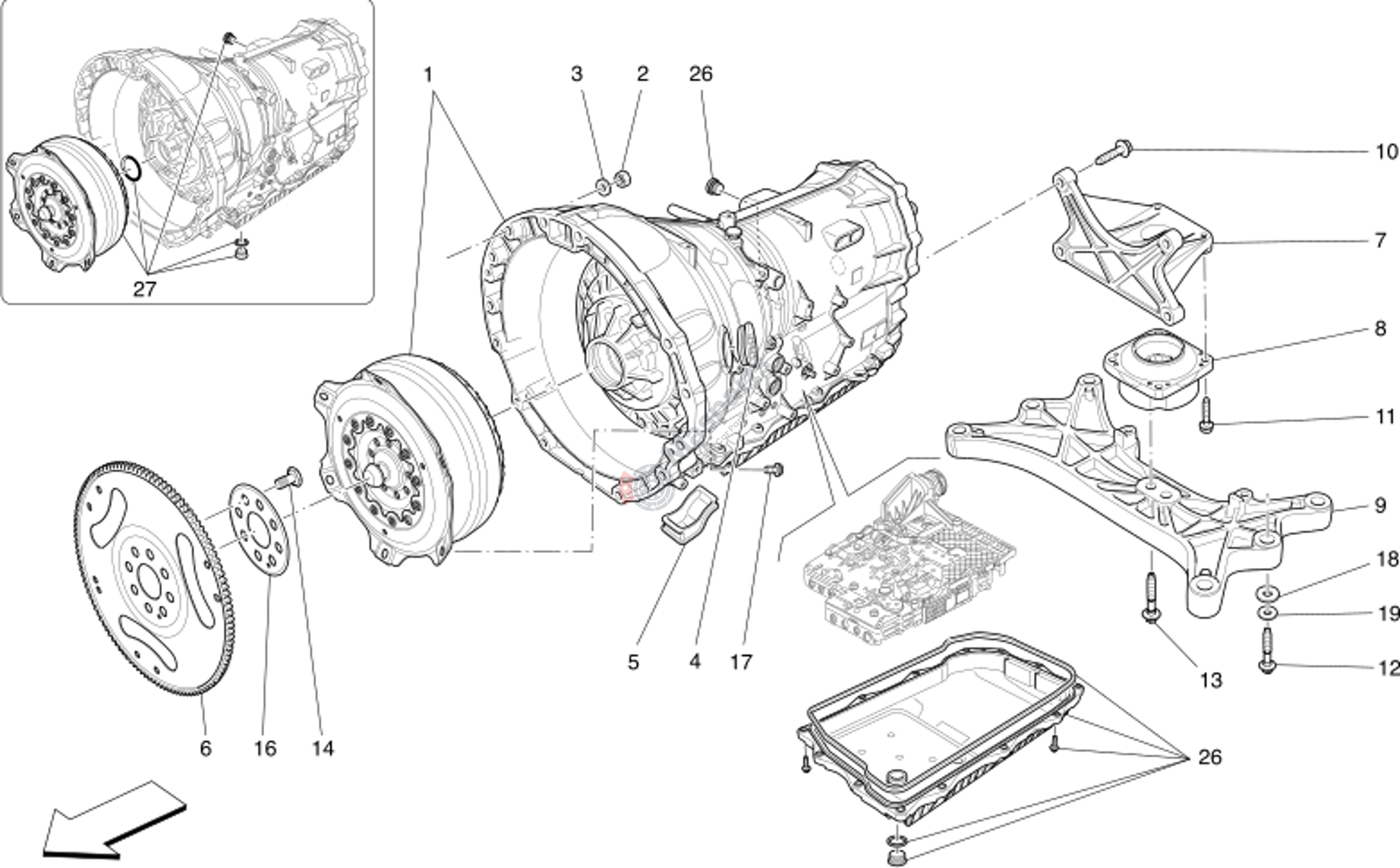

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670005089 | Cpl Automatic Transmission D |
$8,619.01 |
|
|
| 2 | M-675000184 | Nut |
$1.74 |
|
|
| 3 | M-675000098 | Washer |
$1.86 |
|
|
| 4 | M-670003520 | Plug |
$5.03 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.06 |
|
|
| 7 | M-670004299 | Gearbox Mounting Bracket |
$98.04 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
$36.96 |
|
|
| 9 | M-670001738 | Gearbox Mounting Cross Membe |
$233.20 |
|
|
| 10 | M-675000252 | Screw |
$5.10 |
|
|
| 11 | M-675000540 | Screw M8X40 |
$1.75 |
|
|
| 12 | M-675000145 | Screw |
$3.96 |
|
|
| 13 | M-675000145 | Screw |
$3.96 |
|
|
| 14 | M-46328377 | Flex Plate Screw |
$3.40 |
|
|
| 17 | M-675000338 | Screw |
$2.28 |
|
|
| 18 | M-675000247 | Washer |
$1.61 |
|
|
| 19 | M-675000254 | Washer |
$1.72 |
|
|
| 26 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$415.18 |
|
|
| 27 | M-673003837 | Cpl Auto Transmiss. Converte |
$2,222.18 |
|
