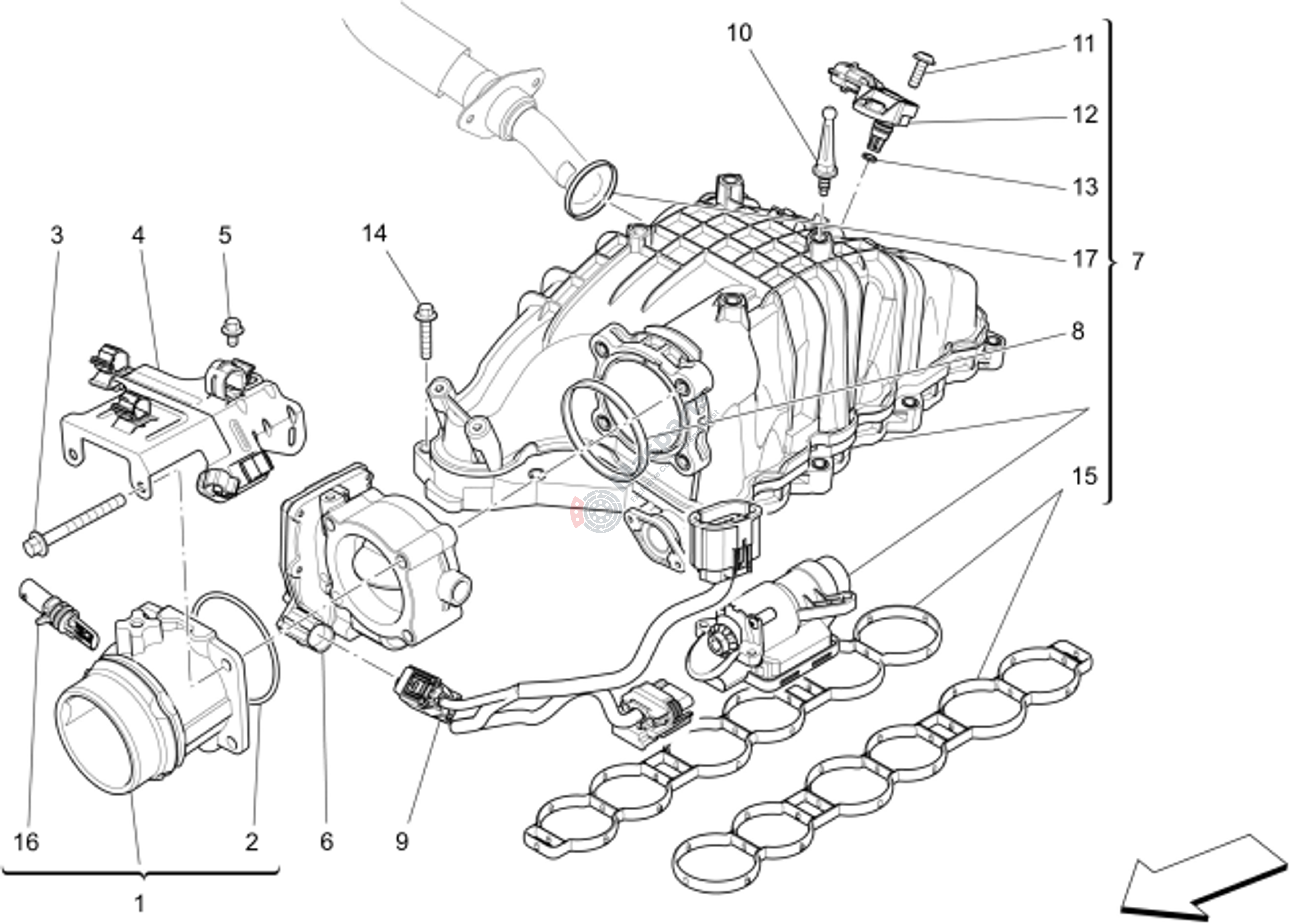

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46330307 | Intake Manifold |
$123.90 |
|
|
| 2 | M-46329764 | Manifold Seal |
$140.30 |
|
|
| 3 | M-46328693 | Flange Bolt |
$2.48 |
|
|
| 4 | M-46328247 | Bracket |
$28.17 |
|
|
| 5 | M-46328683 | Flange Bolt |
$1.13 |
|
|
| 6 | M-46333962 | Throttle Body |
$517.54 |
|
|
| 7 | M-46344525 | Intake Manifold Assembly |
$1,282.88 |
|
|
| 8 | M-673001043 | Gasket |
$48.08 |
|
|
| 9 | M-46342244 | Throttle Cable |
$96.05 |
|
|
| 10 | M-46328350 | Ball Pin |
$9.28 |
|
|
| 12 | M-46330273 | Air Termperature And Pressur |
$108.00 |
|
|
| 13 | M-673001052 | O.R. Gasket |
$1.09 |
|
|
| 14 | M-46328688 | Flange Bolt |
$2.99 |
|
|
| 15 | M-673001014 | Gasket Kit |
$239.33 |
|
|
| 16 | M-46328246 | Air Temperature Sensor |
$46.29 |
|
|
| 17 | M-673001044 | Gasket |
$7.88 |
|
