Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

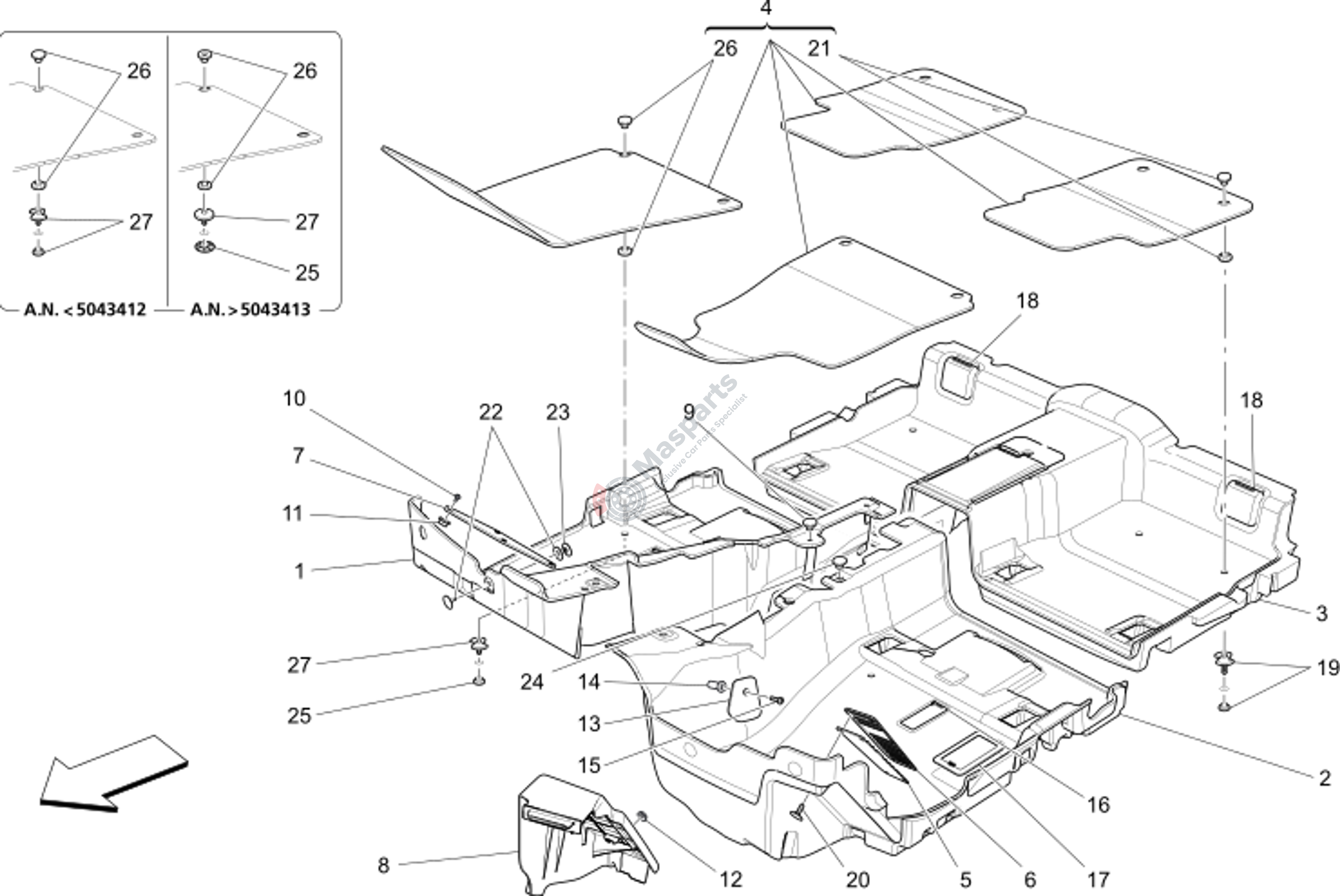

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 5 | M-673000076 | Plastic Driver Foot-Rest Lhd |
€77,01 |
|
|
| 6 | M-673000077 | Metal Driver Foot-Rest Lhd |
€96,90 |
|
|
| 8 | M-675000268 | Footrest Driver Side |
€14,11 |
|
|
| 10 | M-675001959 | Screw |
€1,32 |
|
|
| 11 | M-675000408 | Fastening Block |
€1,88 |
|
|
| 12 | M-675000324 | Special Nut |
€1,08 |
|
|
| 13 | M-670014815 | Aesthetic Plate Under Front |
€50,05 |
|
|
| 14 | M-670006658 | Plate Under-Carpet Fastening |
€8,00 |
|
|
| 15 | M-670009563 | Screw |
€8,10 |
|
|
| 19 | M-673002372 | Fastening Pin For Carpets |
€5,24 |
|
|
| 20 | M-673003269 | Dead-Pedal Fastening |
€66,33 |
|
|
| 22 | M-673002366 | Screw + Washer (Front Carpet |
€4,28 |
|
|
| 23 | M-670006409 | Fastening Clip |
€1,46 |
|
|
| 25 | M-673005698 | Carpet Fixing Element |
€2,50 |
|
