Diagram image not available

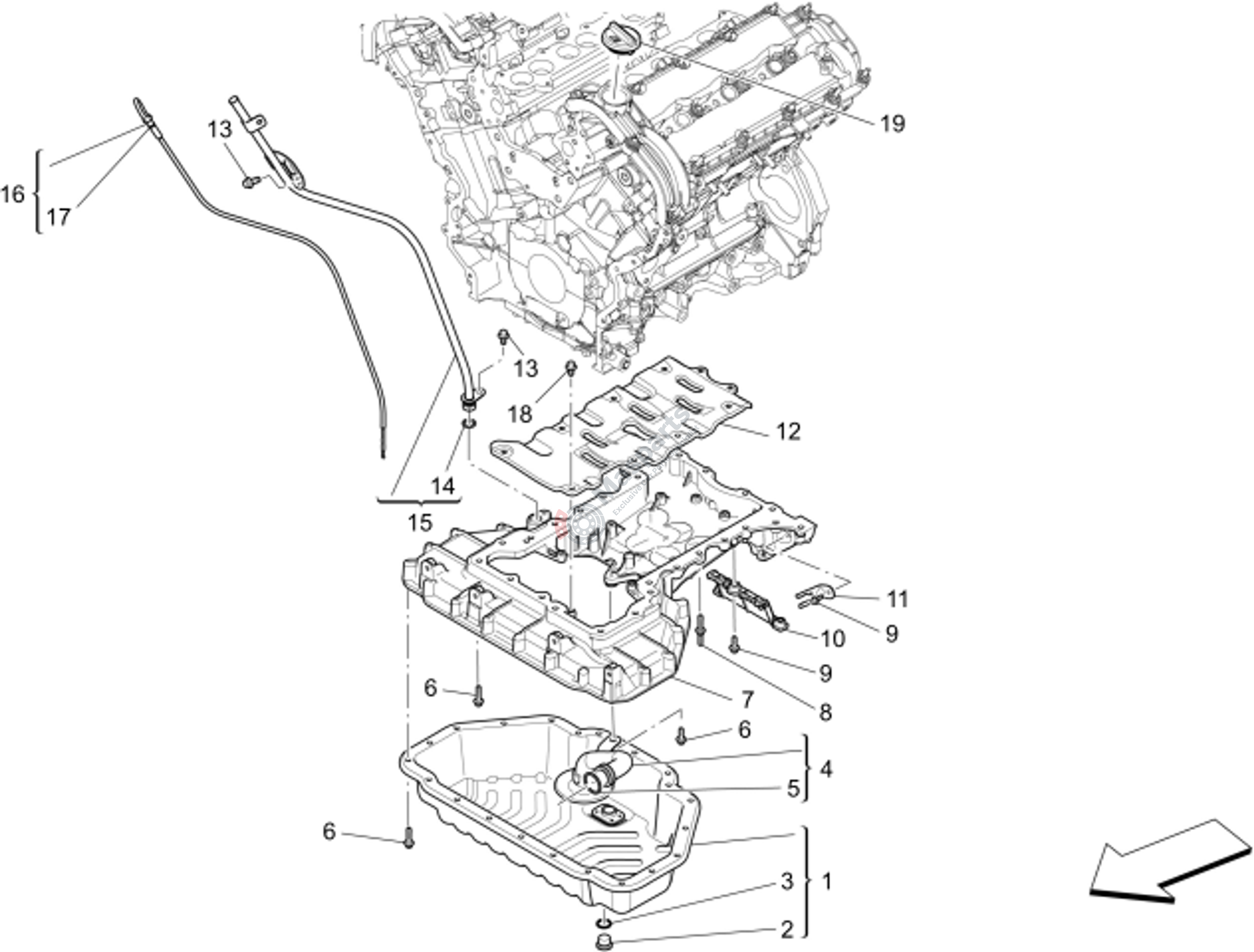

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46333793 | Lower Oil Sump |
$232.78 |
|
|
| 2 | M-46328671 | Plug |
$5.85 |
|
|
| 3 | M-46328660 | Gasket |
$1.28 |
|
|
| 4 | M-46337151 | Cpl Oil Delivery Tube |
$156.17 |
|
|
| 5 | M-46328352 | O.R. Gasket |
$6.17 |
|
|
| 6 | M-46328687 | Flange Bolt |
$2.23 |
|
|
| 7 | M-46336594 | Upper Oil Sump |
$576.54 |
|
|
| 9 | M-46328681 | Flange Bolt |
$2.66 |
|
|
| 10 | M-46328172 | Cover |
$24.13 |
|
|
| 11 | M-46328173 | Bracket |
$11.48 |
|
|
| 13 | M-46328683 | Flange Bolt |
$1.17 |
|
|
| 14 | M-46328364 | O.R. Gasket |
$1.91 |
|
|
| 15 | M-46335458 | Oil Level Rod Tube |
$92.82 |
|
|
| 16 | M-46328319 | Oil Level Dipstick |
$22.10 |
|
|
| 17 | M-46328365 | O.R. Gasket |
$0.96 |
|
|
| 18 | M-46328683 | Flange Bolt |
$1.17 |
|
