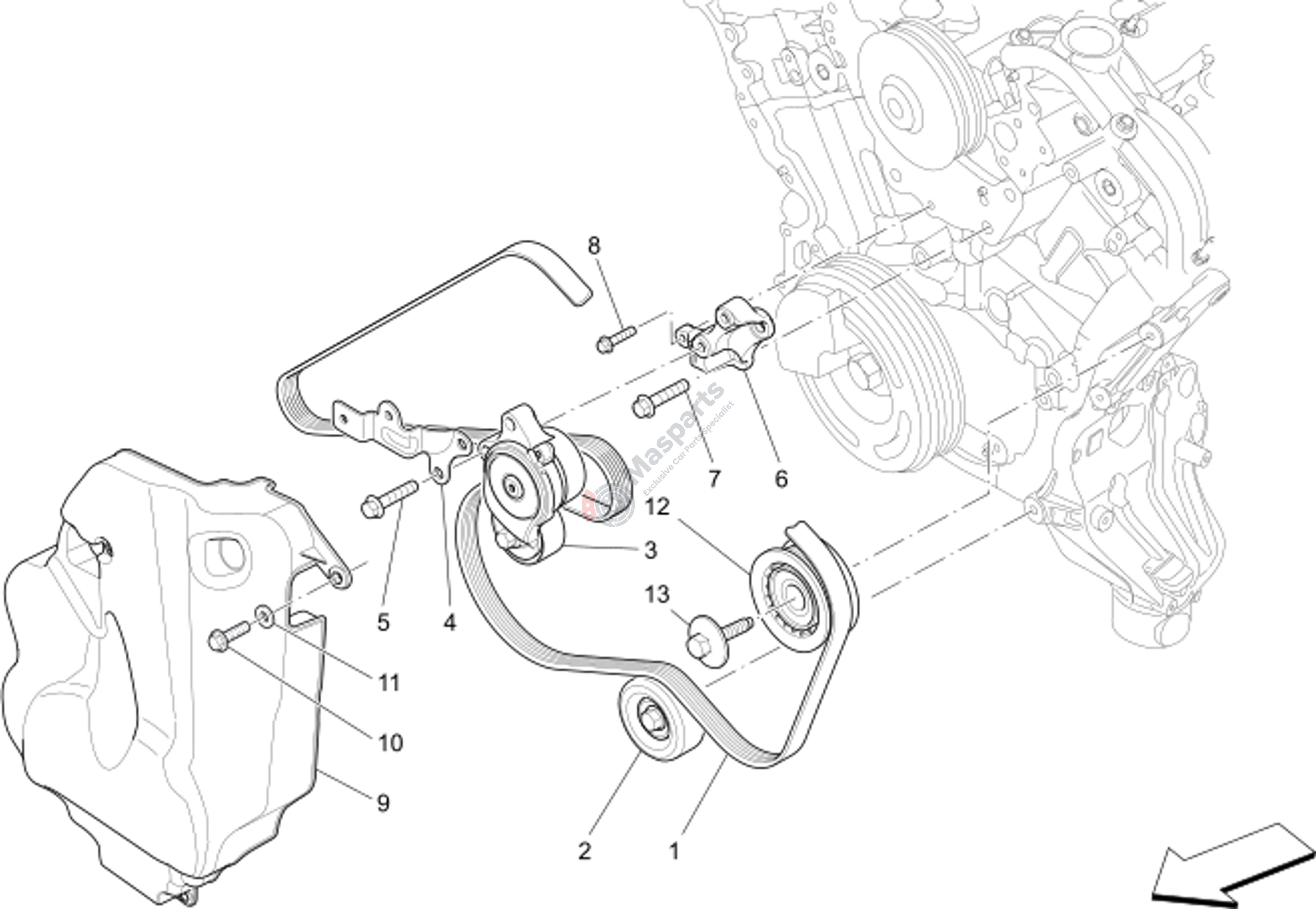

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46335431 | Belt |
$64.10 |
|
|
| 2 | M-46328756 | Belt Tensioner Pulley |
$109.30 |
|
|
| 3 | M-46330311 | Belt Tensioner |
$119.34 |
|
|
| 4 | M-46334927 | Bracket |
$7.52 |
|
|
| 5 | M-46328718 | Flange Bolt |
$3.35 |
|
|
| 6 | M-46328519 | Tensioner Bracket |
$69.09 |
|
|
| 7 | M-46328718 | Flange Bolt |
$3.35 |
|
|
| 8 | M-46328691 | Flange Bolt |
$2.94 |
|
|
| 9 | M-670009058 | Soundproof Guard |
$86.87 |
|
|
| 11 | M-675000391 | Washer |
$1.89 |
|
|
| 12 | M-675000749 | Pulley |
$83.83 |
|
|
| 13 | M-675000750 | Pulley Fastening |
$14.28 |
|
