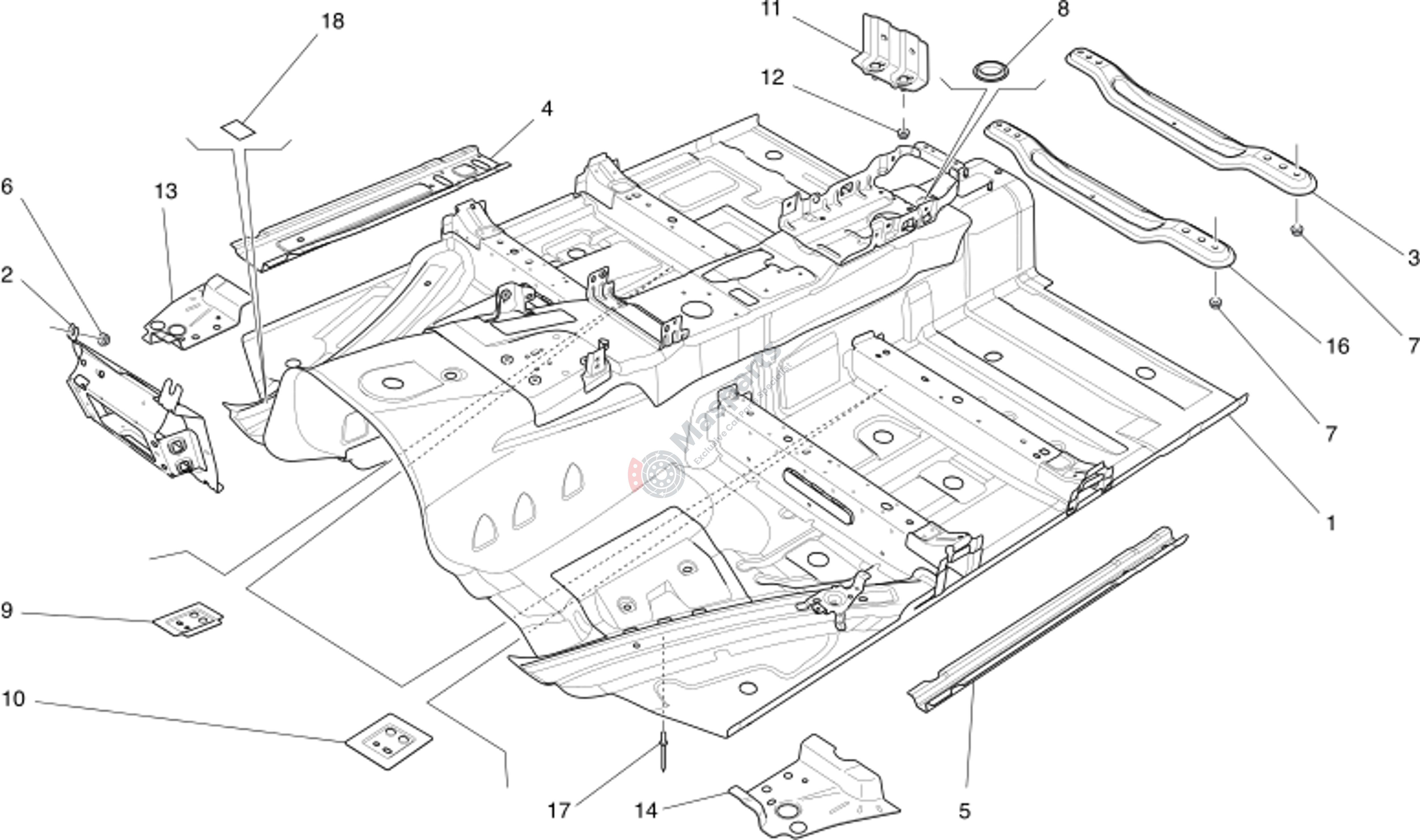

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006044 | Complete Front Floor 4X2 M15 |
$2,250.40 |
|
|
| 2 | M-670039535 | Body Computer Support Bracke |
$53.65 |
|
|
| 3 | M-670006640 | Underfloor Tunnel Rear Reinf |
$89.80 |
|
|
| 4 | M-673001720 | Rh Underfloor Small Side Mem |
$59.44 |
|
|
| 5 | M-673001721 | Lh Underfloor Small Side Mem |
$47.28 |
|
|
| 6 | M-675000412 | Hex Nut |
$1.24 |
|
|
| 8 | M-670006214 | Sticker Cap |
$2.48 |
|
|
| 9 | M-670003751 | Rh Plate |
$51.14 |
|
|
| 10 | M-670003900 | Lh Plate |
$51.45 |
|
|
| 11 | M-673004077 | Underfloor Bracket Rear Tunn |
$192.29 |
|
|
| 13 | M-670031919 | Reinforcement Dx |
$14.49 |
|
|
| 14 | M-670031920 | Reinforcement Dx |
$14.49 |
|
|
| 16 | M-670006640 | Underfloor Tunnel Rear Reinf |
$89.80 |
|
|
| 17 | M-670037283 | Rivet |
$5.01 |
|
|
| 18 | M-675000789 | Protective Film |
$2.86 |
|
